GlassProtect User manual
Updated October 18, 2019

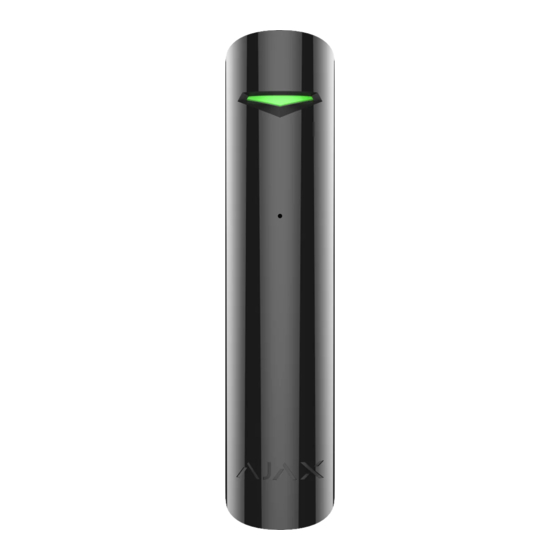

GlassProtect is a wireless detector detecting glass break at a distance up
to 9 meters. It is used inside premises, can operate up to 7 years from a
pre-installed battery and is furnished with a socket for connecting an
additional detector.
GlassProtect operates within the Ajax security system, by connecting via
the protected
protocol to the
. Communication range – up to
Jeweller
hub
1,000 m, absent any obstacles. In addition, the detector can be used as
part of third-party security central units due to the
or
uartBridge
ocBridge
integration module.
Plus
The detector is set up via a
for iOS and Android-based
mobile application
smartphones. The user is notified of all events through push notifications,
SMS messages and calls (if activated).
The Ajax security system is self-sustaining, but the user can connect it to
the central monitoring station of a private security company.
Buy breakage detector GlassProtect
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AJAX GlassProtect
Summary of Contents for AJAX GlassProtect
- Page 1 GlassProtect User manual Updated October 18, 2019 GlassProtect is a wireless detector detecting glass break at a distance up to 9 meters. It is used inside premises, can operate up to 7 years from a pre-installed battery and is furnished with a socket for connecting an additional detector.
-
Page 2: Functional Elements
Functional elements 1. Light indicator 2. Microphone hole 3. SmartBracket attachment panel (perforated part is required for actuating the tamper in case of any attempt to tear off the detector from the surface. Don’t break it off!) 4. External detector connection socket 5. - Page 3 GlassProtect detector will not react to breaking if a film has been applied the glass: shockproof, sunscreen, decorative or other. In order to detect the breaking of this type glass, we recommend using a DoorProtect Plus wireless opening detector with shock and tilt sensor.
- Page 4 How to connect the GlassProtect to the hub: 1. Select the Add Device option in the Ajax application. 2. Name the device, scan/write manually the QR Code (located on the body and packaging), and select the location room. 3. Select Add — the countdown will begin.Switch on the device.
- Page 5 Request for connection to the hub is transmitted for a short time at the time of switching on the device. If the connection to the Ajax hub failed (LED blinks once per second), switch off the detector for 5 seconds and repeat the attempt. The detector connected to the hub will appear in the list of devices of the hub in the application.
- Page 7 Connection status between the hub and the Connection detector Sensitivity Sensitivity level of the sensor Status of the external detector connected to Secondary detector GlassProtect If active, the detector is always in the armed Always Active mode Firmware Detector firmware version Device ID...
-
Page 8: Setting Up The Detector
Setting Up the Detector 1. Devices 2. GlassProtect 3. Settings... - Page 9 Setting Value First field Detector name, can be edited Room Selecting the virtual room to which the device is assigned Choosing the sensitivity level of glass break detector: High Sensitivity Normal External contact enabled If active, the detector registers external detector alarms Always active If active, the detector always registers glass breakage Selecting delay time when entering.
-
Page 10: Functionality Testing
Battery Replacement paragraph Functionality testing The Ajax security system allows conducting tests for checking the functionality of connected devices. The tests do not start straight away but within a period of 36 seconds when using the standard settings. The test time start depends on the settings of the detector scanning period (the paragraph on “Jeweller”... - Page 11 Switch on/off all the equipment usually operating within the room: generators, air conditioning units, etc. If the detector is actuated, it means that too high sensitivity is set or the location of the GlassProtect needs to be changed. Use the sensitivity level, at which the detector properly passes both test stages and does not respond to any equipment operating within the room.
-
Page 12: Installing The Device
6. closer than 1 m from the hub. The GlassProtect detector detects glass break at a distance up to 9 meters. Its microphone should be positioned at the angle no more than 90 degrees relative to the window(s). - Page 13 If the light indicator of the detector is not actuated after installation in SmartBracket, check the status of the tamper in the Ajax Security System application and then the fixing tightness of the panel.
- Page 14 Connecting a Wire Detector A wire detector with an NC type contact may be connected to the GlassProtect using an outside-mounted terminal clamp. We recommend to install the wire detector at a distance not exceeding 1 meter – increasing the wire length will increase the risk of its damage and reduce the quality of communication between the detectors.
-
Page 15: Tech Specs
Detector Maintenance and Battery Replacement Check the operational capability of the GlassProtect detector on a regular basis. Clean the detector body from dust, spider web and other contaminations as they appear. Use soft dry napkin suitable for equipment maintenance. Do not use for cleaning the detector any substances containing alcohol, acetone, gasoline and... -
Page 16: Complete Set
5. Installation kit 6. Quick Start Guide Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery. If the device does not work correctly, you should first contact the support service —... - Page 17 Technical support: support@ajax.systems...
