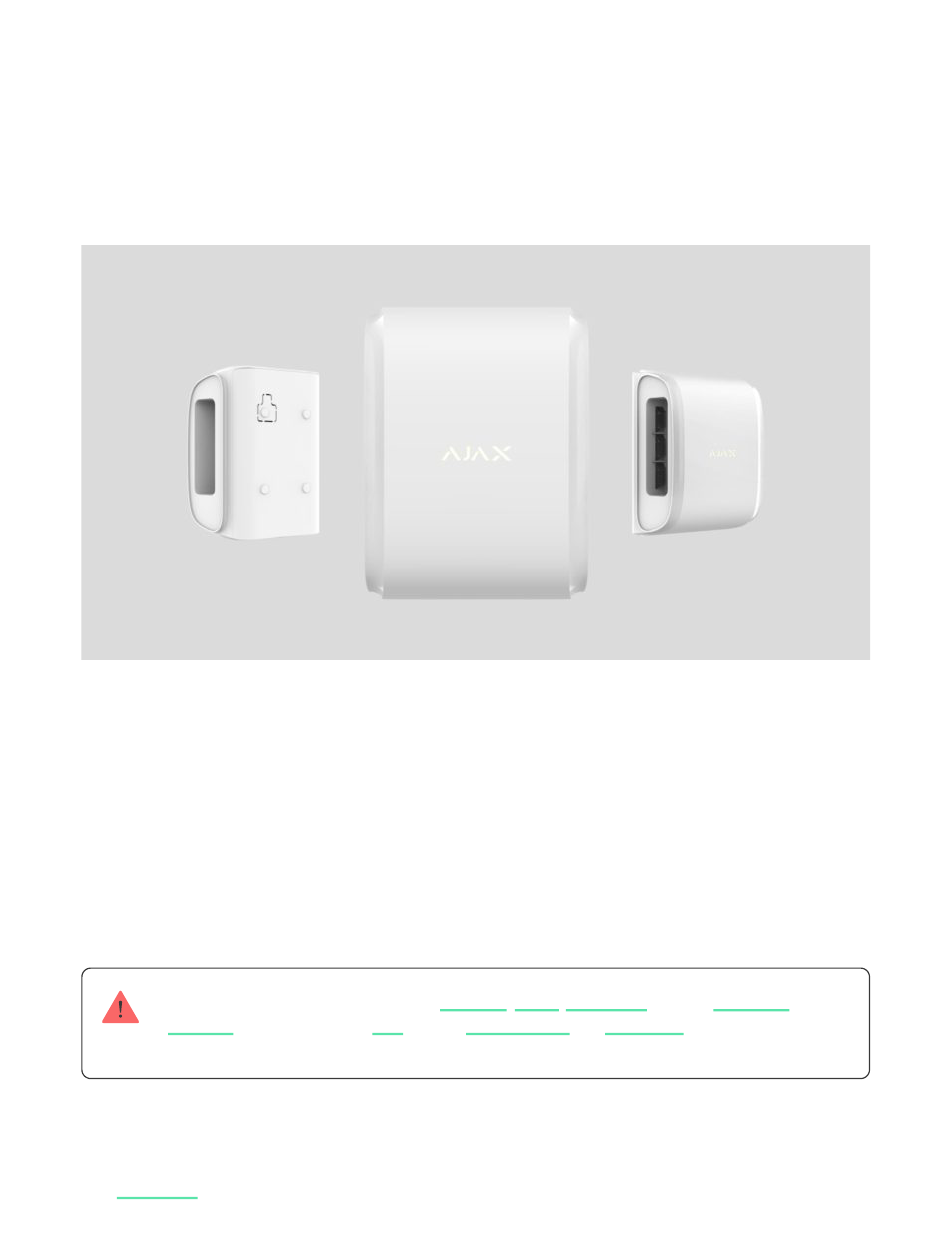

DualCurtain Outdoor User Manual

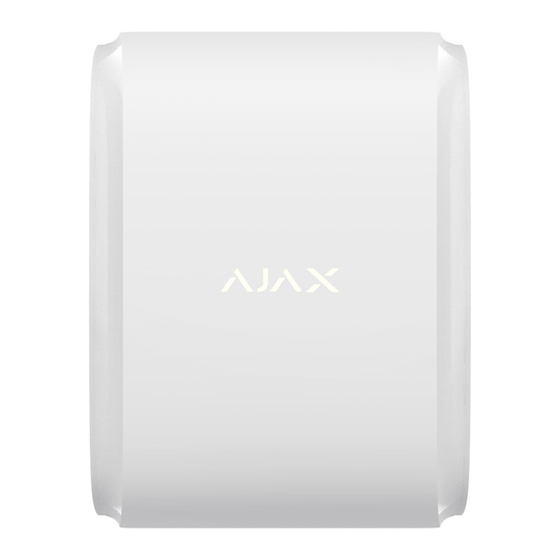

DualCurtain Outdoor is a wireless bidirectional outdoor curtain motion detector
with an adjustable detection range of up to 30 meters. The detector features an
anti-masking system and ignores pets if set up and installed correctly.
DualCurtain Outdoor has a narrow horizontal detection angle and is designed to
control property perimeter and passages: windows, archways, doors, gates.
The detector is compatible only with
extender
. Connectivity with
is not supported!
DualCurtain Outdoor operates as part of an Ajax security system by connecting via
the
Jeweller
secure radio communication protocol. The communication range with
a hub in the line of sight is up to 1,700 meters.
Updated October 22, 2021
Hub Plus Hub 2 Hub 2 Plus
,
Hub
and the
ocBridge Plus
,
, and the
ReX range
and
uartBridge
integration modules

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DualCurtain Outdoor and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX DualCurtain Outdoor

Summary of Contents for AJAX DualCurtain Outdoor

  • Page 1 DualCurtain Outdoor operates as part of an Ajax security system by connecting via Jeweller secure radio communication protocol. The communication range with a hub in the line of sight is up to 1,700 meters.

  • Page 2: Functional Elements

    Buy DualCurtain Outdoor Functional elements Exterior 1. LED indicator in the form of Ajax logo 2. Left-side detector lens 3. Left-side masking sensors 4. Right-side detector lens 5. Right-side masking sensors 6. SmartBracket mounting panel (slide the panel down to detach it) The perforated part is necessary to trigger a tamper if there is an attempt to tear off the detector from the surface.
  • Page 3 Controls Control and adjustment elements are located on the back of the detector. 1. Tamper button 2. Power button 3. QR code to connect to an Ajax security system Controls for the left side of the detector...
  • Page 4 1. Near area detection switch 2. Beam direction switch 3. Scrollbar for adjusting the Detection distance Adjustment elements for the right side of the detector 1. Near area detection switch 2. Beam direction switch...

  • Page 5: Operating Principle

    When armed, the detector continuously processes the sensor signals. When motion is detected, DualCurtain Outdoor transmits an alert to a hub and alarms by ashing the logo (if the indication is on). Motion is detected only if both IR sensors on the same side are triggered.

  • Page 6: Pet Immunity

    Pet immunity When set up and installed correctly, DualCurtain Outdoor ignores pets up to 80 centimeters tall. The detector is equipped with four IR sensors (two on each side). DualCurtain Outdoor only activates an alarm when motion is detected by both...
  • Page 7 If installed correctly, animals will trigger only one of the detector’s sensors. In such a way, DualCurtain Outdoor lters false alarms. For additional protection against false alarms, the detector applies ELSA, an advanced software algorithm Why motion detectors react to animals and how to avoid it...
  • Page 8 Protection against false triggerings To lter false alarms, DualCurtain Outdoor applies ELSA (Extended Live Signal Analysis) — a three-stage software algorithm that analyzes the signals received from two narrow-angle IR sensors of the same optical system. 1. Form analysis The shapes of both IR sensor signals should indicate the crossing of the secured zone.
  • Page 9 The blind spot creates a potential vulnerability in the security system. DualCurtain Outdoor uses a technology extending the detection area that is unique among outdoor curtain detectors to. When the Near area detection is activated, the upper IR sensor of the detector receives an additional narrow sector of view, directed at the angle of 40 degrees downward.

  • Page 10: Adding To The System

    2. Make sure that the hub is on and has access to the Internet (via Ethernet cable, Wi-Fi, and/or mobile network). You can do this in the Ajax app or by checking the hub logo on the faceplate. The logo should light up white or green if the hub is connected to the network.
  • Page 11 DualCurtain Outdoor works only with one Ajax hub. When connected to a new hub, the detector stops sending commands to the old one. Once added to a new hub, DualCurtain Outdoor is not removed from the device list of the old hub. This must be done in the Ajax app.
  • Page 12 What do icons mean in Ajax mobile apps States The states screen includes information about the device and its operating parameters. The states of DualCurtain Outdoor can be found in the Ajax app: 1. Go to the Devices tab. 2. Choose DualCurtain Outdoor in the list.
  • Page 13 O ine — no connection to the detector The battery charge level of the device. Two states are available: Battery low When the batteries are discharged, the Ajax apps and the security company will receive appropriate Battery charge noti cations.
  • Page 14 By number of alarms — the device is automatically disabled when the number of alarms is exceeded (speci ed in the settings for Devices Auto Deactivation). The feature is con gured in the Ajax PRO app Learn more...
  • Page 15 Left side Indicates whether the left side of the device is on. Active The states of the left side (below) will be available if the side is active Sensitivity level of the left side of the motion detector: Sensitivity Medium High When enabled, the left side of the detector is constantly armed and detects motion...
  • Page 16 Number of the device loop (zone) Settings Note that only part of the detector parameters can be con gured in the Ajax app. Detection distance, horizontal viewing angle shift, and near zone detection are adjustable with switches on the detector body To change the detector settings in the Ajax app: 1.
  • Page 17 Settings Value Detector name. Displayed in the list of hub devices, SMS text, and noti cations in the event feed. To change the detector name, click on the pencil First eld icon The name can contain up to 12 Cyrillic characters or up to 24 Latin characters Selecting the virtual room to which DualCurtain Outdoor is assigned.
  • Page 18 Night mode What is Night mode Allows you to disable the ashing of the Ajax logo Alarm LED indication on the detector in case of an alarm, tamper triggering or masking detection Accessing the settings menu of the right and left...
  • Page 19 5, the sensitivity can be increased When enabled, the right side of the detector is constantly armed and detects motion Always active Learn more When enabled, DualCurtain Outdoor will detect masking on the right side of the detector Anti-masking Learn more sirens...
  • Page 20 Attenuation Test connection between the detector and the hub (or ReX range extender) What is Attenuation Test Opens the DualCurtain Outdoor User Manual in User Manual the Ajax app Temporary deactivation Allows the user to disable the device without removing it from the system.
  • Page 21 Unpairs the detector, disconnects it from the hub, Unpair Device and deletes its settings Indication The DualCurtain Outdoor LED indicator can light red or green, depending on the state of the detector. Indication upon pressing the power button Indication Event...

  • Page 22: Functionality Testing

    The Ajax security system has several tests for choosing the right installation location for the devices. The DualCurtain Outdoor tests do not start straight away but not later than over a single hub-detector ping period (36 seconds with the standard settings of the hub).
  • Page 23 DualCurtain Outdoor is suitable for the protection of the area around the secured site. It allows to guard the perimeter, leaving space for free movement inside. The detector can be installed both outdoors and indoors. DualCurtain Outdoor can protect: Entrance doors...

  • Page 24: Signal Strength

    Signal strength Install DualCurtain Outdoor in a place with stable Jeweller signal strength (2–3 bars in the Ajax app). When selecting the place for installation, consider the distance between the detector and the hub or ReX range extender and the presence of obstacles between the devices that block the radio signal: walls, oors, large objects located in the room.

  • Page 25: Detection Zone

    ReX radio signal range extender Detection zone DualCurtain Outdoor includes two opposing curtain motion detectors. The detection distance is adjusted separately for each side with the Detection Distance scrollbars on the back of the detector. When selecting the installation location, consider the maximum speci ed detection distance of the detector.
  • Page 26 The detection distance was tested at the medium sensitivity level, ambient temperature of +23°C, and clear weather. Motion type — walking. Under other conditions, the results may be different. When choosing where to place the detector, be sure to use the Detection zone test to determine the sector, in which the detector recognizes motion, as accurately as possible.
  • Page 27 If appropriate, turn on Near area detection (Near area detection scrollbar) for the desired side. The mode allows the detector sensors to detect motion when an attempt is made to break in at the very body of the device, reducing the blind spot. When installing, also consider the width of the detection zone.

  • Page 28: Mounting The Detector

    In places with low or unstable signal strength. Closer than within 1 meter of a hub or the ReX range extender. Mounting the detector Prior to installing DualCurtain Outdoor, be sure to select the optimal location following the requirements of this manual!
  • Page 29 Before mounting, set the desired detection distance of the detector (Detection distance scrollbar), the viewing angle deviation (Beam direction scrollbar), and activate the Near area detection mode (Near area detection scrollbar), if necessary. 1. Temporarily attach the SmartBracket panel with the bundled ties (or other temporary fasteners, such as double-sided tape).

  • Page 30: Maintenance

    SmartBracket corner with perforation. 7. Put DualCurtain Outdoor on the mounting plate, wait for the calibration to complete, and screw in the screw on the bottom of the body. It is needed for a more secure mounting and so that the detector can’t be quickly removed from...

  • Page 31: Technical Speci Cations

    LED will light up and go out gradually when the detector detects a movement or the tamper is activated. DualCurtain Outdoor can work up to 2 months after the low battery signal. However, we recommend you replace the batteries immediately upon noti cation.

  • Page 32: Complete Set

    IP54 Operating temperature range From -25°C to +60°C Operating humidity Up to 95% Dimensions 174 × 123 × 88 mm Weight 615 g Service life 10 years 24 months Warranty Learn more Compliance with standards Complete set 1. DualCurtain Outdoor...

  • Page 33: Warranty

    4. Installation kit 5. Quick Start Guide Warranty The warranty for the AJAX SYSTEMS MANUFACTURING Limited Liability Company products is valid for 2 years after purchase and does not extend to the bundled batteries. If the device does not function properly, we recommend that you rst contact the...
