MotionCam Outdoor user manual

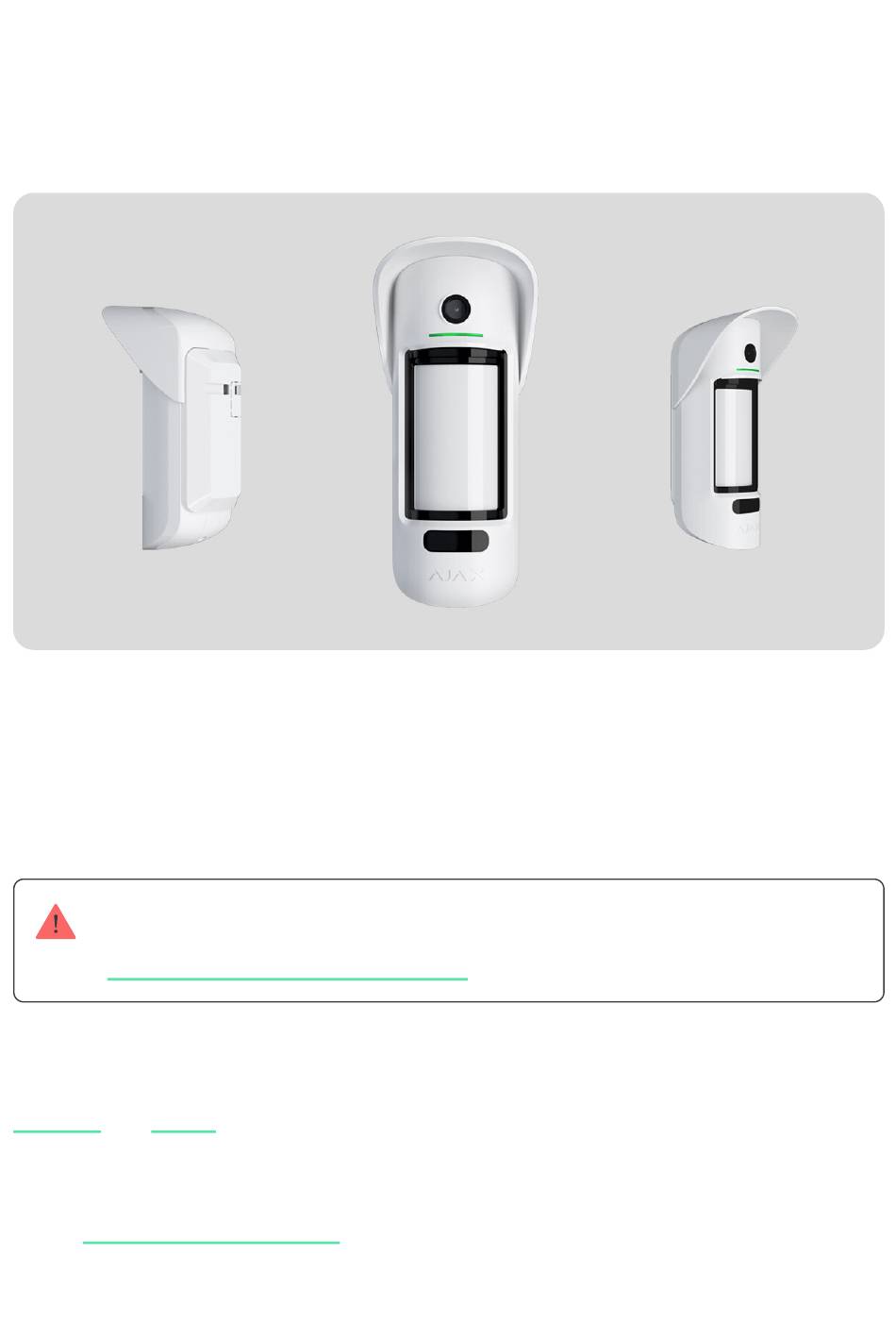

MotionCam Outdoor is a wireless outdoor motion detector with a camera for alarm
verification. Detects movement at a distance of up to 15 meters. Has anti-masking
protection, ignores animals when correctly configured and installed.
A hub is required for the detector to operate.
List of compatible hubs and range extenders
MotionCam Outdoor works as part of the Ajax system by connecting to the hub via
Jeweller
and
Wings
obstacles is up to 1,700 meters.
Buy MotionCam Outdoor
Functional elements
Updated June 26, 2024
encrypted radio protocols. The communication range without

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MotionCam Outdoor and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX MotionCam Outdoor

Summary of Contents for AJAX MotionCam Outdoor

  • Page 1 A hub is required for the detector to operate. List of compatible hubs and range extenders MotionCam Outdoor works as part of the Ajax system by connecting to the hub via Jeweller Wings encrypted radio protocols.
  • Page 2 . Triggers when an attempt is made to detach the detector from the surface or remove the mounting panel. 12. Detector’s QR code / identifier. Used to connect MotionCam Outdoor to the Ajax system. 13. Scrollbar for adjusting the detection range.

  • Page 3: Operating Principle

    00:00 00:08 MotionCam Outdoor is an outdoor motion detector with a camera. IR sensors of the detector identify intrusions by detecting moving objects with temperatures close to that of the human body. Visual verification helps you instantly assess the situation, relieving users of unnecessary anxiety, and security companies —...
  • Page 4 Learn more about Ajax motion detectors In the armed mode, the detector constantly reads signals from infrared (IR) sensors. When motion is detected, MotionCam Outdoor transmits an alarm to the hub and signals it by flashing the LED indicator (if indication is enabled).
  • Page 5 Photo verification of alarms When the detector is triggered, the built-in MotionCam Outdoor camera can take 1 to 5 images with a resolution of 320 × 176 and up to 3 images with a resolution of 640 ×...

  • Page 6: Temperature Compensation

    The detector perceives a person and other objects as heat spots. The device monitors these heat spots and, if they move, signals an alarm. MotionCam Outdoor reacts to the movement of heat spots with the temperature close to that of the human body.

  • Page 7: Pet Immunity

    Pet immunity 00:00 00:14 When set up and installed correctly, MotionCam Outdoor ignores animals up to 80 centimeters tall. The detector has two IR sensors and raises an alarm only when movement is detected by both sensors. If installed correctly, animals will only enter the detection zone of one of the detector’s sensors.
  • Page 8 Note that the anti-masking system is always active and works regardless of the detector or system security mode. For additional protection of the camera or the masking detection system from false alarms on heavy rain or snow, a Hood visor is provided. Anti-masking and its implementation in Ajax outdoor detectors Protection against false triggering...
  • Page 9 LISA compares the frequency components of the signals from the two sensors. Protection against faster battery discharging To prevent rapid battery discharge, MotionCam Outdoor has the Notify on risk of fast battery discharge setting . Once the device detects that it is installed incorrectly, system users will receive notifications in Ajax apps, and similar information will be...

  • Page 10: Adding To The System

    2. Make sure that the hub is on and has access to the internet (via Ethernet cable, Wi-Fi, and/or mobile network). You can do this in the Ajax app or by checking the hub logo on the faceplate. The logo should light up white or green if the hub is connected to the network.
  • Page 11 5. Switch on the device by holding the power button for 3 seconds. To make sure MotionCam Outdoor is connected to the hub, the detector must be located at the same secured facility as the system (within the range of the hub’s radio network).
  • Page 12 No connection with the hub or radio signal range extender via Jeweller. No connection with the hub or radio signal range extender via Wings. The detector battery is low. Icons The icons represent some of MotionCam Outdoor statuses. You can see them in the Devices tab in the Ajax app. Icon Value Jeweller signal strength —...
  • Page 13 Learn more MotionCam Outdoor has detected motion. MotionCam Outdoor is permanently deactivated. Learn more MotionCam Outdoor has been disabled due to the exceeding of the number of alarms. Learn more MotionCam Outdoor has disabled tamper triggering events. Learn more MotionCam Outdoor is deactivated until the first event of disarming the system.
  • Page 14 States The states display information about the device and its operating parameters. MotionCam Outdoor states are available in the Ajax apps. To view them: 1. Sign in to the Ajax app. 2. Select the hub if you have several of them or using a PRO app.
  • Page 15 Battery charge The battery charge level of the device: Battery low The Ajax apps and the security company will receive appropriate notifications when the batteries are low. After sending a low battery notification, the detector can work for up to 2 months.
  • Page 16 Battery life calculator The status of the detector’s tamper that responds to detachment of the device from the surface or opening of the body: Open — the detector was removed from the SmartBracket panel, or the integrity of its body was compromised.
  • Page 17 Learn more Shows the status of the device permanent deactivation function: No — the device works in the normal mode. Lid only — detector’s tamper triggering notifications are disabled. Entirely — the detector is entirely excluded from the operation of the system. The device Permanent Deactivation does not execute system commands and report alarms or other events.
  • Page 18 the alarm even if triggered until the countdown ends. Follower — the detector inherits the delays from Entry/Exit detectors. However, when the Follower is triggered individually, it immediately raises the alarm. Delay time when entering: from 5 to 120 seconds. Delay when entering (alarm activation delay) is the time the user has to disarm the security system Delay When Entering, sec...
  • Page 19 Settings Note that the motion detection range is set using a switch on the detector body. To change the detector settings in the Ajax app: 1. Go to the Devices tab. 2. Select MotionCam Outdoor from the list. 3. Go to Settings by clicking on the gear icon 4.
  • Page 20 . If during the test the detector doesn’t react to motion in 5 cases out of 5, the sensitivity can be increased When this option is enabled, MotionCam Outdoor detects masking Anti-masking Learn more If active, the detector is always in the armed mode...
  • Page 21 Notify on risk of fast battery discharge This feature is available for MotionCam Outdoor with firmware version 6.59.4.15 and later, except version 7.58.5.12. sirens...
  • Page 22 Follower is triggered individually, it immediately raises the alarm. Delay time when entering (5 to 120 seconds). Delay when entering (alarm activation delay) is the time the user has to disarm the security system Delay When Entering, s after entering the secured area Learn more Delay time when leaving (5 to 120 seconds).
  • Page 23 Upper sensor of the detector Lower sensor of the detector Masking sensors All motion sensors together Learn more Switches the detector to the Wings signal strength test mode. The test checks the signal strength between the hub and the detector at Wings frequencies to Wings Signal Strength Test determine the optimum installation place Learn more...
  • Page 24 Photo verification of alarms in Ajax apps If the Send photo in case of alarm option is enabled for MotionCam Outdoor, alarms in Ajax apps will be accompanied by a series of photos (the number depends on the...
  • Page 25 A series of photos are played back in the application as animation, so the user is able to evaluate the unfolding of the incident over time. To save a series of photos, click on the button highlighted in the screenshot. You can save each frame individually (in JPEG format) or the entire series (in GIF or MP4 format).
  • Page 26 Learn more about photo verification Indication The MotionCam Outdoor LED indicator may light up red or green, depending on the status of the detector. 00:00 00:03 Indication when pressing the power button Indication Event Lights up red while the button is pressed...

  • Page 27: Functionality Testing

    The Ajax system has several tests for choosing the right installation place for the devices. MotionCam Outdoor tests do not start straight away but not later than over a single hub-detector ping period (36 seconds under default settings of the hub).

  • Page 28: Detector Placement

    4. Go to Settings Detector placement MotionCam Outdoor is suitable for the protection of the area around the secured site. It may guard a courtyard of a private house, a parking, unheated premises, and other sites. The detector can be installed both outdoors and indoors.
  • Page 29 MotionCam Outdoor will not have blind spots, and it will be more difficult for burglars to bypass it. If MotionCam Outdoor cannot be installed in a corner, it can be installed on a flat vertical surface such as a wall or fence. In this case, install another detector that will cover the blind spots of the first MotionCam Outdoor detector.

  • Page 30: Signal Strength

    Locate MotionCam Outdoor in a place with stable Jeweller and Wings signal strength (2-3 bars in the Ajax app). When choosing a place for installation, consider the distance between the detector and the hub and the presence of any obstacles between the devices hindering the radio signal passage: walls, intermediate floors,...
  • Page 31 Motion detection distance when Motion detection distance when Scrollbar position installed at 0.8–1.3 meters installed at 0.5 meters First bar (corresponds to the near inscription on the detector Up to 4 meters Up to 1 meters body) Second bar Up to 5 meters Up to 3 meters Third bar Up to 7 meters...
  • Page 32 detector in locations where an open window or door can obstruct its view. When installing, also consider the width of the detection zone. Incorrect detector placement can lead to false alarms. Detection distance Detection zone width 1 meter 2 meters 3 meters 6 meters 4 meters...

  • Page 33: Detector Installation

    Closer than 1 meter to the hub. Detector installation Before installing MotionCam Outdoor, be sure to select the optimal location following the requirements of this manual. Before installation, be sure to set up the desired detection distance of the detector (Detection Distance scrollbar).
  • Page 34 7. Attach MotionCam Outdoor to the mounting plate, wait for the calibration to complete, and tighten the screw at the bottom of the body. The screw is needed for more reliable fastening and protection of the detector from quick dismantling.

  • Page 35: Maintenance

    LED will light up and go out gradually when the detector detects any movement or if the tamper triggers. MotionCam Outdoor can work up to 2 months after the low battery signal. However, we recommend that you replace the batteries immediately upon notification. It is advisable to use lithium batteries.
  • Page 36 Installation method Outdoors and indoors Type of detector Wireless Control panels: Hub 2 (2G) Jeweller, Hub 2 (4G) Jeweller, Hub 2 Plus Jeweller, Hub Hybrid (2G), Hub Hybrid (4G). Compatibility Range extenders: ReX 2 Jeweller Doesn’t work with ReX Jeweller range extenders Sensing element Two IR sensors Sensitivity...
  • Page 37 CMS compatibility CMS software with support for photo- verification of alarms Jeweller — for transmitting events and alarms. Learn more Radio communication protocols with Ajax detectors and devices Wings — for transmitting photos. Learn more 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 –...

  • Page 38: Complete Set

    5. Installation kit . Quick start guide Warranty The warranty for the Limited Liability Company “Ajax Systems Manufacturing” products is valid for 2 years after purchase and does not apply to the bundled batteries. If the device does not function correctly, please contact the Support Service first. In...
  • Page 39 Warranty Obligations User Agreement Technical support: support@ajax.systems Subscribe to the newsletter about safe life. No spam Email Subscribe...
