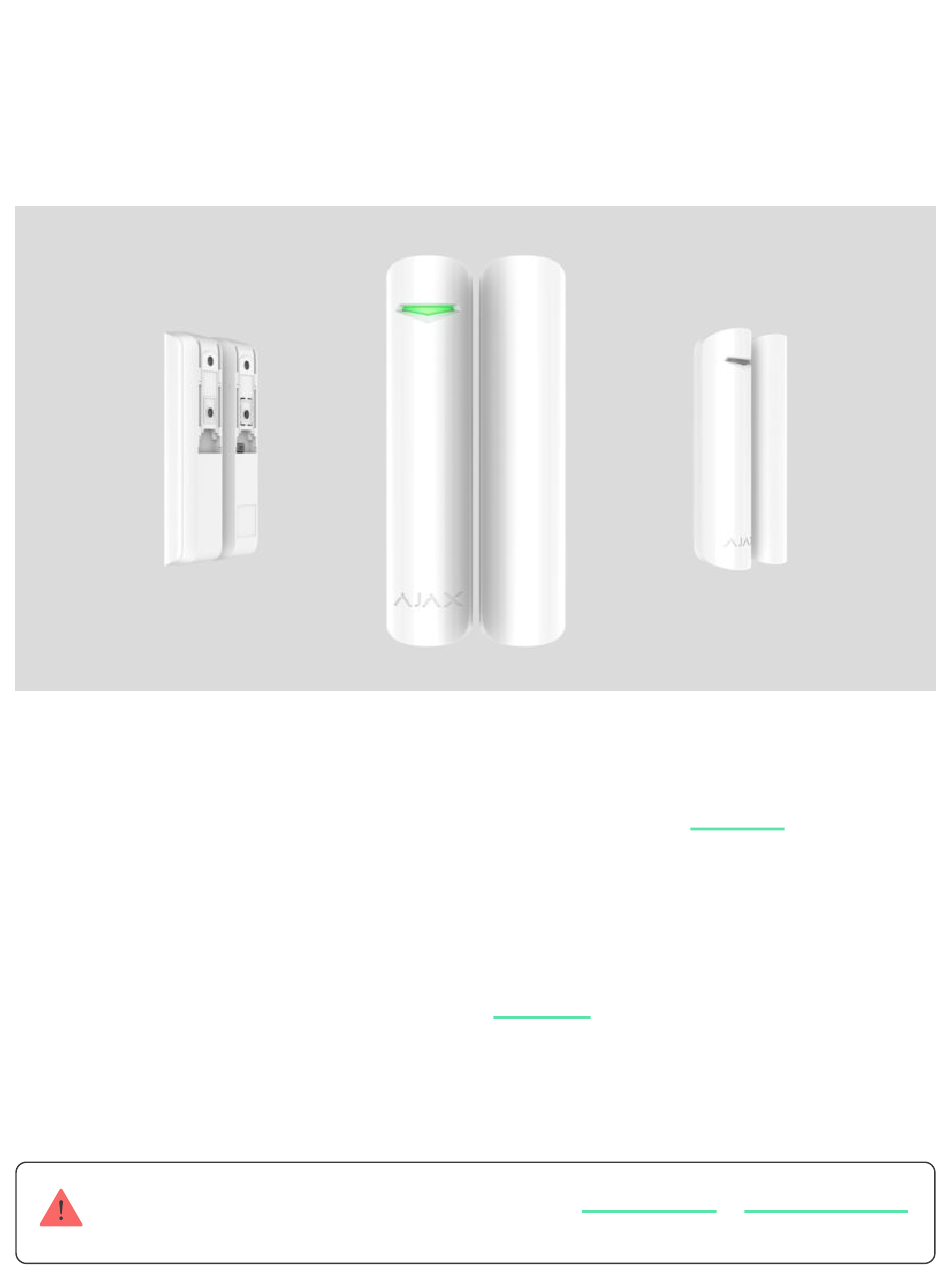

DoorProtect Plus User Manual

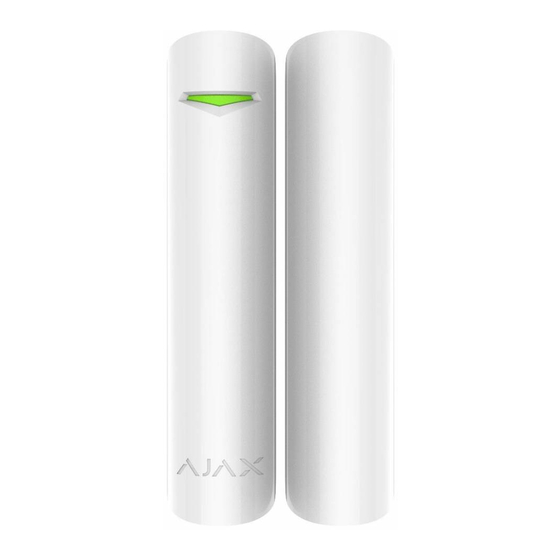

DoorProtect Plus is a wireless opening, shock, and tilt detector, that operates
within the Ajax security system, connecting via the protected
protocol. Is used inside premises. The communication range is up to 1,200 m line
of sight. DoorProtect Plus can operate up to 5 years from a pre-installed battery
and capable to detect more than one million openings.
The user can configure the detector via the
Android. The app notifies the user of all events through push notifications, SMS,
and calls (if activated).
DoorProtect Plus does not support connecting via the
integration modules.
Updated July 30, 2020
Ajax app
Jeweller
for iOS, macOS, Windows, or
Ajax uartBridge
or
Ajax ocBridge Plus
radio

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DoorProtect Plus and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX DoorProtect Plus

Summary of Contents for AJAX DoorProtect Plus

  • Page 1 Is used inside premises. The communication range is up to 1,200 m line of sight. DoorProtect Plus can operate up to 5 years from a pre-installed battery and capable to detect more than one million openings. The user can configure the detector via the...

  • Page 2: Functional Elements

    The Ajax security system can be connected to a central monitoring station of a security company. Buy opening detector with shock and tilt sensor DoorProtect Plus Functional Elements 1. DoorProtect Plus 2. Big magnet 3. Small magnet 4. LED indicator 5.

  • Page 3: Operating Principle

    Operating Principle DoorProtect Plus consists of two parts: the detector and the constant magnet. The detector is equipped with the sealed contact reed relay, built-in accelerometer, and socket for a third-party wired detector. Attach the detector to the door frame, while the magnet can be attached to the moving wing or sliding part of the door.
  • Page 4 Only users with administrator rights can add the device to the hub. How to connect the detector to the hub 1. Select Add Device in the Ajax app. 2. Name the device, scan or type the QR code (located on the detector body and...
  • Page 5 The detector connected to the hub appears in the list of devices in the app. The update of the detector statuses in the list depends on the device ping interval set in the hub settings (the default value is 36 seconds). States 1. Devices 2. DoorProtect Plus...
  • Page 6 Parameter Value The temperature of the detector. The temperature Temperature is measured on the processor and changes gradually The signal strength between the hub and the Jeweller Signal Strength detector Connection status between the hub and the Connection detector The battery level of the detector, displayed in Battery Charge increments of 25%...
  • Page 7 Indicates whether the detector is always armed Shock sensor Indicates whether the shock sensor is active Tilt sensor Indicates whether the tilt sensor is active Firmware The detector firmware version Device ID Device identifier Settings 1. Devices 2. DoorProtect Plus 3. Settings...
  • Page 9 Night mode (for example, only a tilt sensor) If setting is active, the DoorProtect Plus primary Primary Detector detector reacts to opening/closing If setting is active, the detector registers external...
  • Page 10 Sensitivity Sensitivity level of the shock sensor Ignore simple impact If active, the detector ignores single hit Tilt sensor If active, sensor will detect tilt Selecting the normal angle of the sensor. Above Tilt this limit, the sensor detects an alarm The number of seconds from the moment the Tilt alarm delay sensor is tilted to the alarm...

  • Page 11: Performance Testing

    (the paragraph on “Jeweller” settings in hub settings). Jeweller Signal Strength Test Detection Area Test Attenuation Test Installing the Detector The location of DoorProtect Plus depends on its remoteness from the hub, and obstacles hindering the radio signal transmission: walls, floors, large objects inside the room.
  • Page 12 The device developed only for indoor use. Check the Jeweller signal level at the installation location If the signal level is low (one bar), we cannot guarantee the stable operation of the detector. Take all possible measures to improve the quality of the signal. At least, move the detector: even a 20 cm shift can significantly improve the quality of signal reception.

  • Page 13: Detector Testing

    The distance between the magnet and detector should not exceed 1 cm. When positioning the parts of DoorProtect Plus in the same plane, use the big magnet. Its actuation threshold is 2 cm.
  • Page 14 We recommend installing the wired detector at a distance no longer than 1 meter to DoorProtect Plus. Longer wire length increases the risk of its damage and reduces the quality of communication between the detectors. To put out the wire from the detector body, break out the plug: If the connected wired detector is triggered, you receive the notification.

  • Page 15: Installation

    DoorProtect Plus. The function is available for the devices with firmware version 5.53.1.0 and higher. How to find the firmware version or the ID of the sensor or device? How to connect the roller shutter motion detector to DoorProtect Plus...

  • Page 16: Tech Specs

    If the door opens 10 times a day and the detector ping interval is 60 seconds, then DoorProtect Plus operates 7 years from the pre-installed battery. For instance, a 12- seconds ping interval reduces the battery life to 2 years.

  • Page 17: Complete Set

    4. Big magnet 5. Small magnet 6. Outside-mounted terminal clamp 7. Installation kit 8. Quick Start Guide Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to...

  • Page 18: Need Help

    If the device does not work correctly, you should first contact the support service— in half of the cases, technical issues can be solved remotely! The full text of the warranty User Agreement Technical support: support@ajax.systems Need help? In this section you’ll find detailed manuals and educational videos about all features of Ajax.
  • Page 19 And in case you need help of a technical specialist, we re available 24/7. Send request...
