CombiProtect Fibra User manual

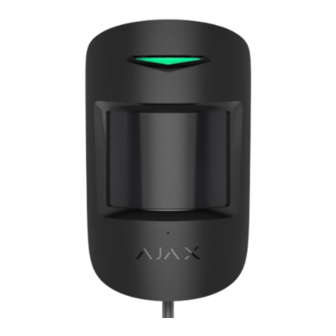

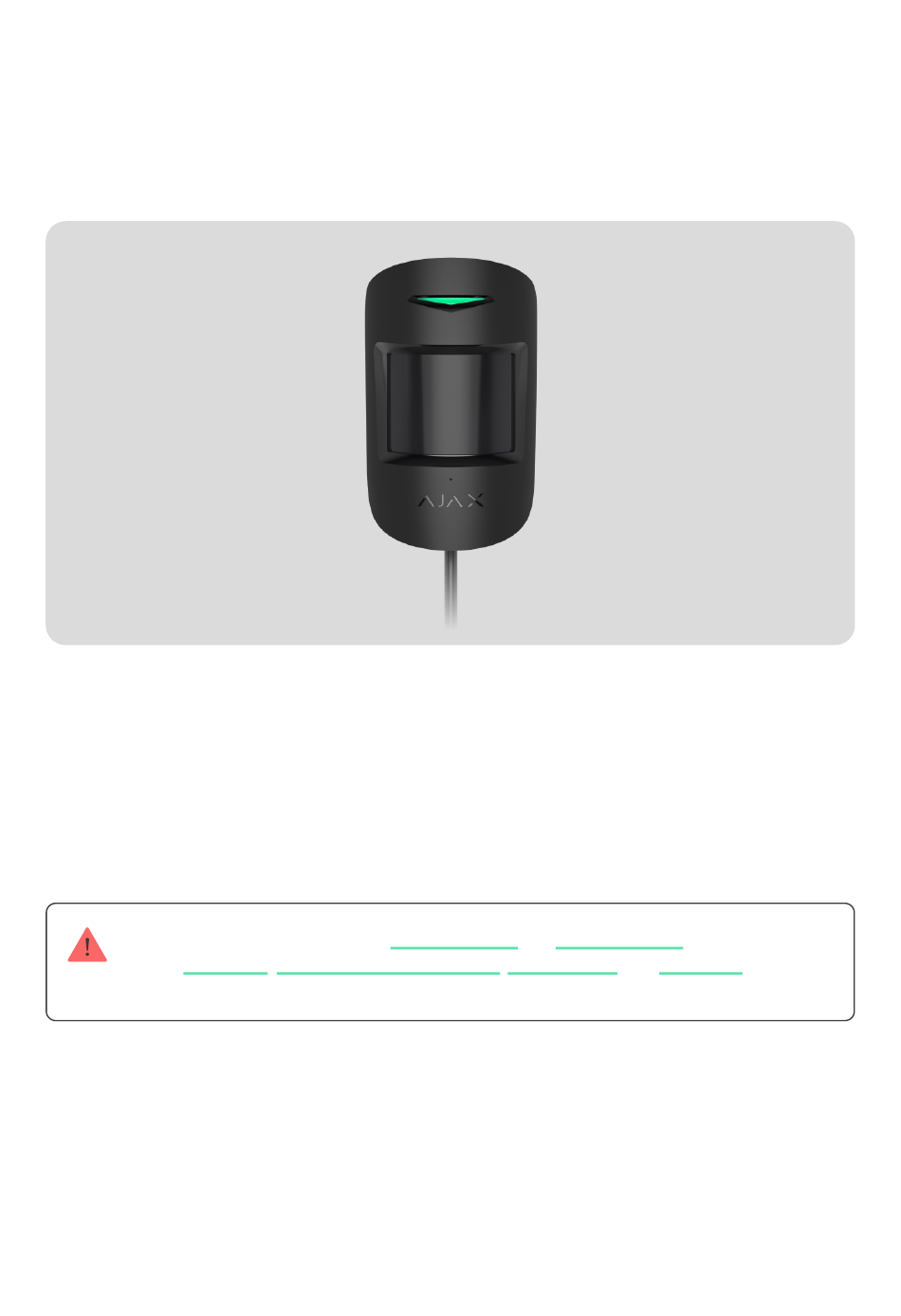

CombiProtect Fibra is a wired motion and glass break detector. Detects
movement at a distance of up to 12 metres and glass break at a distance of up
to 9 metres. Does not react to pets up to 50 centimetres tall and weighing up to
20 kilograms. For indoor installation.
The detector is compatible with
other
other hubs radio signal range extenders ocBridge Plus
provided. Integration with other security systems is not provided either.
CombiProtect Fibra works as part of the Ajax security system, exchanging data
with the hub using the secure Fibra protocol. The communication range is up to
2,000 m when connected via twisted pair U/UTP cat.5.
CombiProtect Fibra is a member of the product line of wired Fibra devices. The
installation, sale, and administration of these devices are performed only by
accredited Ajax partners.
Updated May 22, 2023
Hub Hybrid (2G)
,
and
Hub Hybrid (4G)
,
, and
uartBridge
. Connection to
is not

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CombiProtect Fibra and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX CombiProtect Fibra

Summary of Contents for AJAX CombiProtect Fibra

  • Page 1 Fibra protocol. The communication range is up to 2,000 m when connected via twisted pair U/UTP cat.5. CombiProtect Fibra is a member of the product line of wired Fibra devices. The installation, sale, and administration of these devices are performed only by...

  • Page 2: Functional Elements

    Buy CombiProtect Fibra Functional elements 1. LED indicator. 2. Motion detector lens. 3. Glass break detector microphone hole. 4. SmartBracket mounting panel. To remove the panel, slide it down. 5. Perforated part of the mounting panel. Necessary to trigger a tamper in case of any attempt to detach the detector from the surface.
  • Page 3 , and noti es users and the security company. How Ajax noti es users of alarms All CombiProtect Fibra alarms and events are recorded in the noti cation feed of the Ajax app. Users know where motion or glass break is detected. The...
  • Page 4 CombiProtect Fibra will not react to a break if a lm is glued to the glass: anti-shock, sun- protective, decorative, or other. To x the break of such glass, we recommend using detectors with a shock sensor: ...

  • Page 5: Pet Immunity

    Pet immunity When properly installed and con gured, CombiProtect Fibra does not respond to pets up to 50 centimetres tall and weighing up to 20 kilograms. The detector is installed at a height of 2.4 metres without any obstruction to its view.

  • Page 6: Temperature Compensation

    SIA DC-09 (ADM-CID), ADEMCO 685, and other proprietary protocols. The full list of supported protocols is available here Which CMSs can the Ajax security system be connected to CombiProtect Fibra can transmit the following events through the hub to the CMS: 1. Motion alarm. 2. Glass break alarm.

  • Page 7: Selecting The Installation Site

    Ajax app. The device number corresponds to the loop (zone) number. Selecting the installation site CombiProtect Fibra is mounted on a vertical surface or in a corner with the bundled screws. Drill holes in the SmartBracket mount for installation. The detector is intended for indoor installation only.
  • Page 8 The Fibra signal strength is determined by the ratio of the number of undelivered or corrupted data packages to those expected over a certain period of time. The icon   in the Devices  tab in Ajax apps indicates the signal strength: Three bars — excellent signal strength. Two bars — good signal strength.
  • Page 9 One bar — low signal strength. Stable operation is not guaranteed. Crossed out icon — signal is missing. Stable operation is not guaranteed. The following factors affect the signal strength: The number of devices connected to one Fibra line. Cable length and type. The correctness of the wire connections to the terminals.

  • Page 10: Detection Zone

    Horizontal viewing angle of the detector Detection zone When selecting detector placement, run a detection zone test for the glass break detector. This test allows checking the operation of the device and determine the sector in which the detector detects glass break. The location of the detector determines the area to be monitored and the effectiveness of the security system.
  • Page 11 Fibra wired systems are available in this article Topologies Ajax’s security systems support two topologies: Beam (Radial wiring) and Ring. Connecting devices using a Ring topology will be implemented in the next OS Malevich updates. Hardware update of Hub Hybrid will not be required.
  • Page 12 Beam (Radial wiring) Ring Occupies one bus output of the hub. Occupies two bus outputs of the hub. Up to 8 beams on the same hub. Up to 4 rings on the same hub. Up to 2,000 m of wired communication for the Up to 500 m of wired communication for the same line.

  • Page 13: Additional Information

    The maximum communication range for wired connection using the Beam (Radial) topology is 2,000 metres, and that using the Ring topology is 500 metres. Recommended cable types: U/UTP cat.5 4 × 2 × 0.51. The conductor material is copper. Signal cable 4 × 0.22. The conductor material is copper. If using a different type of cable, the communication range for wired connection may vary.

  • Page 14: Cable Arrangement

    Cable arrangement When preparing to route cables, check the electrical and re safety regulations in your region. It is safest to route cables inside walls, oors, and ceilings; this way, they will be invisible and unavailable for intruders. It also ensures greater durability; the cable will be affected by fewer of the external factors that can impact the natural wear of the conductor and its insulating layer.

  • Page 15: Installation And Connection

    0.75 to 1 mm². Installation and connection Before installing CombiProtect Fibra, make sure that the optimal detector location has been selected and that it meets the requirements of this manual. To reduce the risk of sabotage, the cables must be hidden from view and located in a place that is di cult for intruders to access.
  • Page 16 1. Turn off the hub. Disconnect the external power and the hub backup battery. 1 — external power supply. 2 — backup battery. 2. Plug the detector connection cable into the hub enclosure. Connect the wires to the required hub line. +24V —...
  • Page 17 1 — for cable output from the rear of the detector. 2 — for cable output from the side of the detector. 3 — for cable output from the bottom of the detector. 4. If the detector is not the last device in the connection line, prepare a second cable in advance.
  • Page 18 10. Place the detector on the SmartBracket mounting panel. 11. Connect the backup battery and external power supply to the hub. Turn on the hub. Add CombiProtect Fibra to the system 13. Perform the Fibra signal strength test . The recommended signal strength is two or three bars.

  • Page 19: Adding To The System

    3. Make sure that the hub is on and has Internet access via Ethernet and/or mobile network. You can check the connection in the Ajax app or by looking at the LED on the hub board. It should light up white or green.
  • Page 20 To add a detector manually 1. Open the PRO app . Select the hub you want to add CombiProtect Fibra to. 2. Go to the Devices  tab and click Add device. 3. Name the detector, scan, or type in the QR code (placed on the detector...
  • Page 21 you’re adding, how to name it, and which room and group it should be connected to.  To add a detector:  1. Click on the device in the list. 2. Create a name. 3. Specify a room and a security group (if enabled). 4.

  • Page 22: Functionality Testing

    CombiProtect Fibra only works with one hub. When connected to a new hub, the detector stops sending commands to the old one. Once added to a new hub, CombiProtect Fibra is not removed from the list of devices of the old hub. This must be done through the Ajax app.
  • Page 23 LED for a second. This means that the alarm on break is registered. You can also play this audio le to test the glass break detector. Icons The icons display some of CombiProtect Fibra states. Icons can be checked in the Ajax app in the Devices tab. Icon Meaning Fibra Signal Strength —...
  • Page 24 CombiProtect Fibra has been disabled due to exceeding the number of alarms. Learn more CombiProtect Fibra tamper-triggering events are temporarily disabled. Learn more States The states include information about the device and its operating parameters. CombiProtect Fibra states can be found in the Ajax app: 1.
  • Page 25 Fibra is a protocol for transmitting CombiProtect Fibra events and alarms. Learn more The status of connection between the hub and the detector: Online — the detector is connected to the hub. Connection via Fibra O ine — the detector has lost connection with the hub.
  • Page 26 Delay time when entering in Night mode: 5 to 120 seconds. Delay when entering (alarm activation delay) is the time the user has to disable Night Mode Night Mode Delay When Entering, sec after entering the premises. Learn more Delay time when leaving in Night Mode: 5 to 120 seconds.
  • Page 27 Detector ID. Also available on the QR code on Device ID the detector enclosure and the packaging. Device No. Number of the detector loop (zone). The number of the hub bus the detector is Bus No. connected to. Settings To change the detector settings in the Ajax app:...
  • Page 28 1. Go to the Devices  tab. 2. Select CombiProtect Fibra from the list. 3. Go to Settings by clicking on the gear icon 4. Set the required settings. 5. Click Back to save the new settings. Settings Meaning Detector name. Displayed in the list of hub devices, text of SMS and noti cations in the events feed.
  • Page 29 Learn more When off, the detector’s LED will not alert about Alarm LED indication motion, glass break, and tampering alarms. When this option is enabled, CombiProtect Fibra Motion Detector detects motion when armed. Sensitivity level of the motion detector. The selection depends on the type of the object,...
  • Page 30 When this option is enabled, the detector is always in the armed mode and detects motion. Motion Detector Always Active Learn more When this option is enabled, CombiProtect Fibra Glass Break Detector detects a break when armed. Sensitivity level of the microphone installed inside the detector: Low.

  • Page 31: Led Indication

    Detection Zone Test determine the optimal installation location. Learn more Opens CombiProtect Fibra User Manual in the User Guide Ajax app. Allows the user to disconnect the device without removing it from the system.

  • Page 32: Maintenance

    Malfunctions If a hub identi es a detector malfunction (for example, there is no connection with the hub via Fibra protocol), the Ajax app will display a malfunction counter in the upper left corner of the device icon. All malfunctions can be seen in the detector states. Fields with malfunctions will be highlighted in red.

  • Page 33: Complete Set

    Warranty for the Limited Liability Company “Ajax Systems Manufacturing” products is valid for 2 years after the purchase. If the device does not function correctly, please contact Ajax Technical Support rst. In most cases, technical issues can be resolved remotely.
