Glass Protect User manual

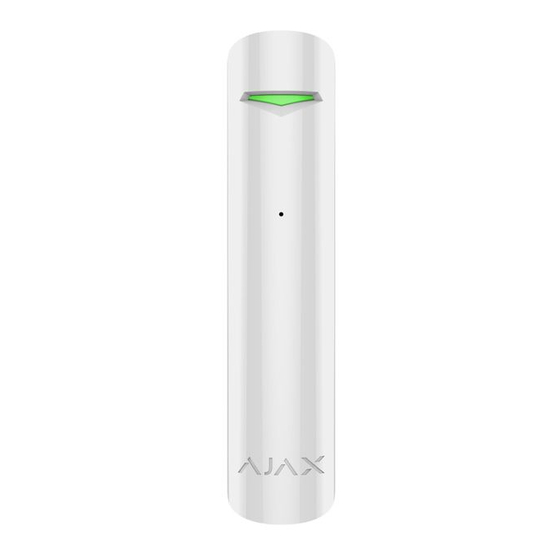

Glass Protect is a wireless indoor glass break detector recognizing the
sound of shattering the glass at a distance of up to 9 meters. Glass Protect
can operate up to 7 years from a pre-installed battery and has a socket for
connecting a third-party wired detector.
Glass Protect connects to the Ajax security system via the
protected Jeweller radio protocol. The communication range is up to 1,000
meters in line of sight. Also, Glass Protect can be connected to third-party
security systems using the Ajax uart Bridge or Ajax oc Bridge
Plus integration modules.
Users can configure Glass Protect via the
for mac OS, Windows,
Ajax app
iOS, or Android. The system notifies users of all events through push
notifications, SMS, and calls (if activated).
The user can connect the Ajax security system to the central monitoring
station of a security company.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Glass Protect and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX Glass Protect

Summary of Contents for AJAX Glass Protect

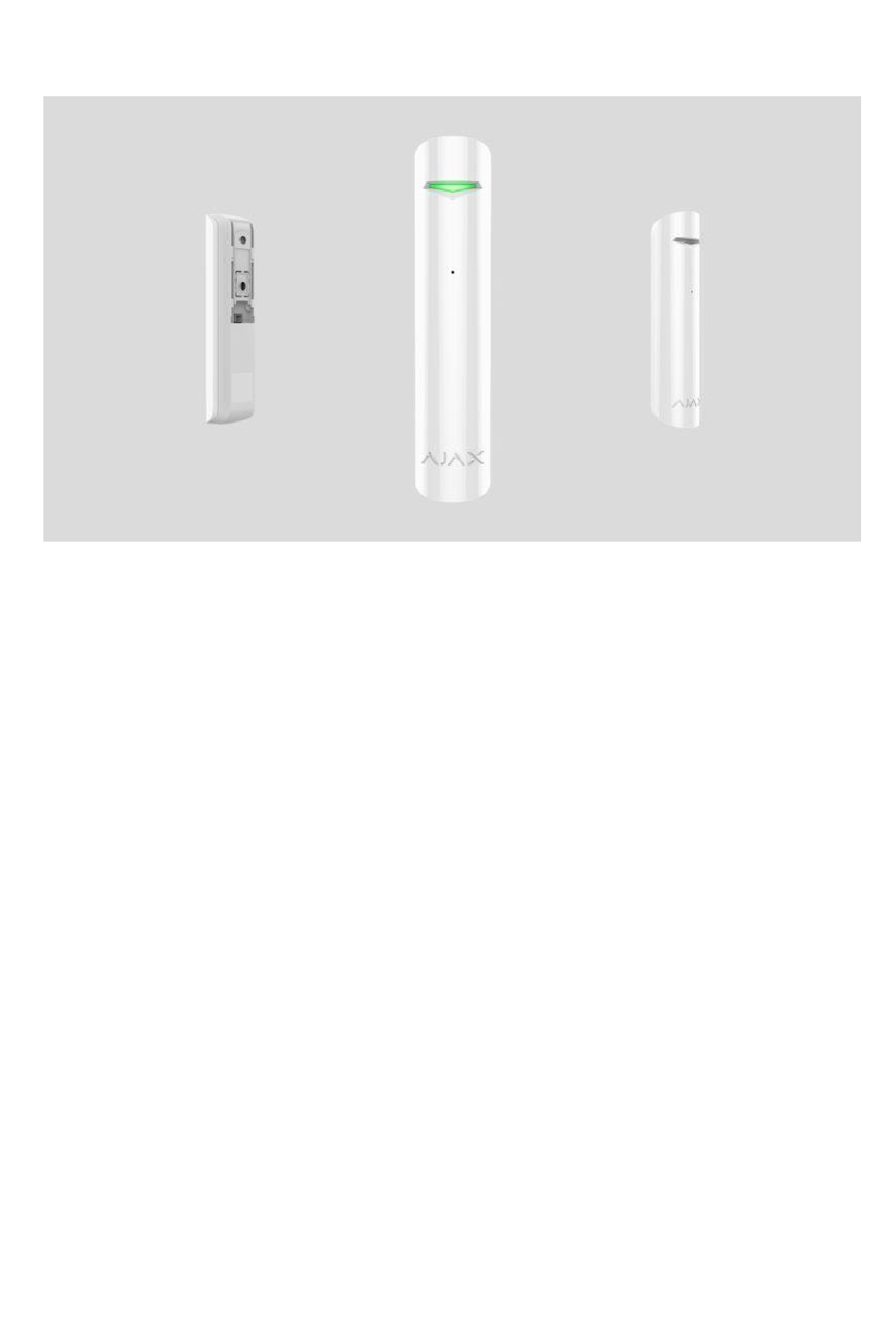

  • Page 1 Glass Protect is a wireless indoor glass break detector recognizing the sound of shattering the glass at a distance of up to 9 meters. Glass Protect can operate up to 7 years from a pre-installed battery and has a socket for connecting a third-party wired detector.

  • Page 2: Functional Elements

    Functional elements 1. LED indicator 2. Microphone hole 3. Smart Bracket attachment panel (perforated part is required for actuating the tamper in case of any attempt to dismantle the detector. Don’t break it out!) 4. External detector connection socket 5. QR code 6.

  • Page 3: Operating Principle

    Such two-stage glass break detection decreases the risk of false triggering. Glass Protect detector does not react to the breaking of the film-covered glass: shockproof, sunscreen, decorative, or any other type of film. To detect the breaking of such kind of glass, we recommend using the Door Protect Plus wireless opening detector with shock and tilt sensors.
  • Page 4 Pairing the detector with hub: 1. Select Add Device in the Ajax app. 2. Name the device, scan or type the QR code (located on the detector body and packaging), and select the location room. 3. Tap Add — the countdown will start.
  • Page 5 (the default value is 36 seconds). Connecting to Third-Party Systems To connect the detector to a third-party central unit using the uartBridge or ocBridge Plus integration module, follow the recommendations in the user manual of the respective device. States 1. Devices 2. Glass Protect...
  • Page 6 Sensitivity Sensitivity level of the sensor Secondary detector Status of the external detector connection to Glass Protect Routed Through ReX Displays the status of using the radio signal range extender ReX Always Active Indicates whether the detector is always armed...
  • Page 7 Setting Value First field Detector name, can be edited Room Selecting the virtual room to which the device is assigned Selecting delay time when entering. The option is available only Delay when entering, sec with a connected wired detector. Selecting delay time on exit. The option is available only with a Delay when leaving, sec connected wired detector.
  • Page 8 • External contact enabled If active, the detector registers external detector alarms Always active If active, the detector always registers glass breakage Alert with a siren if glass break If active, Home Siren and Street Siren are activated when the detected glass break detected Activate the siren if an...

  • Page 9: Functionality Testing

    Functionality testing The Ajax security system allows conducting tests for checking the functionality of connected devices. The tests do not start immediately but within a period of 36 seconds when using standard settings. The test time start depends on the settings of the detector scanning period (the paragraph on “Jeweller”...

  • Page 10: Installing The Device

    Installing the device Selecting the Location In some cases, the household activity can cause false alarms The location of Glass Protect depends on its remoteness from the hub, and obstacles hindering the radio signal transmission: walls, floors, large objects inside the room.
  • Page 11 Glass Protect recognizes glass break at a distance of up to 9 meters. Its microphone should be positioned no more than 90 degrees relative to the window(s). Make sure that any curtains, plants, furniture, or other objects do not over cover the microphone opening.
  • Page 12 We recommend installing the wired detector at a distance no longer than 1 meter to Glass Protect. Longer wire length increases the risk of its damage and reduces the quality of communication between the detectors. To put out the wire from the detector body, break out the plug:...

  • Page 13: Maintenance

    Maintenance Check the operational capability of the detector regularly. Clean the detector body from dust, spider web, and other contaminants as they appear. Use soft dry napkin suitable for tech equipment. Do not use any substances containing alcohol, acetone, gasoline, and other active solvents to clean the detector.

  • Page 14: Complete Set

    5. Installation kit 6. Quick Start Guide Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery. If the device does not work correctly, you should first contact the support...
