CombiProtect User Manual
Updated August 13, 2020

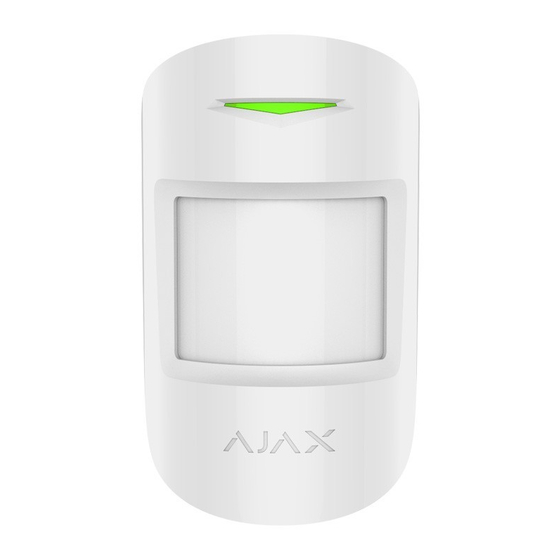

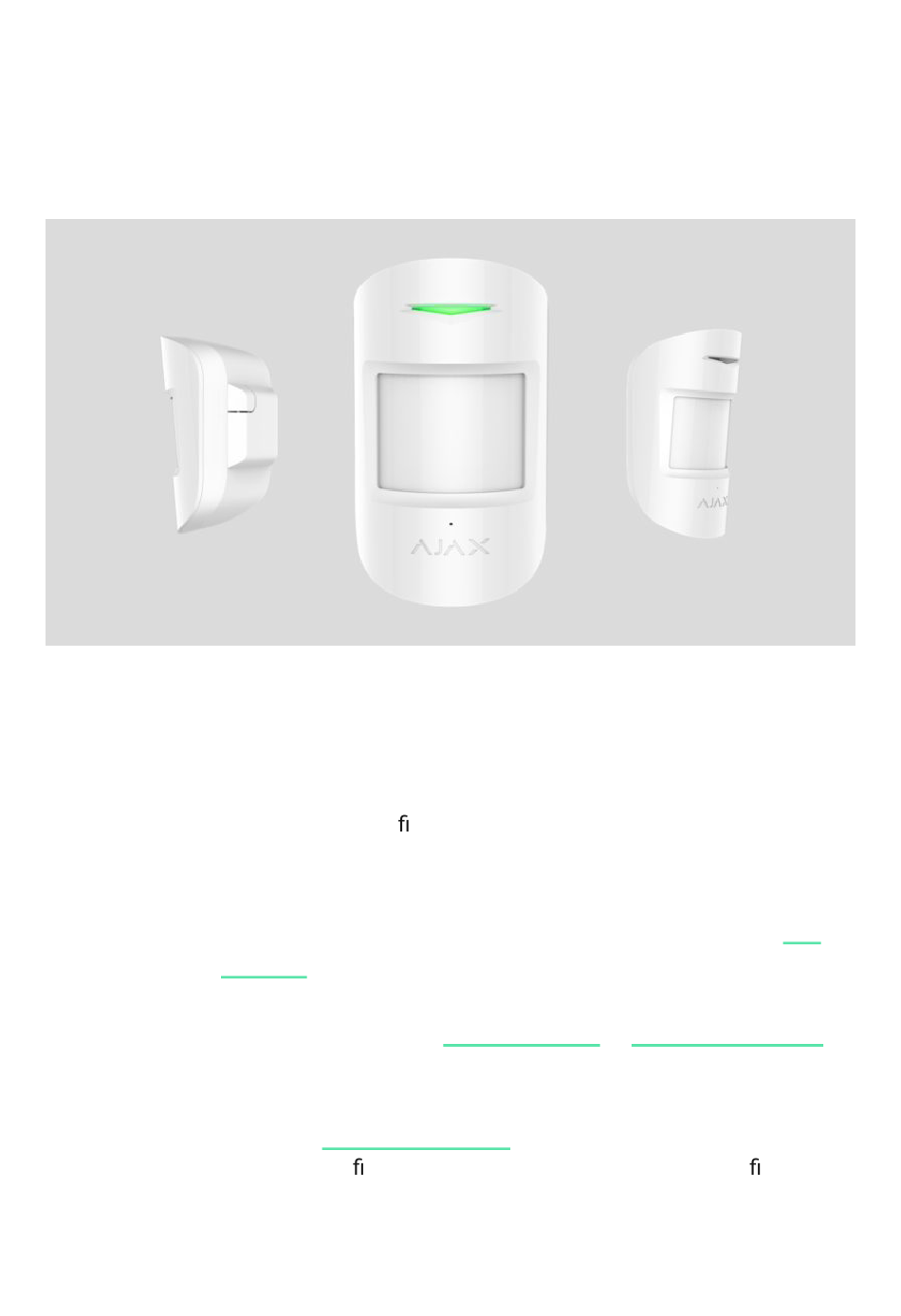

CombiProtect is a device combining a wireless motion detector with the viewing
angle of 88.5° and distance up to 12 meters, as well as a glass break detector
with the distance up to 9 meters. It can ignore animals and detects a person
within the protected zone from the rst step. It can operate for up to 5 years
from a pre-installed battery and is used inside premises.
CombiProtect operates within the Ajax security system, connected to the
hub
via the protected
Jeweller
protocol. The communication range is up to 1200
meters in the line of sight. In addition, the detector can be used as a part of
third-party security central units via the
Ajax uartBridge
or
Ajax ocBridge Plus
integration modules.
The detector is set up via a
mobile application
for iOS and Android based
smartphones. The system noti es user of all events through push noti cations,
SMS messages and calls (if activated).
The Ajax security system is self-sustaining, but the user can connect it to the
central monitoring station of a private security company.
