Technical data

Measured variable
Output signal
Signal on alarm
Linearization
Data of the FOUNDATION
Fieldbus interface
88

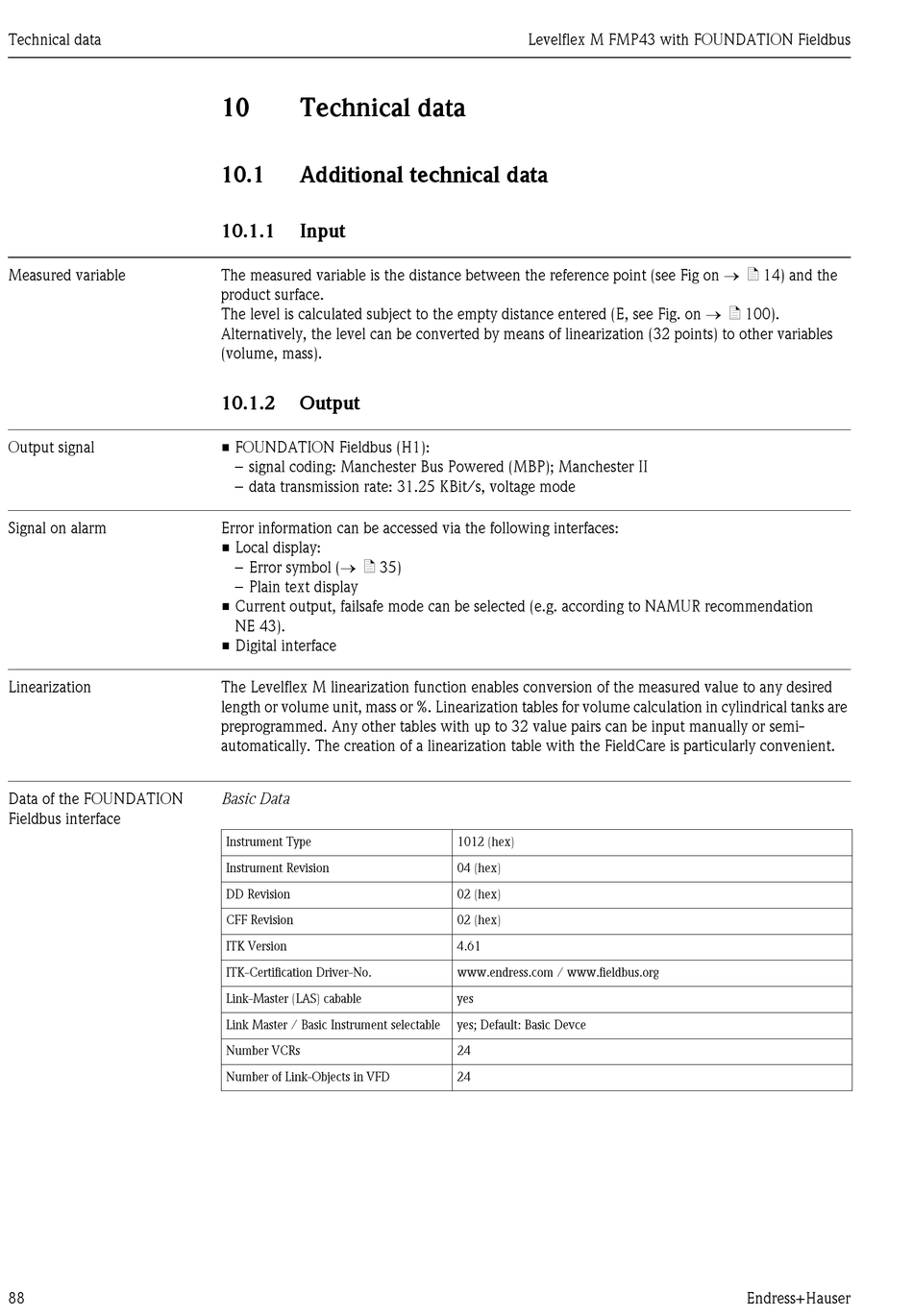

10 Technical data
10.1

Additional technical data

10.1.1 Input
The measured variable is the distance between the reference point (see Fig on → ä 14) and the
product surface.
The level is calculated subject to the empty distance entered (E, see Fig. on → ä 100).
Alternatively, the level can be converted by means of linearization (32 points) to other variables
(volume, mass).
10.1.2 Output
• FOUNDATION Fieldbus (H1):
– signal coding: Manchester Bus Powered (MBP); Manchester II
– data transmission rate: 31.25 KBit/s, voltage mode
Error information can be accessed via the following interfaces:
• Local display:
– Error symbol (→ ä 35)
– Plain text display
• Current output, failsafe mode can be selected (e.g. according to NAMUR recommendation
NE 43).
• Digital interface
The Levelflex M linearization function enables conversion of the measured value to any desired
length or volume unit, mass or %. Linearization tables for volume calculation in cylindrical tanks are
preprogrammed. Any other tables with up to 32 value pairs can be input manually or semi-
automatically. The creation of a linearization table with the FieldCare is particularly convenient.
Basic Data
Instrument Type
Instrument Revision
DD Revision
CFF Revision
ITK Version
ITK-Certification Driver-No.
Link-Master (LAS) cabable
Link Master / Basic Instrument selectable
Number VCRs
Number of Link-Objects in VFD
Levelflex M FMP43 with FOUNDATION Fieldbus
1012 (hex)
04 (hex)
02 (hex)
02 (hex)
4.61
www.endress.com / www.fieldbus.org
yes
yes; Default: Basic Devce
24
24
Endress+Hauser
