Levelflex M FMP43 with FOUNDATION Fieldbus
!
Endress+Hauser
Exiting the navigation
F
• Press again to run through the different modes of the envelope curve navigation.
O S
• Press and to exit the navigation. The set increases and shifts are retained. Only when you
reactivate the "recording curve" (0E2) function the display settings return to their standard
values.

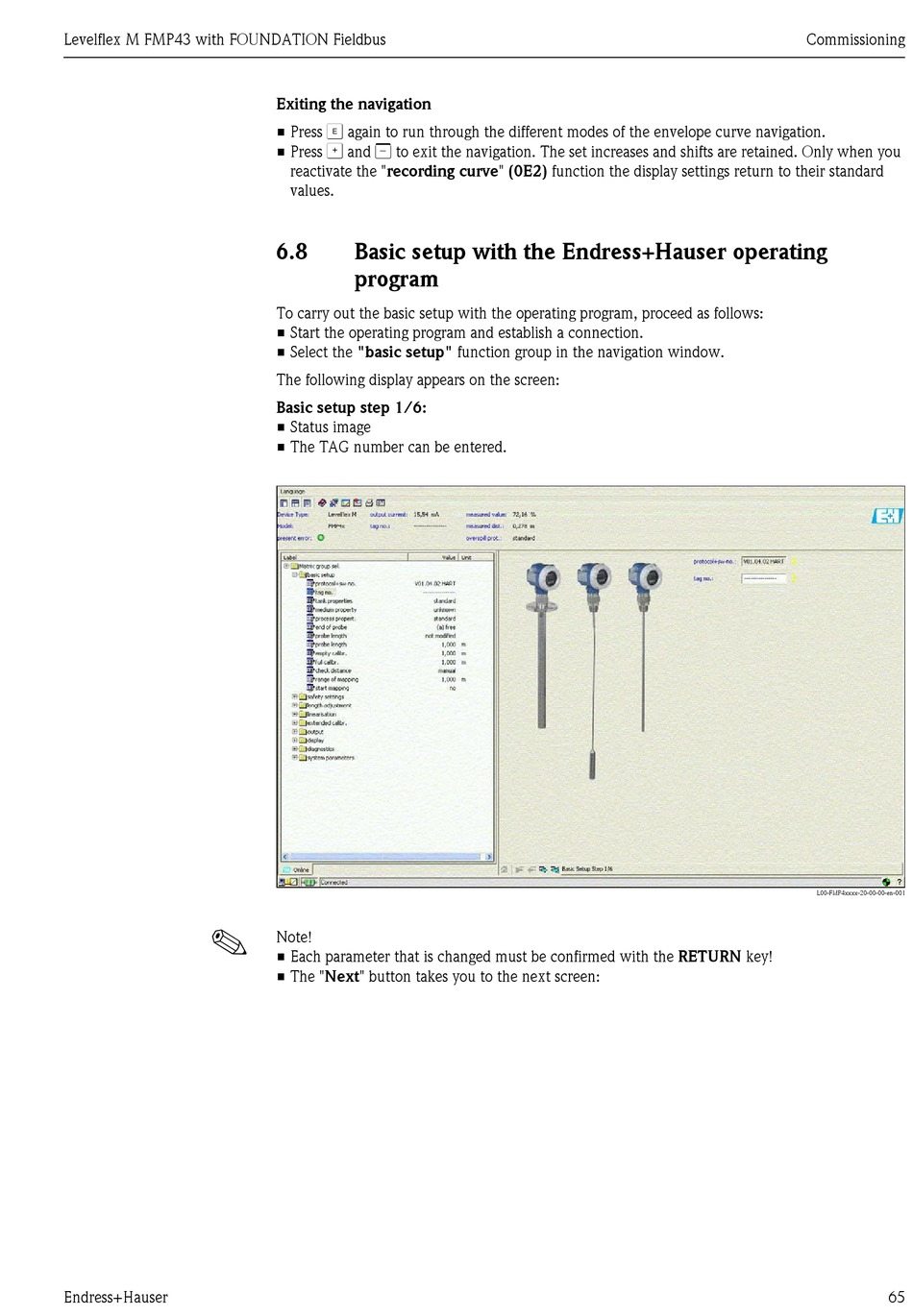

6.8 Basic setup with the Endress+Hauser operating
program
To carry out the basic setup with the operating program, proceed as follows:
• Start the operating program and establish a connection.
• Select the "basic setup" function group in the navigation window.
The following display appears on the screen:
Basic setup step 1/6:
• Status image
• The TAG number can be entered.
Note!
• Each parameter that is changed must be confirmed with the RETURN key!
• The "Next" button takes you to the next screen:
Commissioning
L00-FMP4xxxx-20-00-00-en-001
65
