Commissioning
⇒
ENDRESS + HAUSER
–
+ E
⇒
ENDRESS + HAUSER
– +
E
50

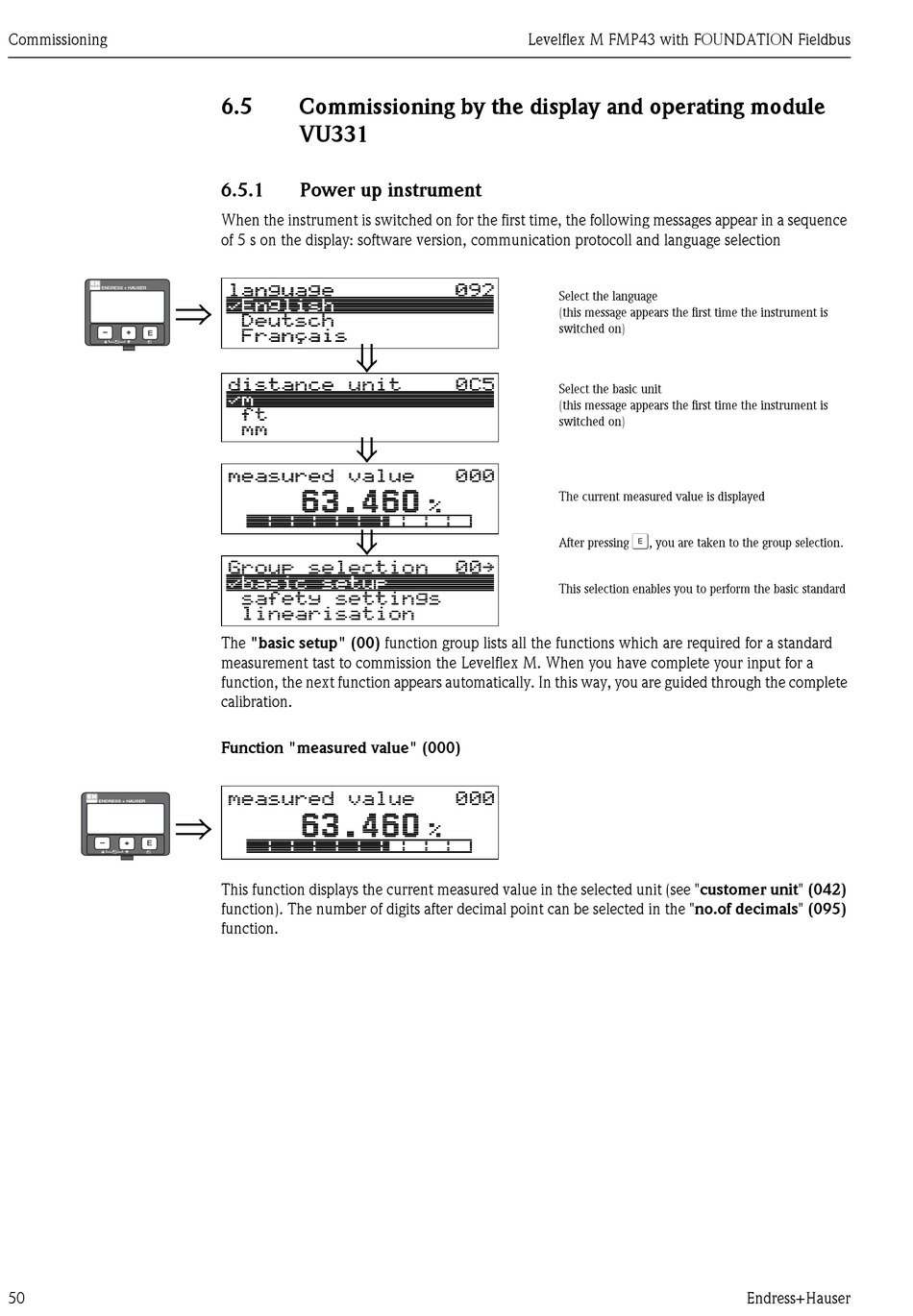

6.5 Commissioning by the display and operating module
VU331
6.5.1 Power up instrument
When the instrument is switched on for the first time, the following messages appear in a sequence
of 5 s on the display: software version, communication protocoll and language selection
⇓
⇓
⇓
The "basic setup" (00) function group lists all the functions which are required for a standard
measurement tast to commission the Levelflex M. When you have complete your input for a
function, the next function appears automatically. In this way, you are guided through the complete
calibration.
Function "measured value" (000)
This function displays the current measured value in the selected unit (see "customer unit" (042)
function). The number of digits after decimal point can be selected in the "no.of decimals" (095)
function.
Levelflex M FMP43 with FOUNDATION Fieldbus
Select the language
(this message appears the first time the instrument is
switched on)
Select the basic unit
(this message appears the first time the instrument is
switched on)
The current measured value is displayed
F
After pressing , you are taken to the group selection.
This selection enables you to perform the basic standard
