Levelflex M FMP43 with FOUNDATION Fieldbus
Process connection
43,4
Ø 50,4
56,4
Ø 63,9
83,4
Ø 90,9
74
Ø 54,85
84
56,4
Ø 63,9
Endress+Hauser

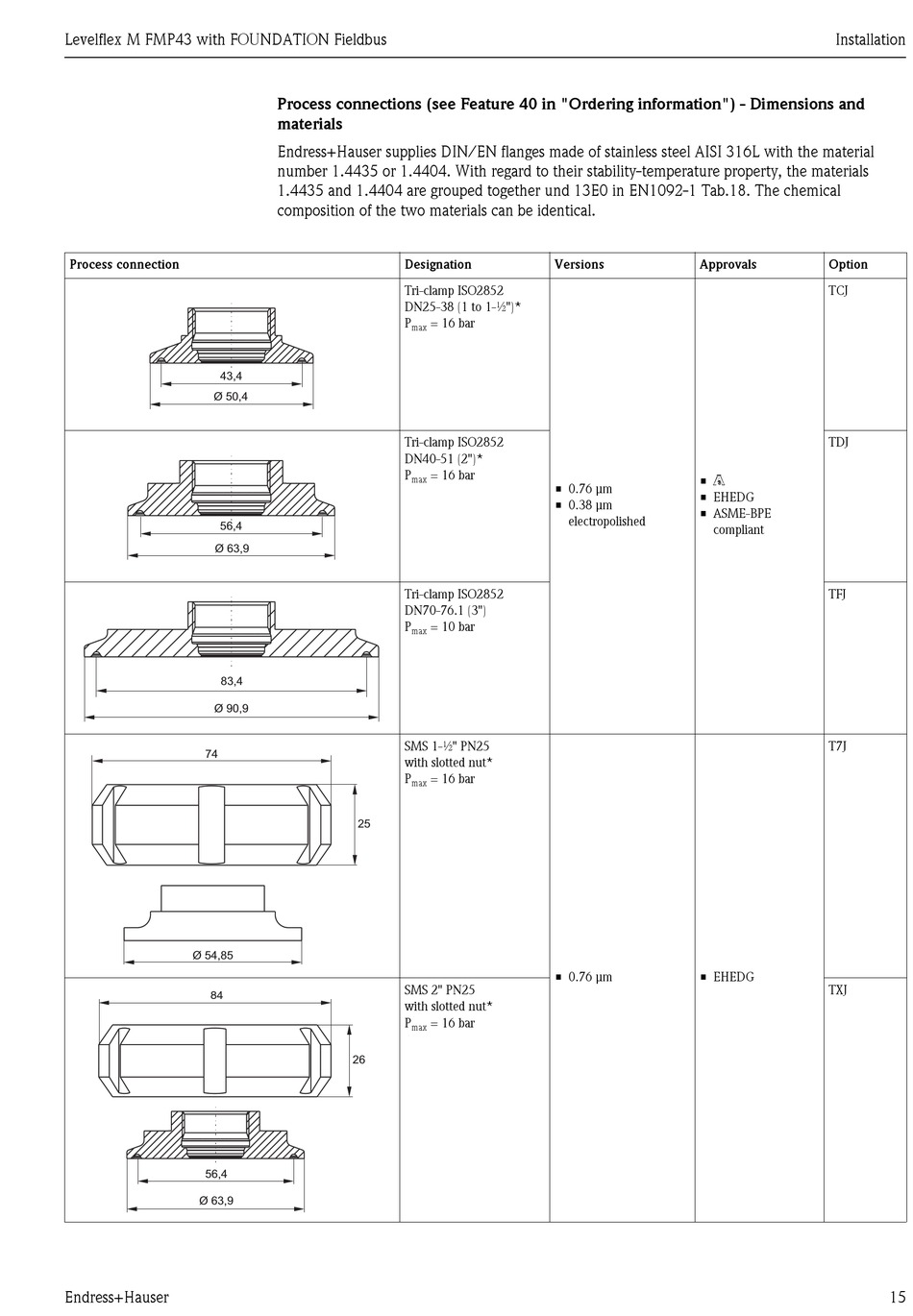

Process connections (see Feature 40 in "Ordering information") - Dimensions and
materials
Endress+Hauser supplies DIN/EN flanges made of stainless steel AISI 316L with the material
number 1.4435 or 1.4404. With regard to their stability-temperature property, the materials
1.4435 and 1.4404 are grouped together und 13E0 in EN1092-1 Tab.18. The chemical
composition of the two materials can be identical.
Designation
Tri-clamp ISO2852
DN25-38 (1 to 1-½")*
P
= 16 bar
max
Tri-clamp ISO2852
DN40-51 (2")*
P
= 16 bar
max
Tri-clamp ISO2852
DN70-76.1 (3")
P
= 10 bar
max
SMS 1-½" PN25
with slotted nut*
P
= 16 bar
max
25
SMS 2" PN25
with slotted nut*
P
= 16 bar
max
26
Versions
Approvals
• 5
• 0.76 μm
• EHEDG
• 0.38 μm
• ASME-BPE
electropolished
compliant
• 0.76 μm
• EHEDG
Installation
Option
TCJ
TDJ
TFJ
T7J
TXJ
15
