Installation
65
wall
ENDRESS+HAUSER
Levelflex M
!
22

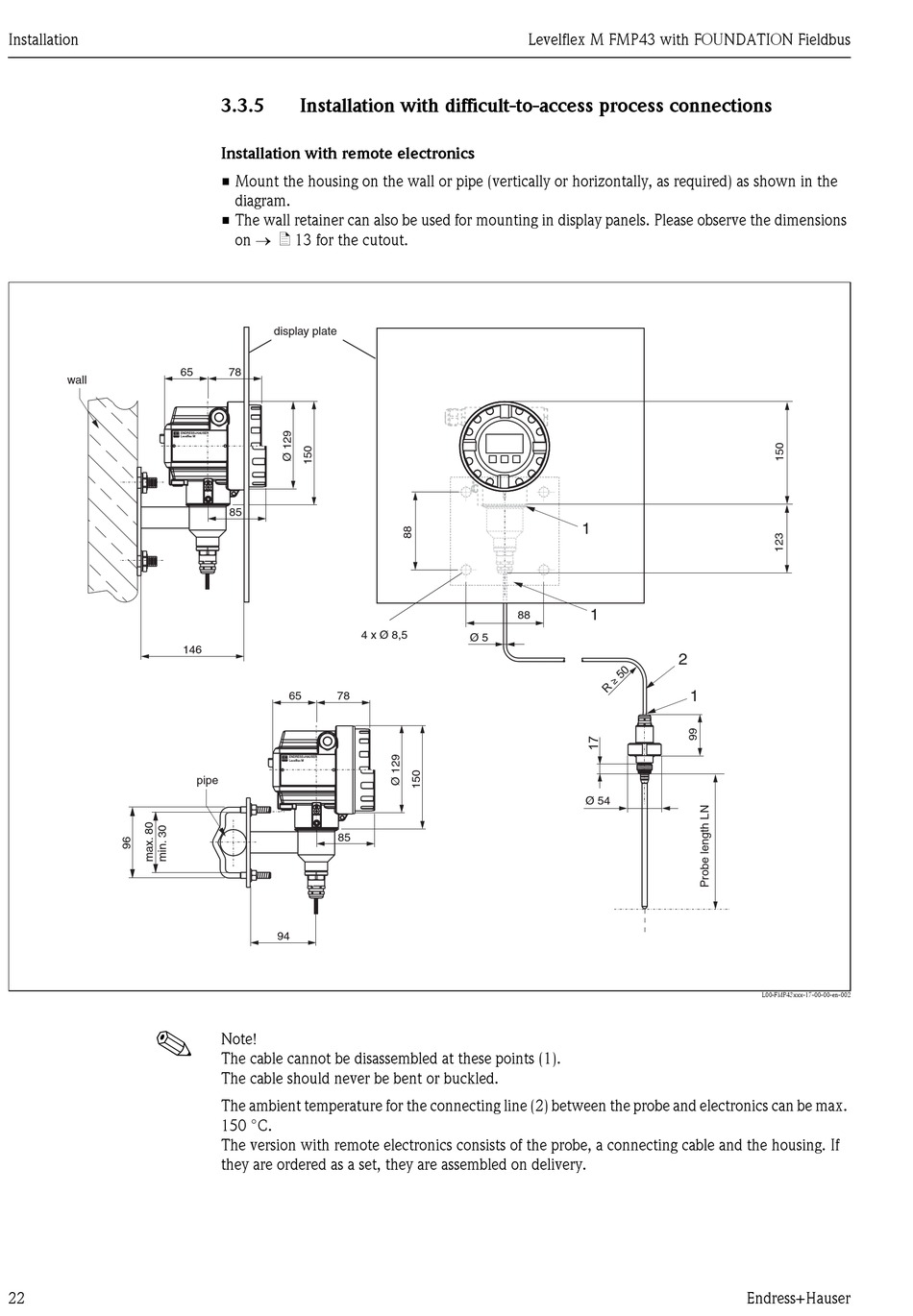

3.3.5 Installation with difficult-to-access process connections
Installation with remote electronics
• Mount the housing on the wall or pipe (vertically or horizontally, as required) as shown in the
diagram.
• The wall retainer can also be used for mounting in display panels. Please observe the dimensions
on → ä 13 for the cutout.
display plate
78
85
146
65 78
ENDRESS+HAUSER
Levelflex M
pipe
85
94
Note!
The cable cannot be disassembled at these points (1).
The cable should never be bent or buckled.
The ambient temperature for the connecting line (2) between the probe and electronics can be max.
150 °C.
The version with remote electronics consists of the probe, a connecting cable and the housing. If
they are ordered as a set, they are assembled on delivery.
Levelflex M FMP43 with FOUNDATION Fieldbus
88
4 x Ø 8,5
Ø 5
1
1
2
1
Ø 54
Endress+Hauser
L00-FMP43xxx-17-00-00-en-002
