Technical data
Tolerance of probe length
Weight
Material
Process connection
Probe
!
94

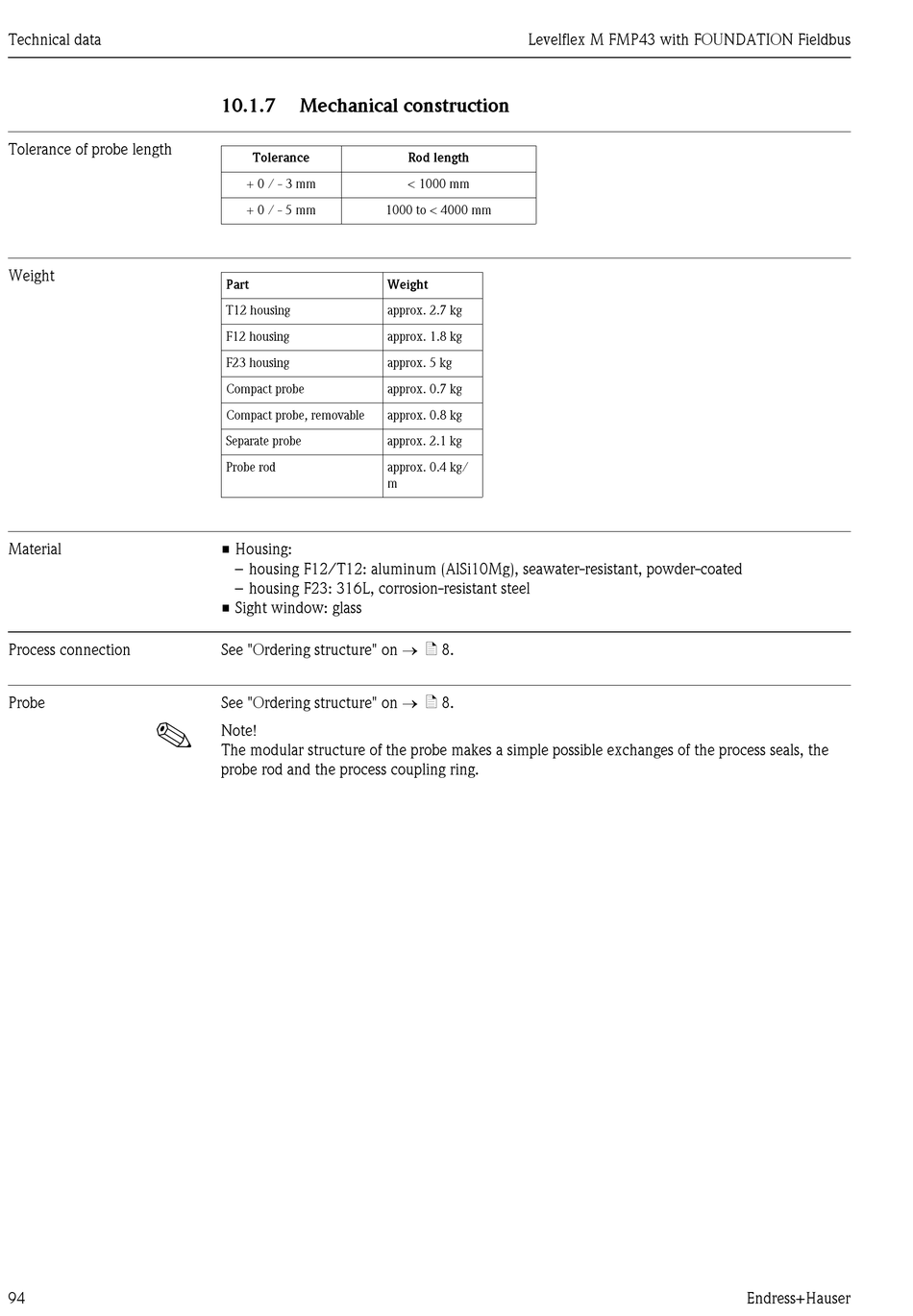

10.1.7 Mechanical construction
Tolerance
+ 0 / - 3 mm
+ 0 / - 5 mm 1000 to < 4000 mm
Part Weight
T12 housing approx. 2.7 kg
F12 housing approx. 1.8 kg
F23 housing approx. 5 kg
Compact probe approx. 0.7 kg
Compact probe, removable approx. 0.8 kg
Separate probe approx. 2.1 kg
Probe rod approx. 0.4 kg/
m
• Housing:
– housing F12/T12: aluminum (AlSi10Mg), seawater-resistant, powder-coated
– housing F23: 316L, corrosion-resistant steel
• Sight window: glass
See "Ordering structure" on → ä 8.
See "Ordering structure" on → ä 8.
Note!
The modular structure of the probe makes a simple possible exchanges of the process seals, the
probe rod and the process coupling ring.
Levelflex M FMP43 with FOUNDATION Fieldbus
Rod length
< 1000 mm
Endress+Hauser
