Installation
!
18
3.3

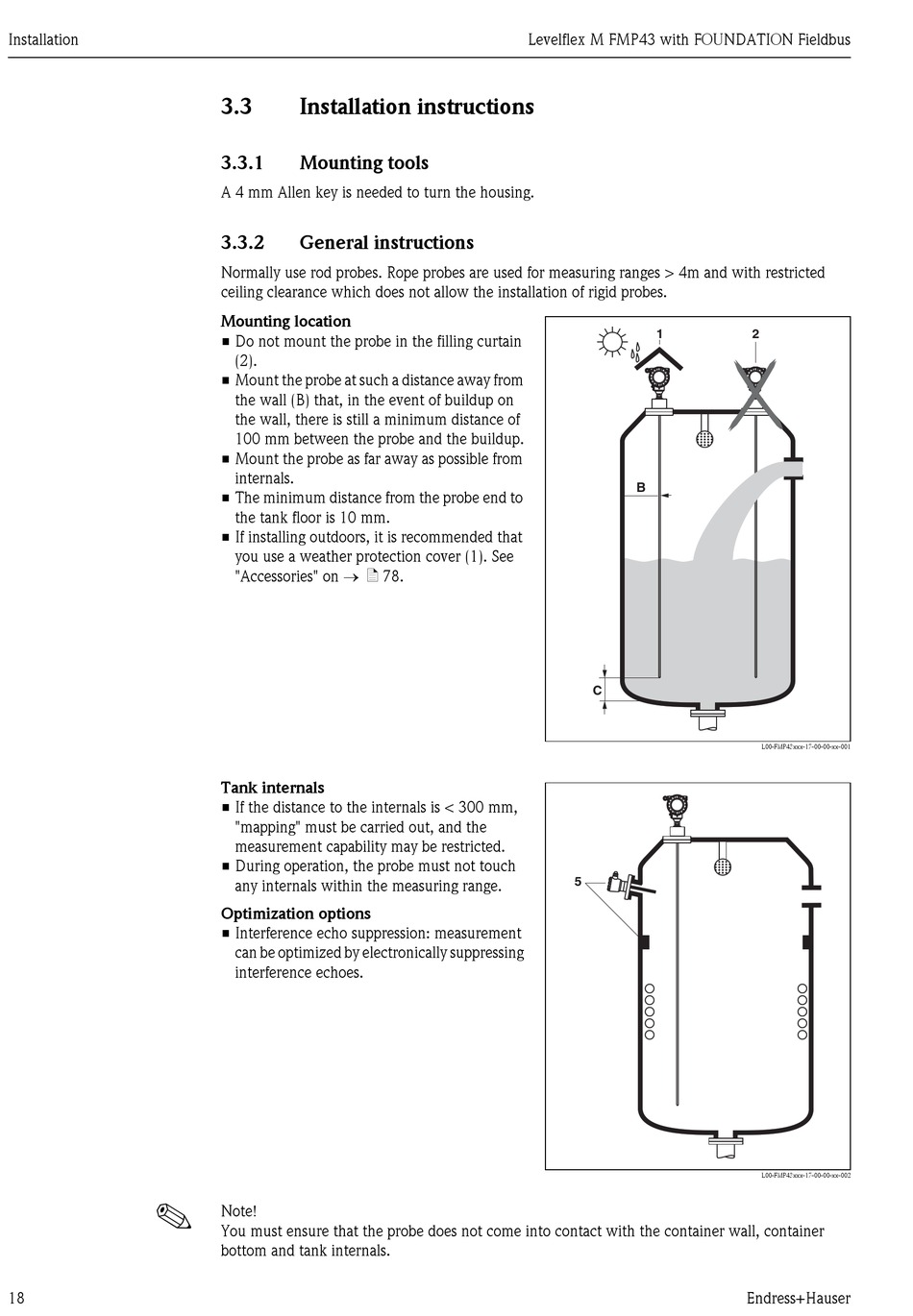

Installation instructions

3.3.1 Mounting tools
A 4 mm Allen key is needed to turn the housing.
3.3.2 General instructions
Normally use rod probes. Rope probes are used for measuring ranges > 4m and with restricted
ceiling clearance which does not allow the installation of rigid probes.
Mounting location
• Do not mount the probe in the filling curtain
(2).
• Mount the probe at such a distance away from
the wall (B) that, in the event of buildup on
the wall, there is still a minimum distance of
100 mm between the probe and the buildup.
• Mount the probe as far away as possible from
internals.
• The minimum distance from the probe end to
the tank floor is 10 mm.
• If installing outdoors, it is recommended that
you use a weather protection cover (1). See
"Accessories" on → ä 78.
Tank internals
• If the distance to the internals is < 300 mm,
"mapping" must be carried out, and the
measurement capability may be restricted.
• During operation, the probe must not touch
any internals within the measuring range.
Optimization options
• Interference echo suppression: measurement
can be optimized by electronically suppressing
interference echoes.
Note!
You must ensure that the probe does not come into contact with the container wall, container
bottom and tank internals.
Levelflex M FMP43 with FOUNDATION Fieldbus
1
B
C
5
2
L00-FMP43xxx-17-00-00-xx-001
L00-FMP43xxx-17-00-00-xx-002
