© Edwards Limited 2007. All rights reserved.
Edwards and the Edwards logo are trade marks of Edwards Limited.

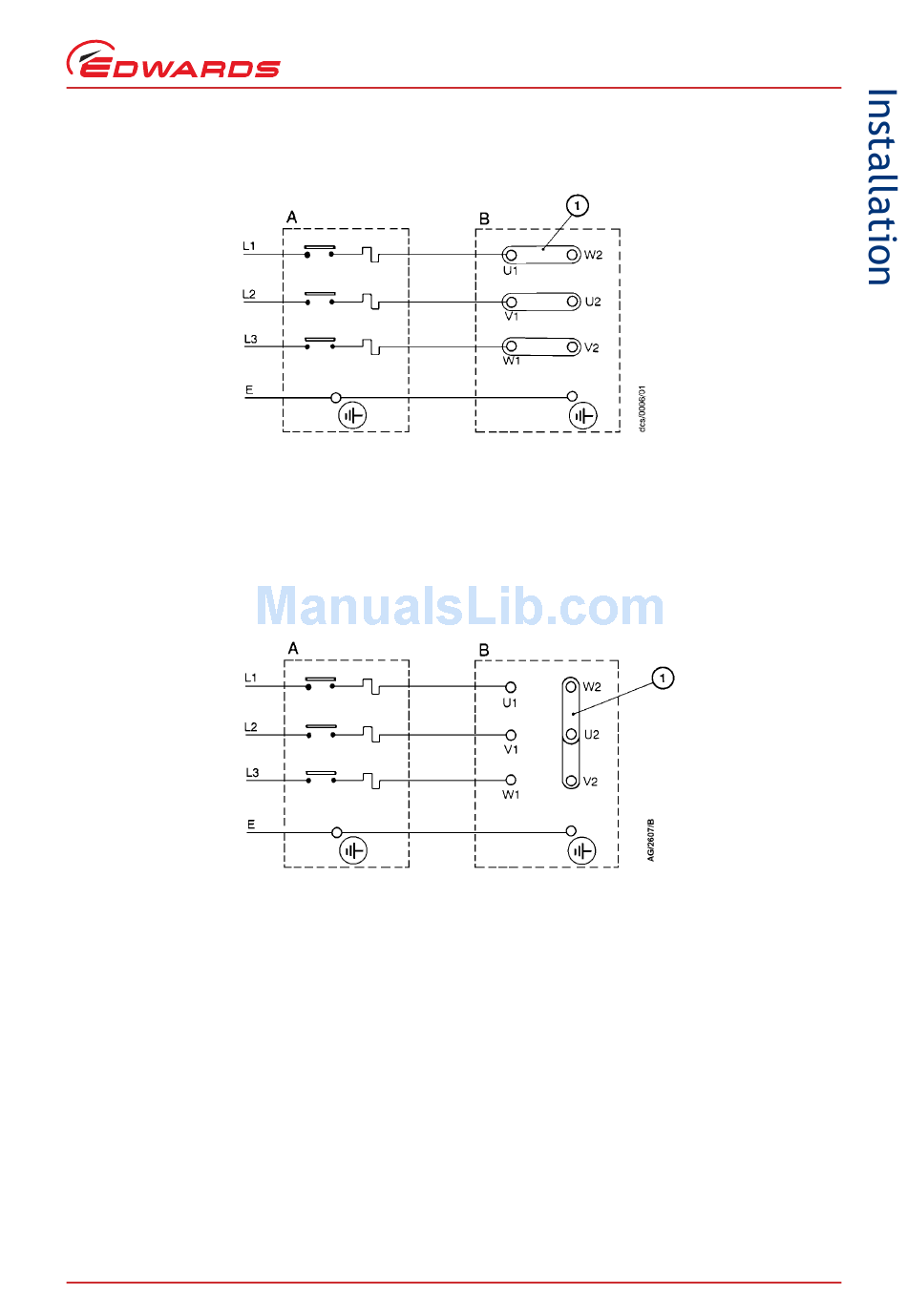

Figure 5 - Three-phase electrical connections: 200–230 V
A. Starter/contactor
B. Motor terminal-box
Figure 6 - Three-phase electrical connections: 380–460 V
A. Starter/contactor
B. Motor terminal-box
1. Links
1. Links
A652–01–880 Issue S
Page 23
