7.8

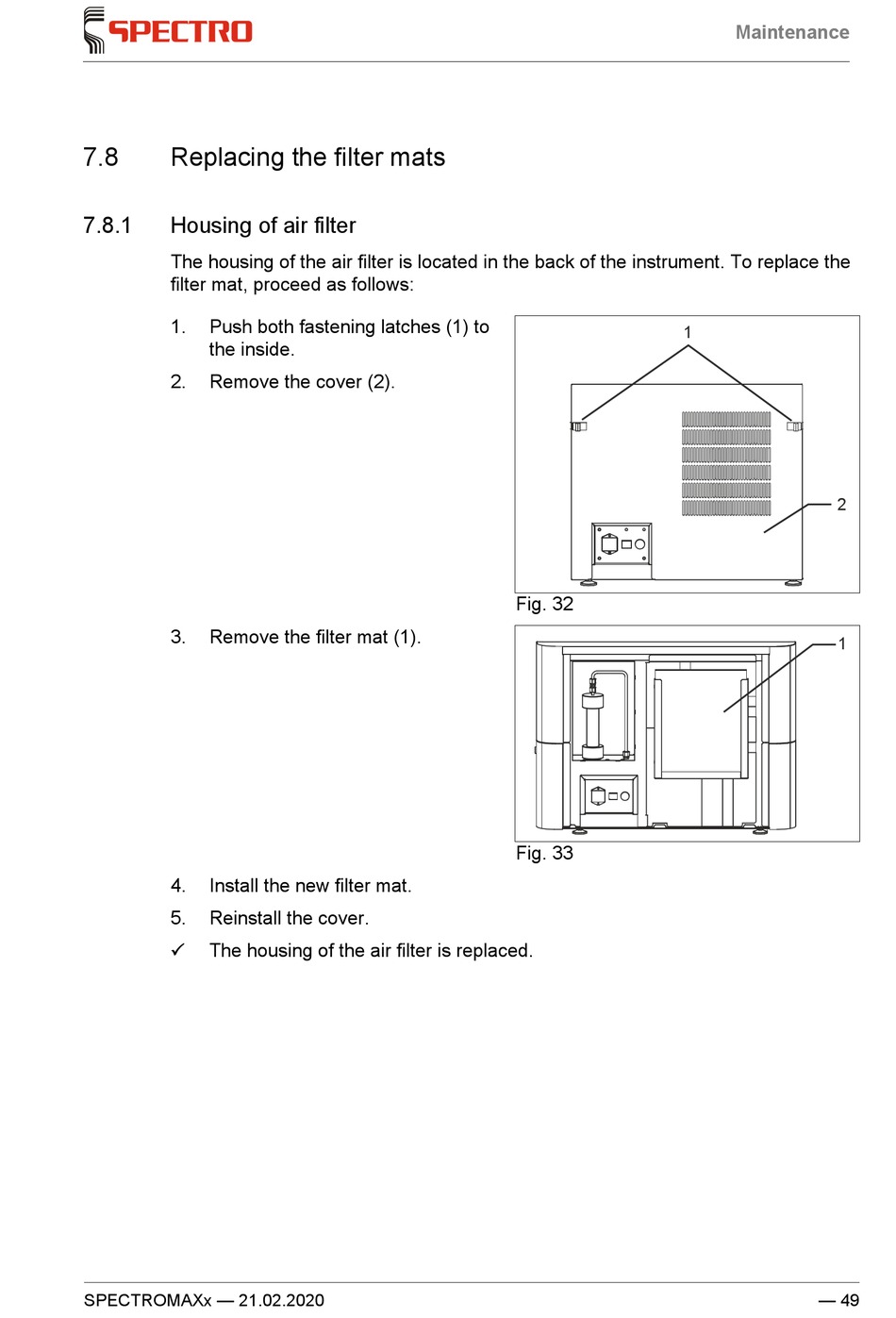

Replacing the filter mats

7.8.1

Housing of air filter

The housing of the air filter is located in the back of the instrument. To replace the
filter mat, proceed as follows:
1. Push both fastening latches (1) to
the inside.
2. Remove the cover (2).
3. Remove the filter mat (1).
4. Install the new filter mat.
5. Reinstall the cover.
The housing of the air filter is replaced.

SPECTROMAXx — 21.02.2020
1
Fig. 32
Fig. 33
Maintenance
2
1
— 49
