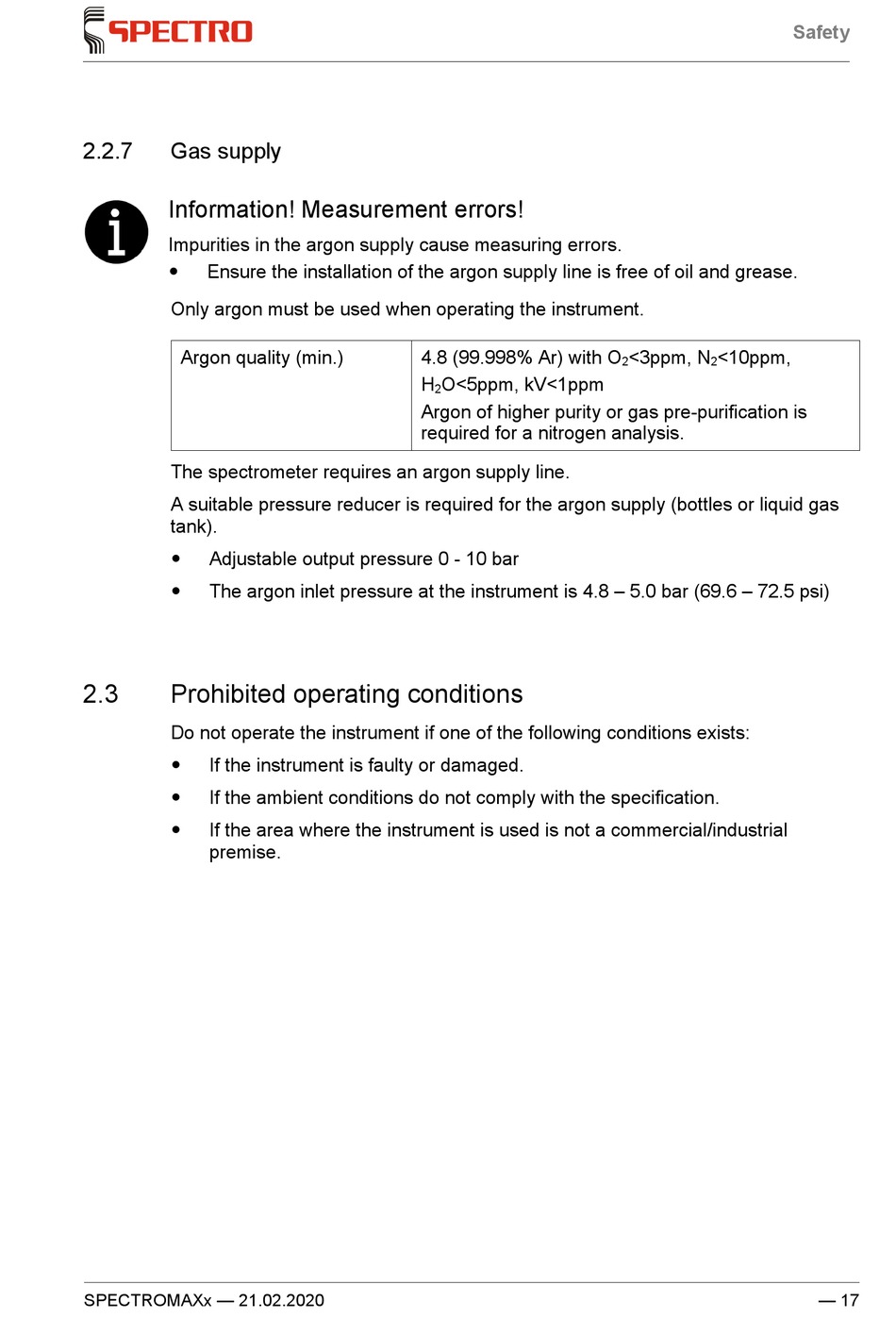

2.2.7

Gas supply

Information! Measurement errors!
Impurities in the argon supply cause measuring errors.
Ensure the installation of the argon supply line is free of oil and grease.

Only argon must be used when operating the instrument.
Argon quality (min.)
The spectrometer requires an argon supply line.
A suitable pressure reducer is required for the argon supply (bottles or liquid gas
tank).
Adjustable output pressure 0 - 10 bar

The argon inlet pressure at the instrument is 4.8 – 5.0 bar (69.6 – 72.5 psi)

2.3

Prohibited operating conditions

Do not operate the instrument if one of the following conditions exists:
If the instrument is faulty or damaged.

If the ambient conditions do not comply with the specification.

If the area where the instrument is used is not a commercial/industrial

premise.
SPECTROMAXx — 21.02.2020
4.8 (99.998% Ar) with O
H O<5ppm, kV<1ppm
2
Argon of higher purity or gas pre-purification is
required for a nitrogen analysis.
<3ppm, N <10ppm,
2 2
Safety
— 17
