Spark Stand - SPECTRO SPECTROMAXx Original Operating Instructions

Description of instrument
1.3.5

Spark stand

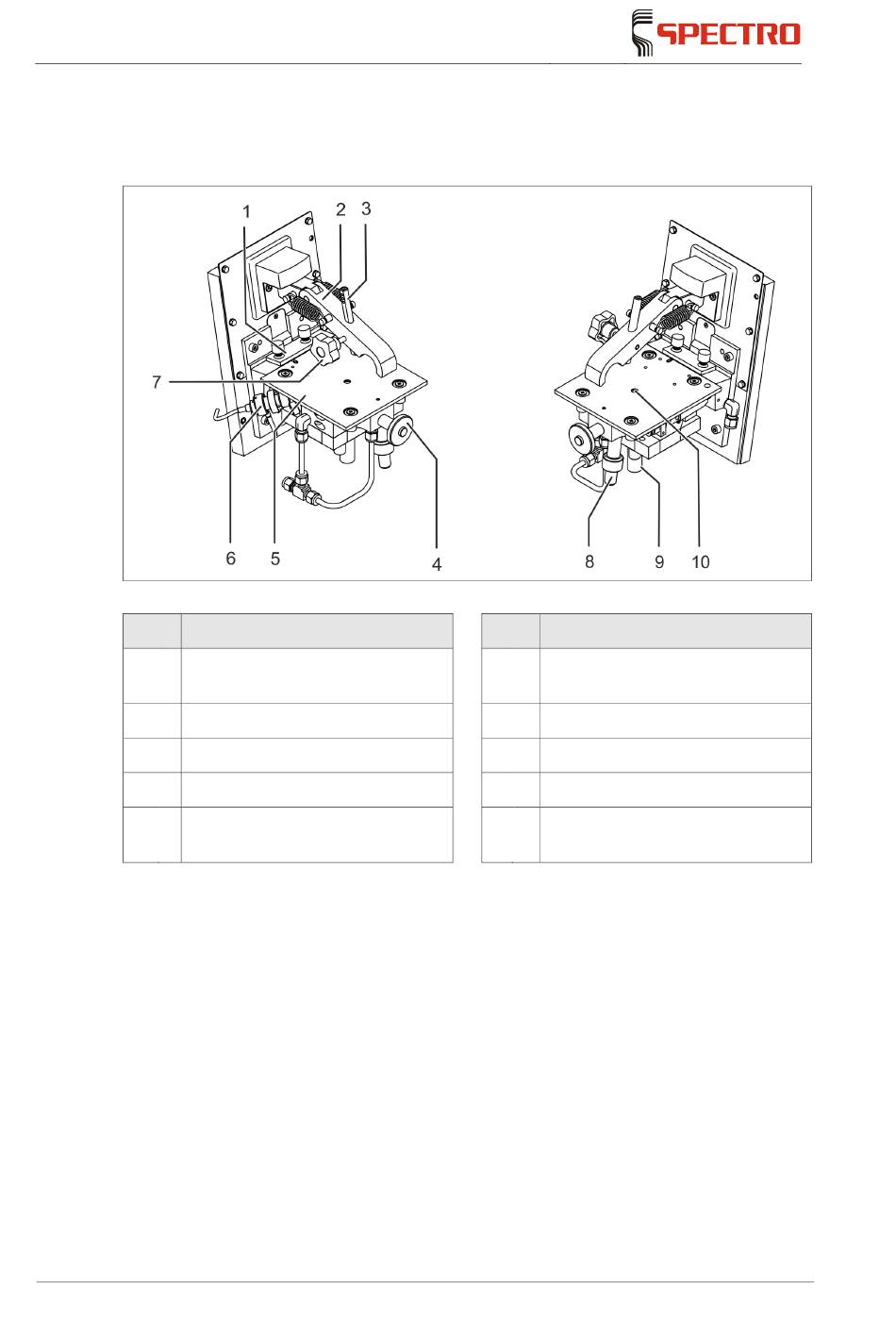

Fig. 5
No. Component
1 Replaceable window (in the light
channel to the UV optics)
2 Clamp (swinging)
3 Contact (movable)
4 Spacer
5 Spark stand plate
— 10
No. Component
6 Holder for fiber-optics to air optics
7 Locking wheel for contact
8 Outlet to filter system
9 Electrode holder
10 Electrode and spark stand insert
(below the spark stand plate)
