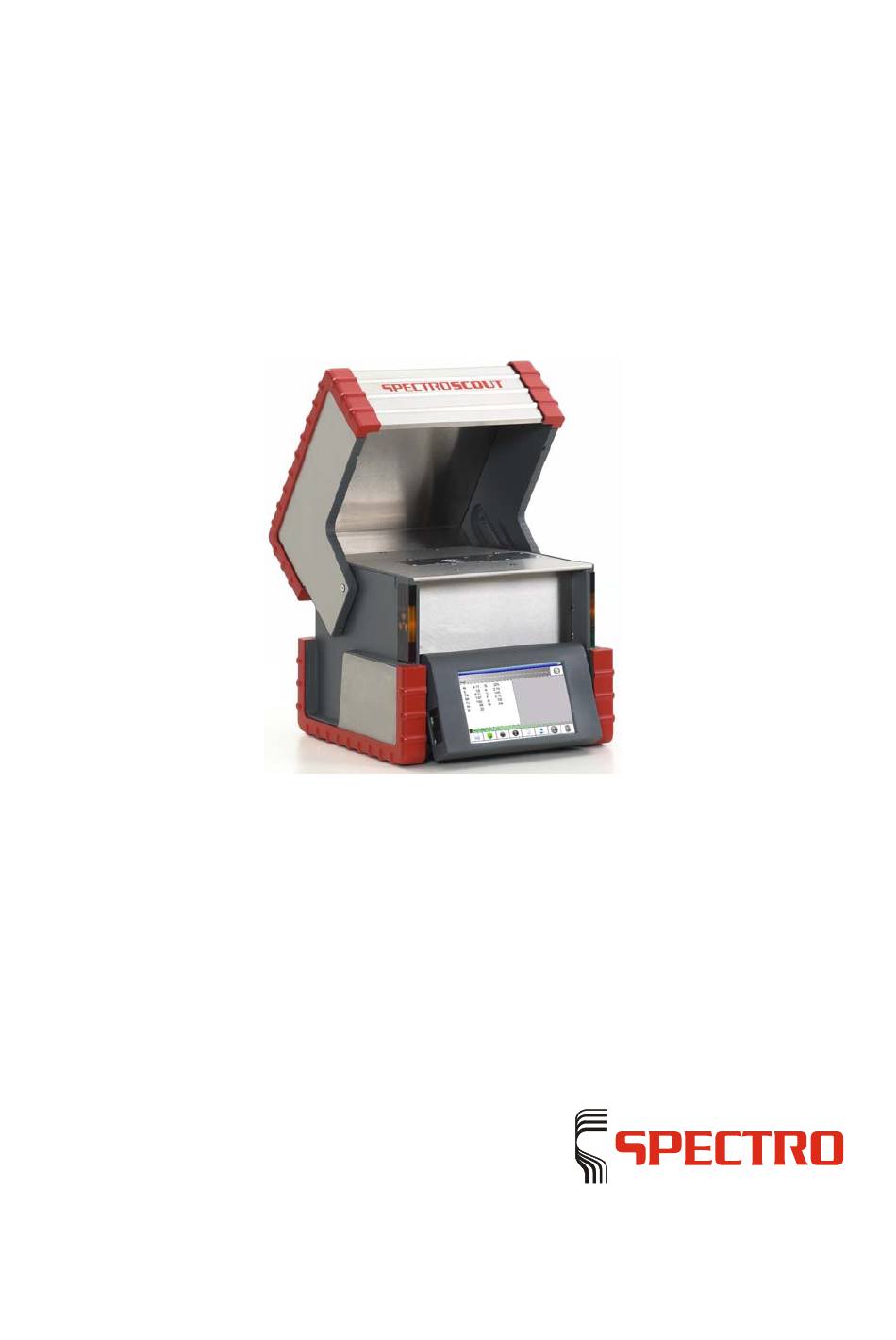

- Page 1 Das v erk nüpfte Bild k ann nicht angezeigt werden. Möglicherweise wurde die Datei v erschoben, umbenannt oder gelöscht. Stellen Sie sicher, dass die Verk nüpfung auf die k orrek te Datei und den k orrek ten Speicherort zeigt. SPECTROSCOUT Portable X-ray fluorescence...
-
Page 3: Table Of Contents
Notebook (optional) ..................... 24 Measuring procedure ......................25 Maintenance by the operator ................27 Operator maintenance plan ....................27 Standardizing the measuring device (ICALization) ............28 SPECTROSCOUT — 07.09.2015 — 3... - Page 4 Environmental screening / Geochemical exploration instrument variant .... 29 Install the sample spinner/vacuum sub-assembly ............30 Troubleshooting ....................31 Spare parts and consumables ................34 De-commissioning .................... 34 — 4 SPECTROSCOUT — 07.09.2015...
-
Page 5: Description Of Instrument
The measured values are compared with these data. After the measurement is complete, the results relating to an unknown sample are displayed on the screen. The sample material can be solid, liquid or a powder. SPECTROSCOUT — 07.09.2015 — 5... -
Page 6: Overview
Overview 1.3.1 Configuration The SPECTROSCOUT is available in two different versions—one for the use outdoors and the second for the application in a laboratory and production (at-line). Depending on the area of application, the instrument is equipped with the following... -
Page 7: Instrument
Rear side Fig. 1 Component Component Sample chamber lid ON button Handle Power supply connection X-ray radiation indicator Vacuum pump connection Shutter open/closed (indicator) Gas input /vacuum connection point ePC closed ePC opened Measurement chamber plate SPECTROSCOUT — 07.09.2015 — 7... -
Page 8: Lithium Battery
Description of instrument Lithium battery The lithium battery in the SPECTROSCOUT at-line is optional. Caution! Lithium batteries Lithium batteries contain acid. Lithium batteries may explode if exposed to fire or excessive heat. Never use damaged lithium batteries. ... - Page 9 Note Fully charge the lithium battery of the SPECTROSCOUT prior to using it for the first time. The lithium battery can only be charged at a temperature ranging from 0°C to ...
-
Page 10: Safety
Caution! Risk of crushing injuries! Notice! Warns of activities or conditions that may adversely affect the safety or function of the instrument. Note Displays information that is important for the correct and safe use of the instrument — 10 SPECTROSCOUT — 07.09.2015... -
Page 11: User Information
operating utilities. Comply with the safety instructions when handling and preparing the samples (material safety data sheet). The contact with certain metals, plastics, powders, liquids, or other materials can be hazardous to health. SPECTROSCOUT — 07.09.2015 — 11... -
Page 12: Intended Use
This ensures that no broken beryllium window pieces can leave the instrument. Switch off the instrument and inform the service department of SPECTRO. The detector can no longer be used. — 12 SPECTROSCOUT — 07.09.2015... -
Page 13: Radiation Protection Advice
In Germany, the operation of the unit requires official approval. It may also require official approval in other countries. Please observe the national safety and approval regulations in force in your country and state! Please contact the responsible local approval authority. SPECTROSCOUT — 07.09.2015 — 13... -
Page 14: Technical Data
-20° to +60°C, -5°F to +140°F Stability (according to DIN EN 61010-1) Protection class SPECTROSCOUT: IP 44, DIN 40050 SPECTROSCOUT at-line: IP 31, DIN 40050 Option: Helium gas flush Pressure 1 to 3 bar, 15 to 44 psi ≥ 99.996% (4.6) -
Page 15: Transportation/Setting-Up
You should therefore avoid shocks to the instrument when taking measurements. Avoid mechanical impacts. Measurement errors may result from temperature differences inside the instrument. Position yourself and the instrument so that it cannot heat up on one side only. SPECTROSCOUT — 07.09.2015 — 15... -
Page 16: Transport
Follow the software program prompt and close the ePC. The software program is shutting down. The sample chamber lid moves into the transport position (not applicable to SPECTROSCOUT at-line). The instrument is ready for transport. — 16 SPECTROSCOUT — 07.09.2015... -
Page 17: Gas Supply (Optional)
A suitable pressure reducer is required for the gas supply. Output pressure: 1 – 3 bar; (15 – 44 psi) Gas is supplied through a PTFE hose included in SPECTRO's scope of supply. Dimensions: 6 x 1 mm, length 2 m ... -
Page 18: Sample Spinner (Optional)
Measurement chamber plate Sample spinner cup Notebook (optional) The notebook can be used for transferring data from SPECTROSCOUT. File formats are "*.xml" and "*.smp". The XRF-Analyser Pro can furthermore be used for configuring customer-specific calibrations. Please contact our application specialists for this purpose. -
Page 19: Initial Start-Up
Before switching on the instrument, proceed as follows: Ensure that the lithium battery is charged or that the instrument is connected to the power supply; the instrument is sitting in stable position. The instrument is ready for use. SPECTROSCOUT — 07.09.2015 — 19... -
Page 20: Operation
Operation Operation Overview of controls Fig. 4 Control element Function Integrated PC with touch screen ON button Used to switch on the instrument. Notebook Option For data editing and processing — 20 SPECTROSCOUT — 07.09.2015... -
Page 21: Switching On The Instrument
To switch on the instrument, proceed as follows: Press the ON button of the instrument. The sample chamber lid moves into the transport position (not applicable to SPECTROSCOUT at-line). Open the ePC compartment. The software program starts up automatically. ... -
Page 22: Switching Offthe Instrument
Remove any placed sample. Following the removal, confirm the corresponding prompt in the software program. The software program is shutting down. The sample chamber lid moves into the transport position (not applicable to SPECTROSCOUT at-line). The instrument is switched off. — 22 SPECTROSCOUT — 07.09.2015... -
Page 23: Displays
X-ray radiation indicator 1. Lights up yellow when the X-ray tube is in operation. 2. Red "Shutter" lamp lights up when the shutter is open. 3. Green "Shutter" lamp lights up when the shutter is closed. SPECTROSCOUT — 07.09.2015 — 23... -
Page 24: Screen
A holder for the plastic pen (stylus) is located at the right-hand, bottom side of the ePC. 6.4.3 Notebook (optional) Use the integrated touch pad for operation. SPECTROSCOUT can be connected via: Ethernet cable Wireless LAN Any further information regarding the "Notebook" option can be found in the separate "XRF Analyser Pro User Guide"... -
Page 25: Measuring Procedure
Enter a sample name via the software program. Press the Start button. The measurement progress is indicated in percent. Intermediate results are indicated while the measurement is taken. The measurement is complete. SPECTROSCOUT — 07.09.2015 — 25... - Page 26 Note Different adhesive tape or protective film must be used, depending on the application. Please use only adhesive tape authorized by SPECTRO (part no. 80001098). The use of other adhesive tapes may lead to measurement errors. Ensure that you use the correct and clean protective film.
-
Page 27: Maintenance By The Operator
In order to ensure the availability and operational safety of the equipment, we recommend having the system checked for correct operation and performance at least once per year by specialized technicians. To find contact addresses of service organizations authorized by SPECTRO go to www.spectro.com Operator maintenance plan Warning! Ionizing radiation! An X-ray tube is provided inside the unit. -
Page 28: Standardizing The Measuring Device (Icalization)
X-ray tube off. The standardization is performed automatically. After the standardization is complete, a protocol is created and stored in the subdirectory "\ICAL\Log\". The instrument is now standardized. — 28 SPECTROSCOUT — 07.09.2015... -
Page 29: Replace The Protective Film
Ensure that the protective film stays free of dirt (finger Fig. 6 prints) and is positioned smoothly and tightly between the film holders. The protective film has been replaced. SPECTROSCOUT — 07.09.2015 — 29... -
Page 30: Install The Sample Spinner/Vacuum Sub-Assembly
/ vacuum assembly (3). Connect the sample spinner motor with the instrument. The assembly has been installed. To remove the sample spinner / vacuum assembly, proceed in reverse order as described under installing it. — 30 SPECTROSCOUT — 07.09.2015... -
Page 31: Troubleshooting
The protective film is Replace the film. contaminated. The protective film is torn. Replace the film. The standardization Repeat the standardization procedure (ICAL) was procedure (ICAL). unsuccessful. SPECTROSCOUT — 07.09.2015 — 31... - Page 32 Repeat the measurement in strict measurement screen. several measurement accordance with the preset total conditions was measuring time. prematurely canceled. Instrument/PC no longer "Crash". Force instrument to shut down by responds. pressing the ON button (10 sec.). — 32 SPECTROSCOUT — 07.09.2015...
- Page 33 After the sample or sample spinner have been removed, (not applicable to switch off the software program SPECTROSCOUT at-line for transport properly. SPECTROSCOUT — 07.09.2015 — 33...
-
Page 34: Spare Parts And Consumables
Spare parts and consumables You can find the spare parts and consumables for this instrument under "Support - Parts Catalogue" (Service – Parts Catalogue) on our website at www.spectro.com. Use only genuine spare parts for repairing the instrument. The use of non-genuine spare parts will make the CE Declaration of Conformity null and void.
