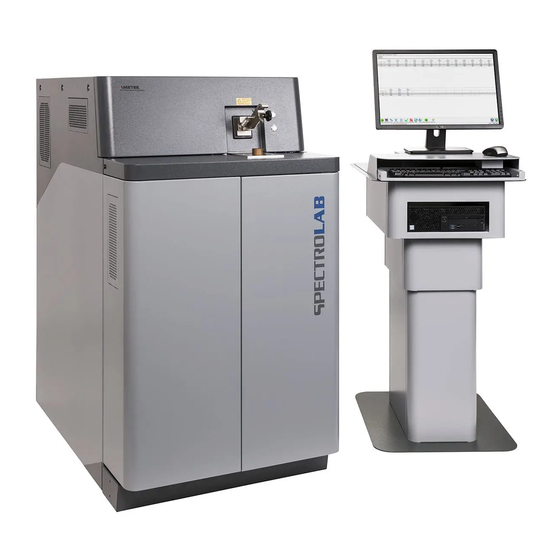

Summary of Contents for SPECTRO SPECTROLAB

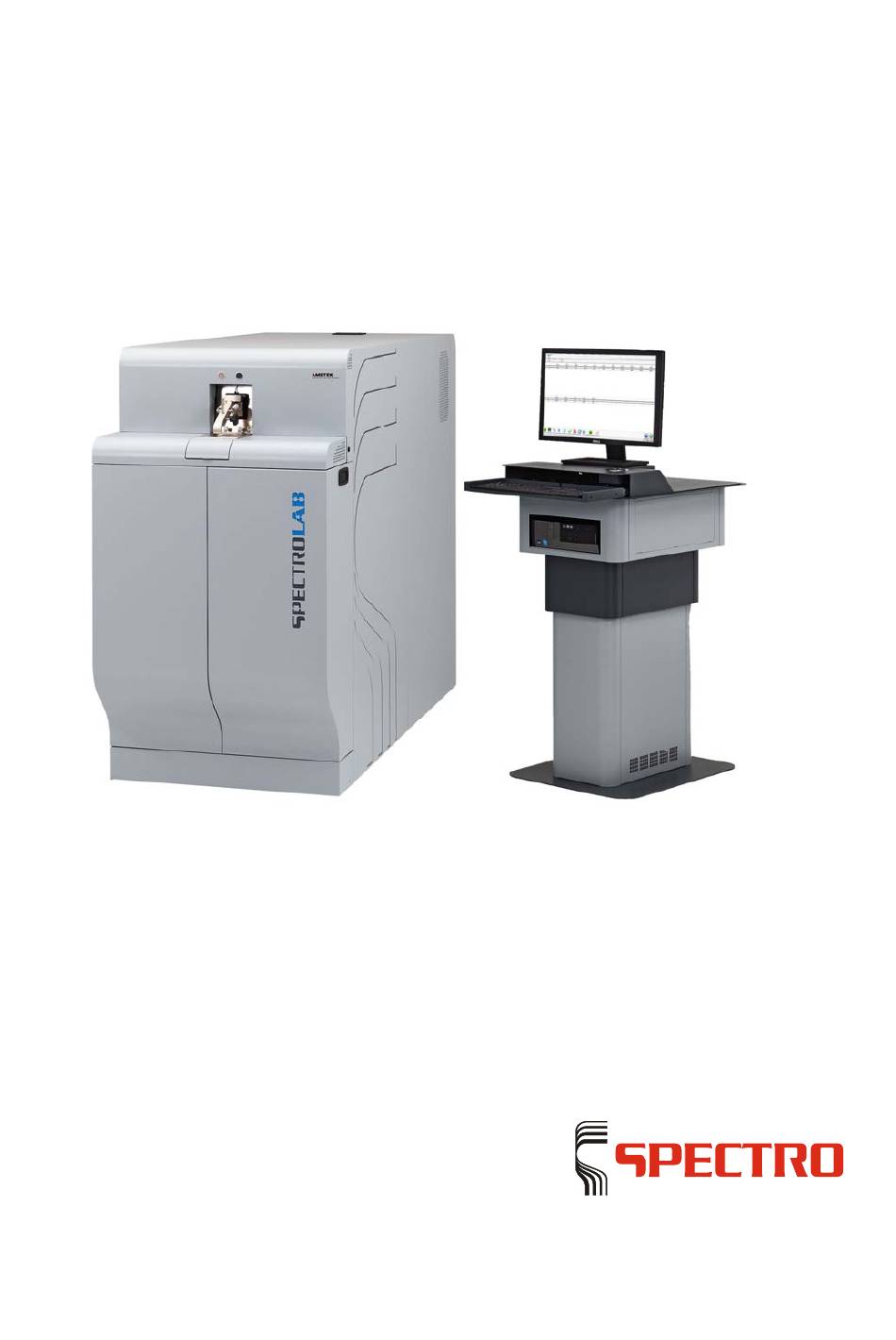

- Page 1 Das v erk nüpfte Bild k ann nicht angezeigt werden. Möglicherweise wurde die Datei v erschoben, umbenannt oder gelöscht. Stellen Sie sicher, dass die Verk nüpfung auf die k orrek te Datei und den k orrek ten Speicherort zeigt. SPECTROLAB Stationary metal analyzer...
-
Page 3: Table Of Contents
Maintenance ..................... 26 Maintenance schedule ...................... 26 Maintenance Reminder ..................... 26 General Maintenance......................27 Clean the light inlet window of the optics (MgF2) ............. 28 SPECTROLAB — 30.07.2015 — 3... - Page 4 Status messages ....................42 Troubleshooting ....................43 Error messages ......................... 45 Diagnosis tool ........................45 Spare parts and consumables ................46 Pos: De-commissioning ..................46 — 4 SPECTROLAB — 30.07.2015...
-
Page 5: Description Of Instrument
Calibration data are already stored in the unit's memory. The measured values are compared with these data. The measured values are converted into concentrations and then displayed on the screen. SPECTROLAB — 30.07.2015 — 5... -
Page 6: Overview
Unlocking mechanism for Door opener (access to gas- protective cover washing bottle and filter bottle) Filter mat for cooling system Gas-washing bottle and filter bottle (inside instrument) On/Off switch Access to spacer Spark discharge (Plasma generator) — 6 SPECTROLAB — 30.07.2015... -
Page 7: Instrument (Back)
Description of instrument 1.3.2 Instrument (back) Fig. 2 Component Component Argon connection Electronic unit with fuse PC data transmission connection SPECTROLAB — 30.07.2015 — 7... -
Page 8: Spark Stand
Status display of spark discharge Sparky stand plate (Plasma generator) Clamp (swinging) Optical fibre for air optical system (only for LAVM12) Contact (movable) Outlet to filter system Replaceable window (in the light Electrode holder channel to the optical system) — 8 SPECTROLAB — 30.07.2015... -
Page 9: Safety
Caution! UV radiation! Notice! Warns of activities or conditions that may adversely affect the safety or function of the instrument. Note Displays information that is important for the correct and safe use of the instrument SPECTROLAB — 30.07.2015 — 9... -
Page 10: User Information
All maintenance activities must be recorded. This will maintain the operational safety of the instrument. Only genuine spare parts must be used when repairing the instrument. The use of non-genuine spare parts will make the CE Declaration of Conformity null and void. — 10 SPECTROLAB — 30.07.2015... -
Page 11: Intended Use
The instrument is operated with argon. Argon is heavier than air. It can accumulate in a closed room, especially on the floor or lower-lying areas. Ensure to provide adequate ventilation. If necessary, install oxygen sensors. SPECTROLAB — 30.07.2015 — 11... - Page 12 Never touch the electrode with your bare hands, even after shutting down the spectrometer. Always use pliers. A sample can get hot if it is measured several times. Touch the sample only after is has sufficiently cooled. — 12 SPECTROLAB — 30.07.2015...
- Page 13 Content of gas cleaning cartridge: The associated safety data sheet is available at http://MSDS.spectro.com. High-voltage ignition pulse, Burning voltage Spark mode Spark mode SPECTROLAB 1 – 12 kV, type 5 kV 30 – 240 V, type 50 V (LAVM12/LACM12) SPECTROLAB — 30.07.2015 — 13...
-
Page 14: Technical Data
Argon flow rates Spark stand flushing Stand-by (low flow) 5 L/h (LACM12) 30 L/h Constant flow 230 L/h (LAVM12) Analytic flow 140 L/h (LACM12) Storage conditions Ambient temperature -15 – 45°C; 5 – 113°F — 14 SPECTROLAB — 30.07.2015... -
Page 15: Transportation/Setting-Up
The clearance from other objects must be at least 60 cm (including the rear). In addition to the space required by the instrument, some space is needed for the gas supply, unless fixed gas connections are available. SPECTROLAB — 30.07.2015 — 15... -
Page 16: Space Requirements
Transportation/Setting-up Space requirements Storage Storage conditions: The instrument must be stored in a dry place Room temperature -15°C – +45°C (5°F – 113°F) Avoid storing the instrument at very low temperatures. — 16 SPECTROLAB — 30.07.2015... -
Page 17: Gas Supply
Adjustable output pressure 0 – 10 bar The argon inlet pressure at the instrument is 5 bar (72 psi) A copper tube for the argon supply is provided with the delivery of the SPECTRO: Diameter 6 x 1 mm, length 3 m ... -
Page 18: Initial Start-Up
Set the argon pressure to 5.0 bar (72 psi). If the argon pressure is not properly set, turbulences result in the spark stand insert. Thus, correct measuring results cannot be obtained. The instrument is ready for use. — 18 SPECTROLAB — 30.07.2015... -
Page 19: Operation
Operation Operation Overview of controls Fig. 4 Control element Function Switch Activates and deactivates the spark discharge and the argon flow, see chapter 6.2. SPECTROLAB — 30.07.2015 — 19... -
Page 20: Switching On The Instrument
When the argon flow is automatically activated again is determined in the "Argon saving module" screen dialog. Immediately thereafter, the instrument is ready for operation. For a detailed description, refer to the online Help of the instrument. — 20 SPECTROLAB — 30.07.2015... -
Page 21: Switching Offthe Instrument
In order to switch off the Plasma generator, press the following buttons: The argon saving module is activated. In order to switch the instrument completely off, remove the power plug. The instrument is switched off. SPECTROLAB — 30.07.2015 — 21... -
Page 22: Measuring Procedure
Note! Measuring errors may occur! A flawed initial startup, operation or sample preparation can lead to analytical measurement errors. Therefore, ensure all necessary requirements for a correct measurement are met. — 22 SPECTROLAB — 30.07.2015... -
Page 23: Preparing The Measuring Procedure
Proceed as follows to re-profile the optical systems: Call up the re-profiling mode. Follow the instructions on the screen and perform the necessary measurements with the profiling samples. Re-profiling the optical systems is now complete. SPECTROLAB — 30.07.2015 — 23... -
Page 24: Standardizing The Measuring Device (Only Lavm12)
When changing the base, the spark stand must be cleaned in order to avoid memory effects, see page 31. Change the spark stand insert, the electrode, and the electrode brush. Preparation of the instrument for measuring another base is now complete. — 24 SPECTROLAB — 30.07.2015... -
Page 25: Proceed With The Measurement
Rotate the sample slightly for each further measurement. The respective burn spots must not overlap. Use "Finish" or press the respective function key to end the series of measurement. The measurement is complete. SPECTROLAB — 30.07.2015 — 25... -
Page 26: Maintenance
To find contact addresses of service organizations authorized by SPECTRO go to www.spectro.com Maintenance Reminder The instrument is equipped with a diagnostic system that will prompt you to proceed with a variety of maintenance tasks. -
Page 27: General Maintenance
Standardizing the measuring device. See page 23. Replacing the iCALization sample. See page 37 Clean spark stand. See page 31. Clean/replace the insert of the filter bottle. See page 39. Replace the filter bottle. As required. SPECTROLAB — 30.07.2015 — 27... -
Page 28: Clean The Light Inlet Window Of The Optics (Mgf2)
Fig. 5 Use an optical paper or a lint- free soft cloth to clean the light entrance window. Fig. 6 Reinstall the light inlet window. The light inlet window is cleaned. — 28 SPECTROLAB — 30.07.2015... -
Page 29: Clean The Light Inlet Window Of The Optional Air Optics (Lavm12)
When removing the light inlet window, mechanical parts in this area may cause injuries. Protective gloves must be worn To clean the light inlet window, proceed as follows: Unscrew the 4 fasteners (1) and remove the spark stand plate. Fig. 7 SPECTROLAB — 30.07.2015 — 29... - Page 30 Use an optical paper or a lint- free soft cloth to clean the light entrance window. Reinstall the light inlet window. Fig. 9 Cleaning of the air optics light inlet window is now complete. — 30 SPECTROLAB — 30.07.2015...
-
Page 31: Cleaning The Spark Stand
During this process, water from the gas-washing bottle may be sucked into the spark stand. Do not keep the vacuum cleaner near the argon outlet that leads into the filter cartridge. As a result, water my be sucked into the spark stand. SPECTROLAB — 30.07.2015 — 31... - Page 32 Clean the exhaust hose (see page 33). 10. Use in the spark stand plate to close the spark stand. 11. Set the electrode gap using the spacer (see page 35). Cleaning of the spark stand is now complete. — 32 SPECTROLAB — 30.07.2015...
-
Page 33: Clean Exhaust Hose
To clean the exhaust hose, proceed as follows: Unscrew the 4 fasteners (1) and remove the spark stand plate Fig. 11 Pull the latch (2) to open the right-hand side door. Unlock the cover by pressing buttons (1) simultaneously. Fig. 12 SPECTROLAB — 30.07.2015 — 33... - Page 34 Clean the connector (1) on the spark stand. Connect the exhaust hose to the spark stand and filter unit. Fig. 13 Cleaning of the exhaust hose is now complete. — 34 SPECTROLAB — 30.07.2015...
-
Page 35: Changing The Electrode
While the instrument is switched on, there is a risk of electrical shock. Shut down the Plasma generator (excitation unit) during all work on the spark stand. To replace the electrode, proceed as follows: Remove the spacer from the spark stand. Fig. 14 SPECTROLAB — 30.07.2015 — 35... - Page 36 Press the spacer into the opening (2) of the spark stand plate. The electrode is pushed to its correct position. Fix the electrode at the screw (3). electrode been replaced. Fig. 16 — 36 SPECTROLAB — 30.07.2015...
-
Page 37: Replacing The Standardizing Or Re-Profiling Samples (Lavm12)
The new ICALisation sample has a composition which is different from that of the original sample. The intensities of the new sample must be matched to that of the old sample. Please contact your service center. SPECTROLAB — 30.07.2015 — 37... -
Page 38: Replacing The Filters
Maintenance 7.11 Replacing the filters The exhaust air from the spark stand is led through two filters: Fig. 17 Component Component Door latch Filter bottle with filter insert Gas-washing bottle — 38 SPECTROLAB — 30.07.2015... -
Page 39: Replacing The Insert Of The Filter Bottle
Fig. 18 Screw the filter bottle back manually. The filter bottle screws in easily. If not, the filter insert is not positioned correctly. Now, the filter insert has been replaced. SPECTROLAB — 30.07.2015 — 39... -
Page 40: Inspecting The Gas-Washing Bottle
The water must be clean. To refill, hold the gas-washing bottle (2) and unscrew it. Fig. 19 Refill water or change it as required. Screw the gas-washing bottle back manually. Checking/changing the water is now complete. — 40 SPECTROLAB — 30.07.2015... -
Page 41: Replacing The Filter Mats
Now, the filter mats are replaced. Notice! Damage to instrument! Improper repairs may damage the instrument. Do not repair the instrument yourself. Contact the SPECTRO Customer Service or inform your technical management. SPECTROLAB — 30.07.2015 — 41... -
Page 42: Status Messages
The sample clamp is not folded down or a conductive contact with the sample has not been established. Safety check required The safety circuit is being checked. Briefly lift sample clamp in order to interrupt the contact to the sample. — 42 SPECTROLAB — 30.07.2015... -
Page 43: Troubleshooting
Low intensities in the optical Light inlet window dirty. Clean light inlet window system. (MgF The temperature of the optic Dirt has accumulated on the Change the filter mat. system is too high (see filter mat. "Status messages"). SPECTROLAB — 30.07.2015 — 43... - Page 44 Limit values are not Insufficient intensity. 1. Check argon. maintained during re- 2. Clean spark stand, profiling. adjust electrode. 3. Clean the light inlet window. 4. Re-profile instrument again and, if necessary, contact the Service Department. — 44 SPECTROLAB — 30.07.2015...
-
Page 45: Error Messages
The function can be found in a window that can be docked on. It can be activated by selecting the menu item "View/Docked views". For a detailed description, refer to the online Help of the instrument. SPECTROLAB — 30.07.2015 — 45... -
Page 46: Spare Parts And Consumables
Spare parts and consumables You can find the spare parts and consumables for this instrument under "Support - Parts Catalogue" (Service – Parts Catalogue) on our website at www.spectro.com. Pos: De-commissioning Only organizations or persons authorized by the instrument manufacturer shall be permitted to de-commission the instrument.
