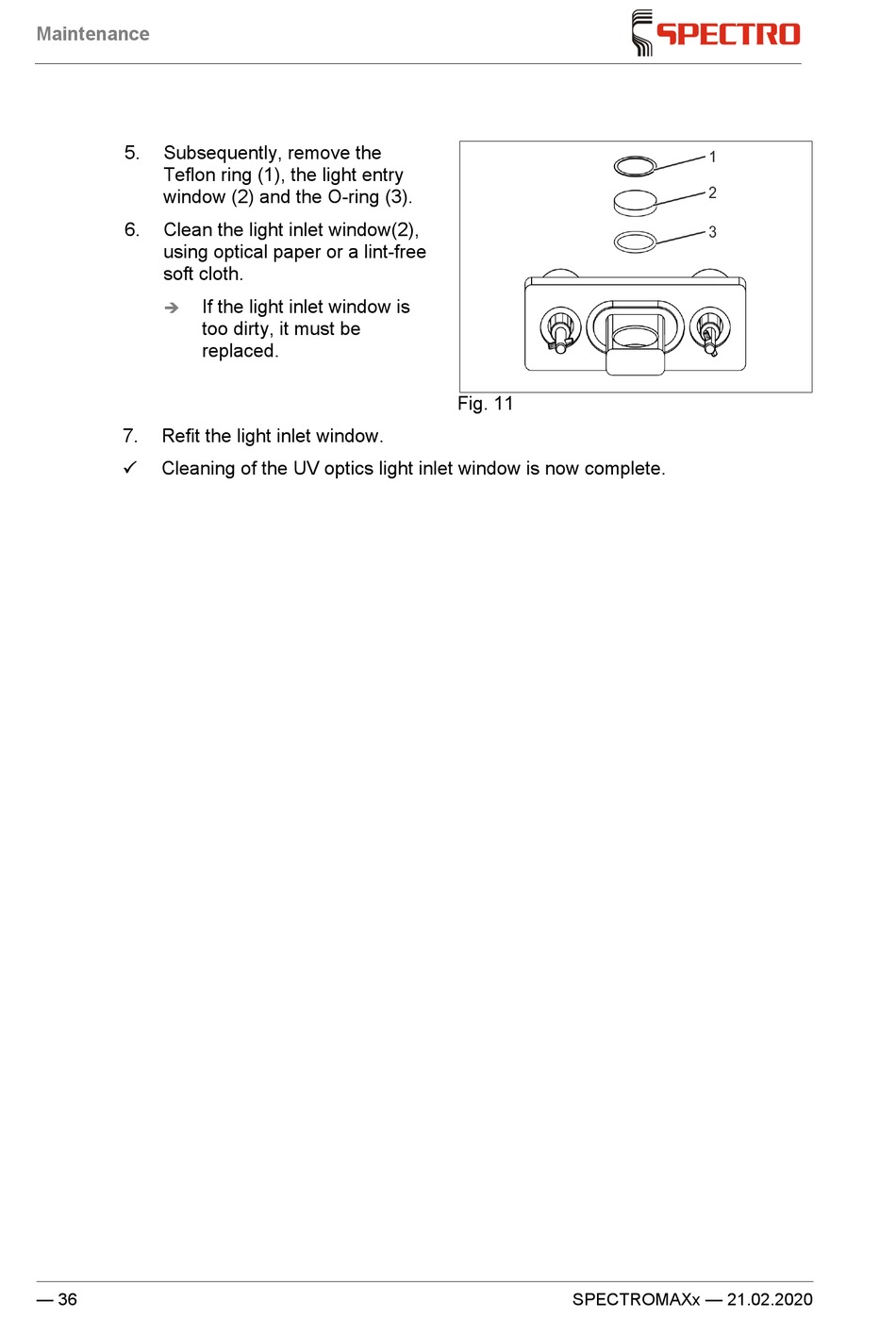

SPECTRO SPECTROMAXx Original Operating Instructions page 36

Maintenance
5. Subsequently, remove the
Teflon ring (1), the light entry
window (2) and the O-ring (3).
6. Clean the light inlet window(2),
using optical paper or a lint-free
soft cloth.
If the light inlet window is

too dirty, it must be
replaced.
7. Refit the light inlet window.
Cleaning of the UV optics light inlet window is now complete.

— 36
Fig. 11
SPECTROMAXx — 21.02.2020
