Operation
6.4.2

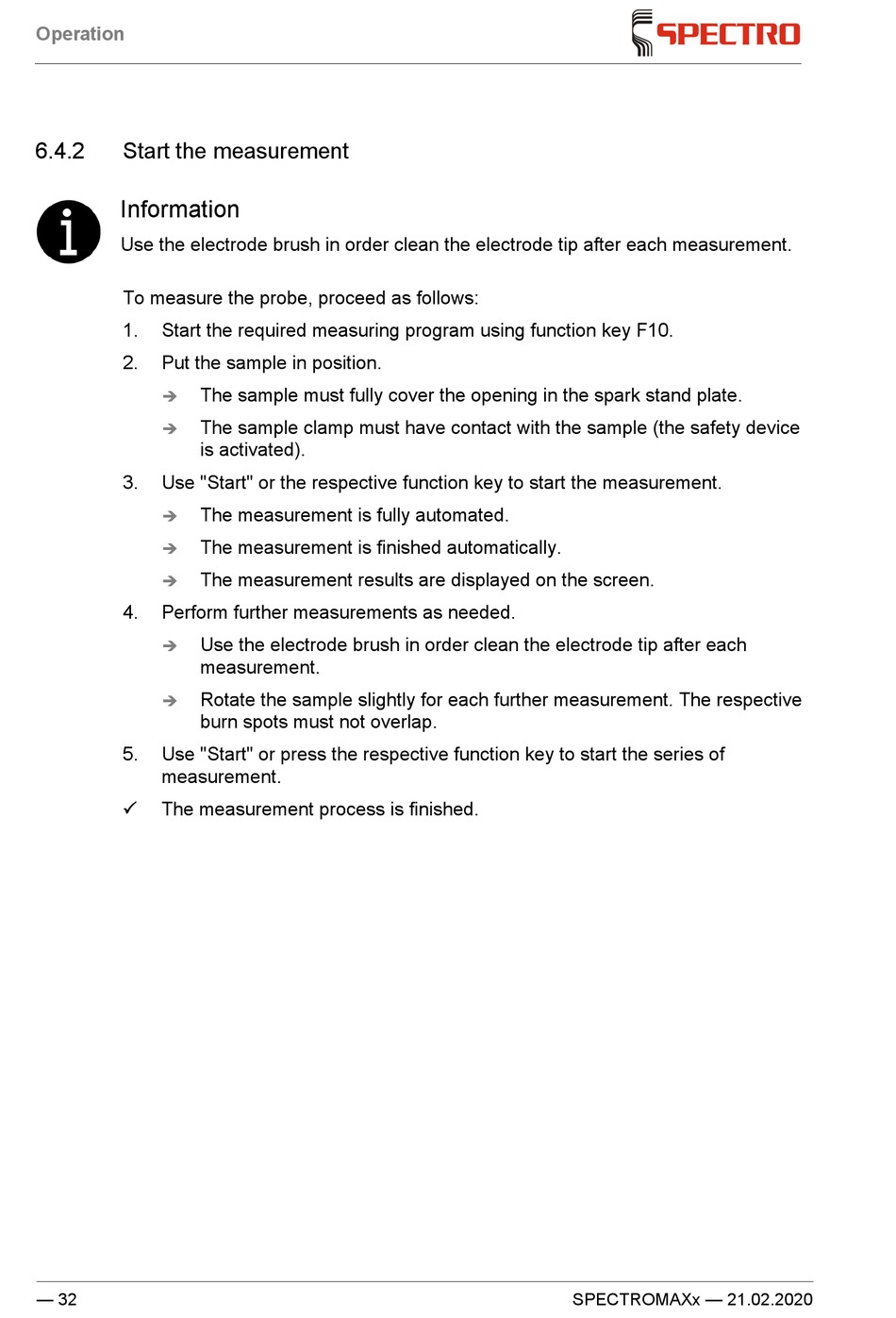

Start the measurement

Information
Use the electrode brush in order clean the electrode tip after each measurement.
To measure the probe, proceed as follows:
1. Start the required measuring program using function key F10.
2. Put the sample in position.
The sample must fully cover the opening in the spark stand plate.

The sample clamp must have contact with the sample (the safety device

is activated).
3. Use "Start" or the respective function key to start the measurement.
The measurement is fully automated.

The measurement is finished automatically.

The measurement results are displayed on the screen.

4. Perform further measurements as needed.
Use the electrode brush in order clean the electrode tip after each

measurement.
Rotate the sample slightly for each further measurement. The respective

burn spots must not overlap.
5. Use "Start" or press the respective function key to start the series of
measurement.
The measurement process is finished.

