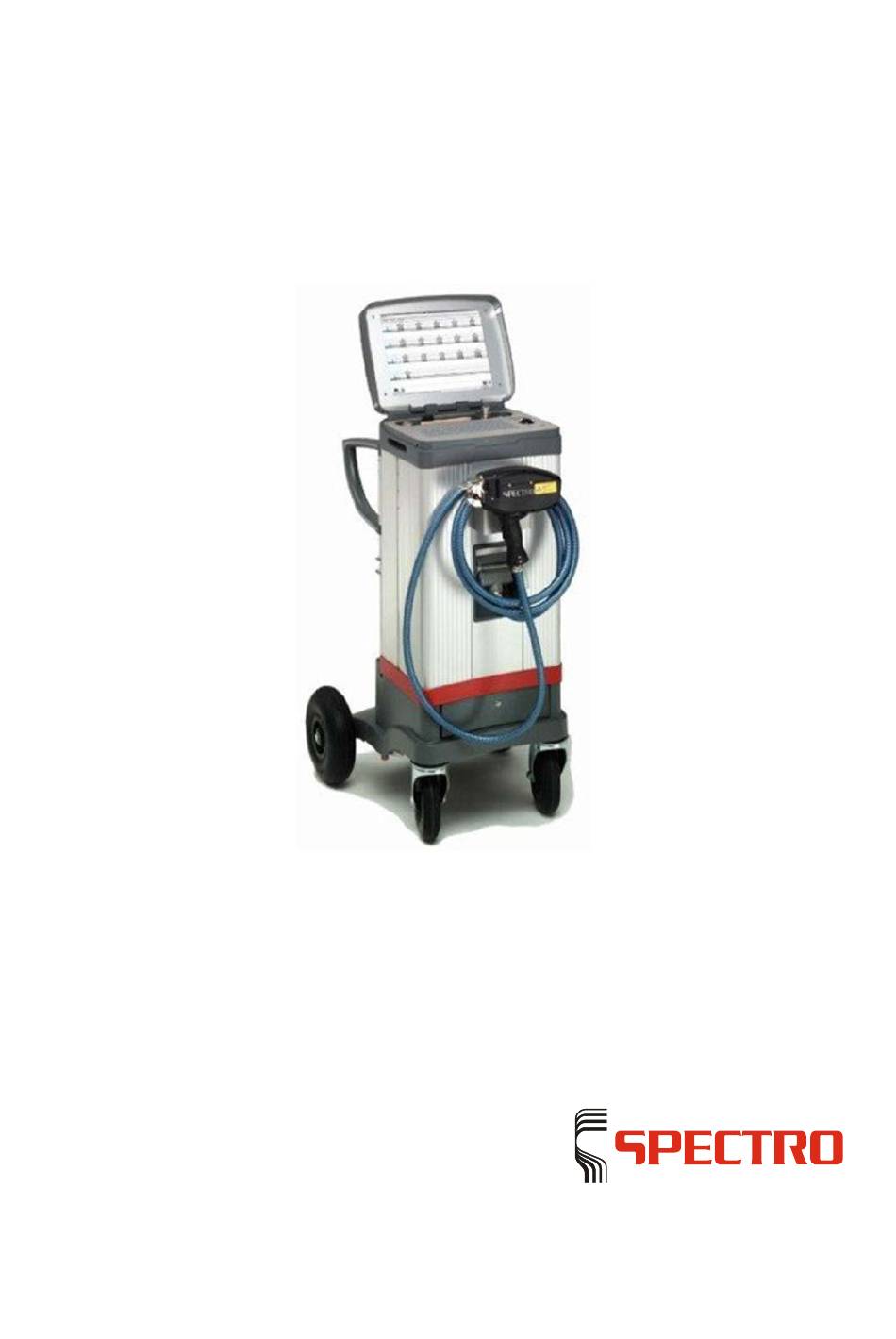

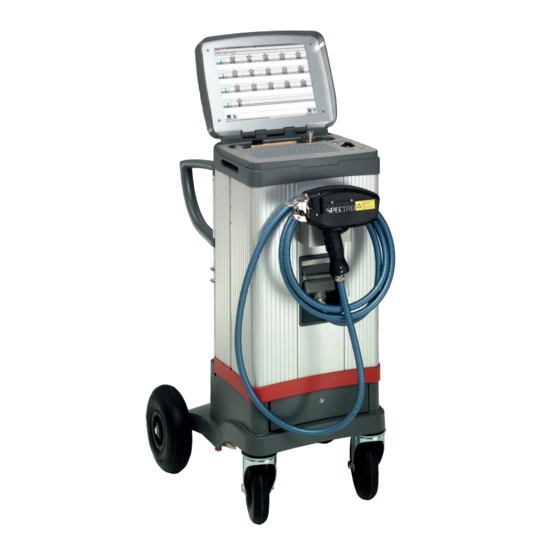

- Page 1 Das verknüpfte Bild kann nicht angezeigt werden. Möglicherweise wurde die Datei verschoben, umbenannt oder gelöscht. Stellen Sie sicher, dass die Verknüpfung auf die korrekt SPECTROTEST Mobile Spectrometer for Metal Analysis Original operating instructions...
-
Page 3: Table Of Contents
Replacing parts of sample probe ..................28 6.6.1 General arrangement of test probe parts ............28 6.6.2 Changing the sample probe ................29 6.6.3 Changing the adapter ..................29 6.6.4 Changing the electrode ..................30 SPECTROTEST — 05.12.2017 — 3... - Page 4 Replacing the sample probe air filter ................35 Replacing the CO and fine dust filter unit ................ 36 Cleaning/sharpening the electrodes ................. 37 Troubleshooting ....................38 Spare parts and consumables ................41 De-commissioning .................... 41 Manufacturer address ..................41 — 4 SPECTROTEST — 05.12.2017...
-
Page 5: Description Of Instrument
A fiber-optics directs this radiation to the optical system. Here the radiation is evaluated. Data are already stored in the unit's memory. The measured values are compared with these data. The results are then displayed on the screen. SPECTROTEST — 05.12.2017 — 5... -
Page 6: Overview
Description of instrument Overview 1.3.1 Connections (rear) Fig. 1 Component Component HDMI Argon connection — 6 SPECTROTEST — 05.12.2017... -
Page 7: Instrument
Can also be installed on the side. Transport carriage (can be Type plate disassembled) Adapter Air filter Sample probe connection and fine dust filter (behind the cover) Drawer for optional rechargeable Power supply connection battery Fuse SPECTROTEST — 05.12.2017 — 7... -
Page 8: Safety
Warning! UV radiation! Notice! Warns of activities or conditions that may adversely affect the safety or function of the instrument. Information Displays information that is important for the correct and safe use of the instrument. — 8 SPECTROTEST — 05.12.2017... -
Page 9: User Information
Compliance with the relevant safety regulations when using tools and operating equipment is mandatory. Prior to opening the instrument, disconnect the power plug. The instrument is only completely disconnected from power if the power plug is removed. SPECTROTEST — 05.12.2017 — 9... -
Page 10: Intended Use
The applicable safety data sheet is available at http://www.spectro.com/msds. Protective gloves and goggles must be worn when replacing the filter unit. When disposing of the filter unit, compliance with legal regulations is mandatory. — 10 SPECTROTEST — 05.12.2017... - Page 11 If an adapter is used for several measurements in a row, it can get hot. Touch the adapter only after it has sufficiently cooled. A sample can get hot if it is measured several times. Touch the sample only after it has sufficiently cooled. SPECTROTEST — 05.12.2017 — 11...
- Page 12 EEG, ECG devices, etc.) should not be affected by CE-compliant devices. For this group of operators, however, it is strongly recommended to contact the manufacturer of the instrument before using the spectrometer! — 12 SPECTROTEST — 05.12.2017...
-
Page 13: Technical Data
Constant flow: 15 L/h probe Analytic flow: 120 L/h Flushing: 120 L/h UV probe consumption Constant flow: 15 L/h plus 10 L/h UV optics Analytic flow: 120 L/h Flushing: 185 L/h Protection class IP 23 (DIN 40050) SPECTROTEST — 05.12.2017 — 13... -
Page 14: Transportation/Setting-Up
When transporting the instrument on a truck use an appropriate cover to protect the display. remove the argon bottle from the transport trolley. — 14 SPECTROTEST — 05.12.2017... -
Page 15: Dimensions And Weight
Install the instrument so that it cannot heat up or cool down on one side only. Dimensions and weight Name Value Unit height 670 mm (26.3’’) Unit width 425 mm (16.7’’) Unit depth 330 mm (13.0’’) Unit weight 33 kg (72.7 lbs) SPECTROTEST — 05.12.2017 — 15... -
Page 16: Gas Supply (Sparks Operating Mode)
Adjustable output pressure 0 - 10 bar Argon inlet pressure at the instrument is 5 bar ±10%, 72 psi A PTFE hose with quick release provided by SPECTRO supplies the argon (instrument side): Diameter OD 6 / ID 4, length 0.8 m ... -
Page 17: Argon Bottle Fastening
The transport carriage is equipped with a retaining strap for argon bottles with different diameters. Fig. 3 Component Component Installation of the retaining strap Installation of the retaining strap for argon bottles with a small for argon bottles with a large diameter. diameter. SPECTROTEST — 05.12.2017 — 17... -
Page 18: Operation
Same as PC keyboard 5.1.2 Brightness adjustment In order to adjust the brightness of the display, open the Tray Tool "Powermanagement Pro Mobile" via the Windows taskbar. The brightness adjustment screen opens. Adjust the desired brightness. — 18 SPECTROTEST — 05.12.2017... -
Page 19: Sample Probe
Information In order to prevent inadvertent triggering of a measurement, the "Start measurement" key is disabled after one minute (adjustable), if the key is not activated in the meantime. To unlock, briefly press the button. SPECTROTEST — 05.12.2017 — 19... - Page 20 “Start measurement” button Use this button to proceed with the measurement. This button must kept depressed during the entire measurement. “Reset” button This button is used to reset any error messages displayed ob the PC. — 20 SPECTROTEST — 05.12.2017...
-
Page 21: Initial Start-Up
The flushing progress is displayed on the screen. To switch on the plasma generator, press the switch: The sample probe status display lights up green. The unit is now ready to measure. SPECTROTEST — 05.12.2017 — 21... -
Page 22: Standby Mode
The unit is switched off. Close the argon bottle. Unplug the mains power plug. The unit is only completely disconnected from power if the power plug is unplugged. The unit is now switched off. — 22 SPECTROTEST — 05.12.2017... -
Page 23: Measuring Procedure
EN 61010. However, a shock may cause a subsequent accident, e.g. a fall from a ladder. Therefore, make sure that the sample never loses contact with the test probe adapter during the analysis. SPECTROTEST — 05.12.2017 — 23... -
Page 24: Preparing The Measuring Procedure
The measurement will be blocked if a wrong sample probe/testing program combination is used. Change the sample probe. Check the safety measures if you work with toxic samples. The measurement is now prepared. — 24 SPECTROTEST — 05.12.2017... -
Page 25: Proceed With The Measurement
When the measurement is finished, the status indicator of the test probe turns green. If necessary, the measuring device prompts you to perform an ICAL-standardization, see page 27. The measurement results are displayed on the screen. The measurement is complete. SPECTROTEST — 05.12.2017 — 25... -
Page 26: Example Measurement, Sorting
If these measurement results are also poor, the counter for poor samples is increased by one point on the screen. Now, the next sample can be measured. The measurement is complete. — 26 SPECTROTEST — 05.12.2017... -
Page 27: Icalization Of The Measuring Instrument (Ical)
Follow the instructions on the screen and perform the necessary 5 measurements with the reference sample. Poor measurements are highlighted in the ICAL measurement window and can be deleted. Please repeat the respective measurements. The instrument is ICALized. SPECTROTEST — 05.12.2017 — 27... -
Page 28: Replacing Parts Of Sample Probe
In the illustration on the right-hand side is the test probe for the arc/spark excitation incl. UV optics Electrode Holder for light-sensitive surface, air optics Locking wheel for the electrode Air filter — 28 SPECTROTEST — 05.12.2017... -
Page 29: Changing The Sample Probe
On the arc discharge adapter, the opening must point towards the fiber- optics. Fix the adapter in place using the knurled screw. To switch on the plasma generator, press the switch: The adapter has now been changed. SPECTROTEST — 05.12.2017 — 29... -
Page 30: Changing The Electrode
Fig. 7 Use the locking wheel to fasten the electrode in place. 10. To switch the plasma generator on, press the following switch: The electrode has been replaced. — 30 SPECTROTEST — 05.12.2017... -
Page 31: Maintenance
To find contact addresses of service organizations authorized by SPECTRO go to www.spectro.com Maintenance schedule The maintenance intervals specified in the following table are guidelines which should be observed as a minimum requirement. -
Page 32: Cleaning The Adapter
To switch the plasma generator off, press the following switch: Use the knurled screw (2) to loosen the adapter (1) and pull out the adapter. Use a cotton swab to clean the light-sensitive surface in the test probe (3). Fig. 8 — 32 SPECTROTEST — 05.12.2017... - Page 33 Make sure that the O-rings are correctly positioned under the light- sensitive surface. Reinstall the adapter to the test probe. To switch the plasma generator on, press the following switch: The cleaning of the light-sensitive surfaces on the probe and adapter is completed. SPECTROTEST — 05.12.2017 — 33...
-
Page 34: Replacing The Air Filter
Fig. 11 Loosen the knurled screws. Fig. 12 Lower the base plate (2). Remove the clogged filter (1). Fig. 13 Insert the new filter. — 34 SPECTROTEST — 05.12.2017... -
Page 35: Replacing The Sample Probe Air Filter
Disconnect the connector from the sample probe. Loosen the screws (1). Remove the cover (2). Replace the filter. Reinstall the cover (2). Tighten the screws. Fig. 14 The air filter has been changed. SPECTROTEST — 05.12.2017 — 35... -
Page 36: Replacing The Co And Fine Dust Filter Unit
To replace the filter, proceed as follows: Switch the instrument off (see page 22) Release the "unit/transport carriage" locking mechanism and take the instrument off the transport carriage. Fig. 15 Loosen the knurled screws. Fig. 16 — 36 SPECTROTEST — 05.12.2017... -
Page 37: Cleaning/Sharpening The Electrodes
Cleaning/sharpening the electrodes To switch off the plasma generator, press the switch: Clean the electrodes after the completion of the tasks. The "soft" rod electrodes (silver and copper) must be resharpened when their tips are worn. SPECTROTEST — 05.12.2017 — 37... -
Page 38: Troubleshooting
Defective cable or display. Please contact your service on, but no data are center. shown on the display. The software reacts A virus scanner has been Add the directory "C:\Spectro slowly (e.g. long installed. Smart Studio\Spark Analyzer Pro measuring times) Mobile" or the processes "TXC03MeasurementGUI.exe"... - Page 39 1 second, then open it. Insufficient maintenance Clean the adapter thoroughly. (cleaning) of the adapter, especially of the Teflon insert, has caused clogging of the flushing bores. SPECTROTEST — 05.12.2017 — 39...
- Page 40 “No correct focal spot in the spark mode”. The material was not Go to the suitable global program measured with a program if available (e.g. to Co-01) associated with the base (e.g. Co sample with a Fe base program). — 40 SPECTROTEST — 05.12.2017...
-
Page 41: Spare Parts And Consumables
Spare parts and consumables You can find the spare parts and consumables for this instrument under "Support - Parts Catalogue" (Service – Parts Catalogue) on our website at www.spectro.com. Use only genuine spare parts for repairing the instrument. The use of non-genuine spare parts will make the CE Declaration of Conformity null and void.
