Operation; Control And Indicating Elements - Optimum OPTI turn TU 3008G Operating Manual

4

Operation

4.1

Control and indicating elements

6
2
3
7
4
8
9

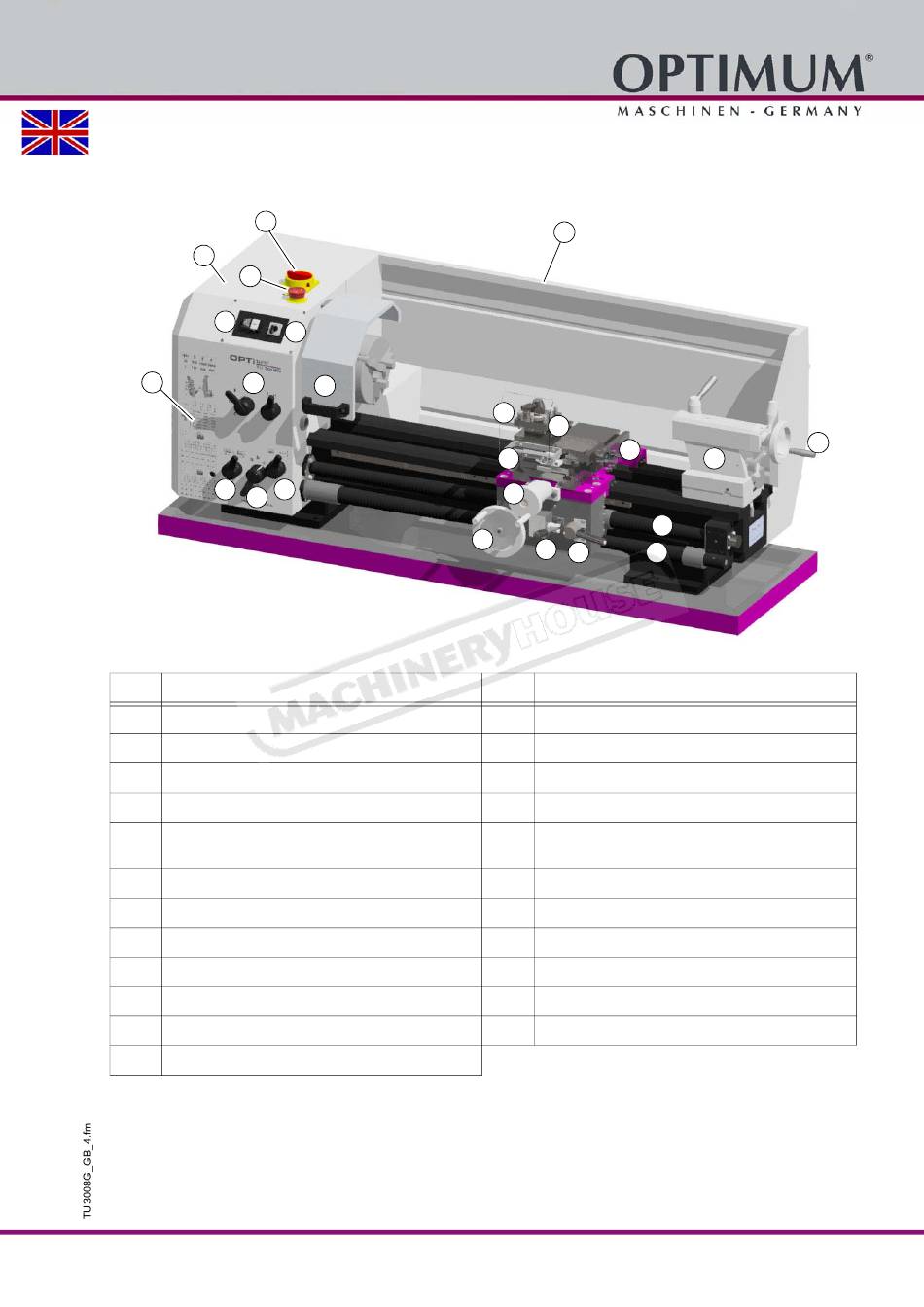

Img.4-1: TU3008G
Pos. Designation
1 Rotation direction switch
3 ON/ OFF switch
5 Lathe chuck protection
7 Change wheel and feed table
9 Selector switch for feed speed
11 Handwheel lathe saddle
13 Handwheel top slide
15 Threading engaging lever
17 Feed rod
20 Tailstock sleeve hand wheel
22 Quadruple toolholder
24 Splash guard
Operation
Version 1.1.6 - 2021-9-17
21
1
5
10
Translation of original instruction
24
23
22
13
16
12
11
14
15 17
Pos. Designation
2 Emergency-stop button
4 Selector lever speed adjustment
6 Protective cover of the headstock
8 Selector switch for feed direction
Selector switch, longitudinal feed with lead screw,
10
cross feed with feed rod
12 Handwheel cross slide
14 Longitudinal feed, cross feed engagement lever
16 Lead screw
19 Tailstock
21 Main switch
23 Chip guard shield
20
19
16
TU3008G GB
25
