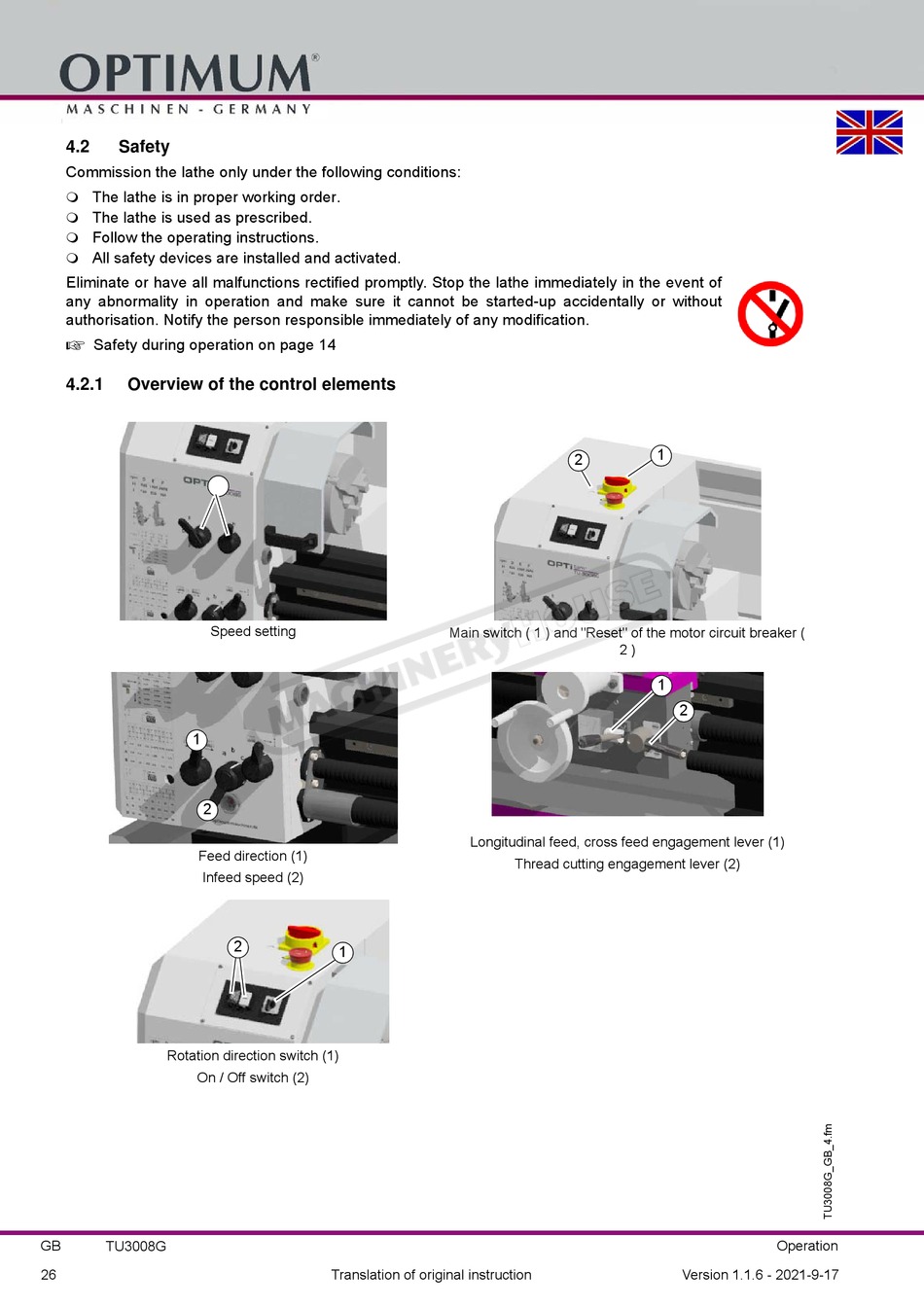

4.2

Safety

Commission the lathe only under the following conditions:
The lathe is in proper working order.

The lathe is used as prescribed.

Follow the operating instructions.

All safety devices are installed and activated.

Eliminate or have all malfunctions rectified promptly. Stop the lathe immediately in the event of
any abnormality in operation and make sure it cannot be started-up accidentally or without
authorisation. Notify the person responsible immediately of any modification.

Safety during operation on page 14
4.2.1

Overview of the control elements

Speed setting
1
2
Feed direction (1)
Infeed speed (2)
Rotation direction switch (1)
On / Off switch (2)
GB TU3008G
26
2
1
Translation of original instruction
2
Main switch ( 1 ) and "Reset" of the motor circuit breaker (
2 )
Longitudinal feed, cross feed engagement lever (1)
Thread cutting engagement lever (2)
1
1
2
Operation
