3.3.2 with an optional machine base

CAUTION!
In order to provide for the necessary stability of the machine with an optional machine base, it is
necessary to firmly fasten the machines to the base. The machine base itself must be affixed
firmly to the floor.
600
A
180
3.4

Installation conditions

Organize the working area around the lathe according to the local safety regulations.
area on page 17
The work area for operation, maintenance and repair must not be restricted.
INFORMATION
In order to achieve high levels of functionality and machining accuracy, as well as a long service
life of the machine, the set-up location should meet certain criteria.
The following points should be noted:
The machine must only be installed and operated in a dry and well-ventilated place.

Avoid places near machines generating chips or dust.

The installation site must be free from vibrations also at a distance of presses, planing

machines, etc.
The ground must be suitable for the lathe. Make sure that the floor has sufficient load-

bearing capacity and is level.
EN TU3008G
22
817
A-A

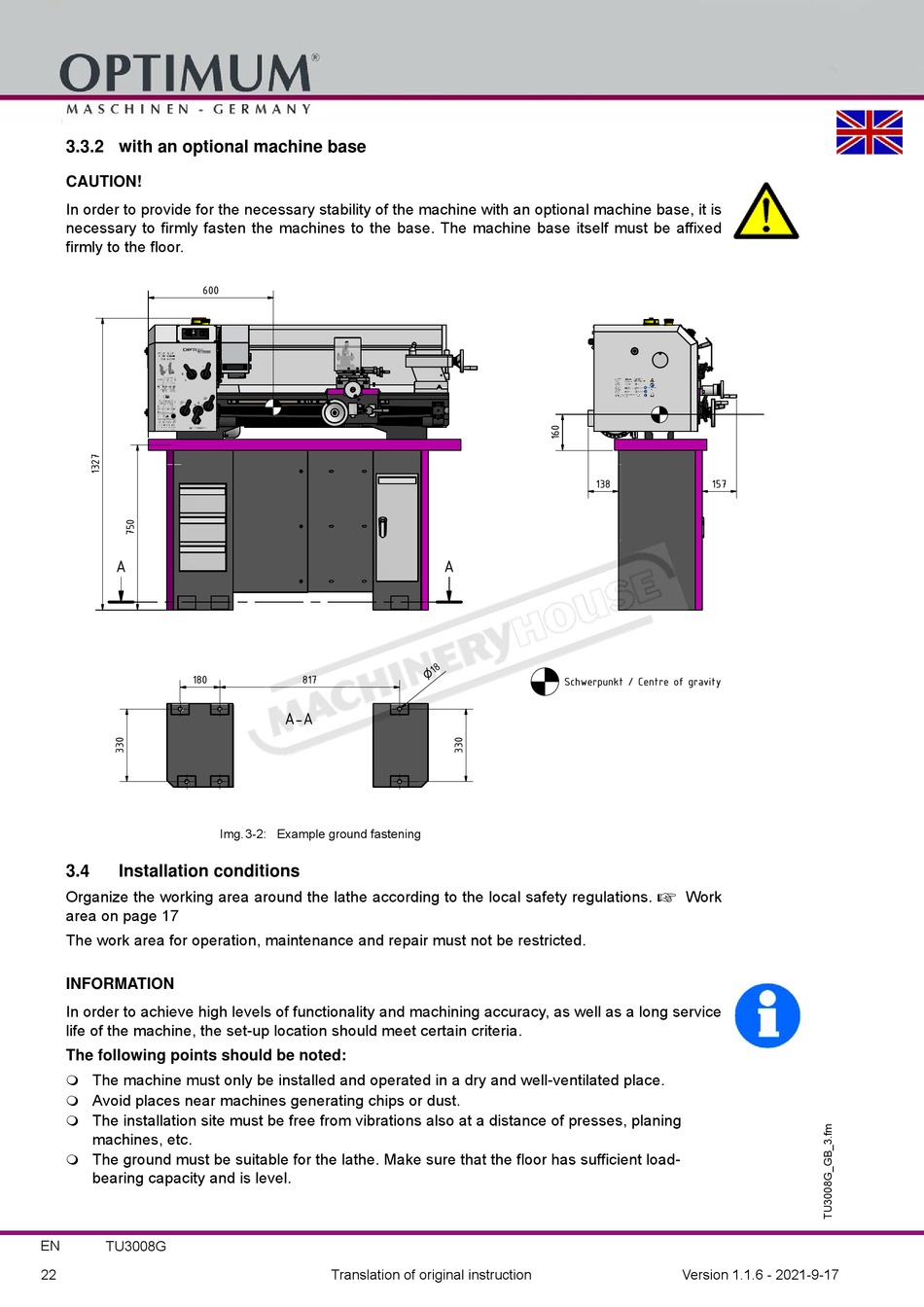

Img.3-2: Example ground fastening
