Hookup Diagrams - Altronix ACMJ Series Installation Manual

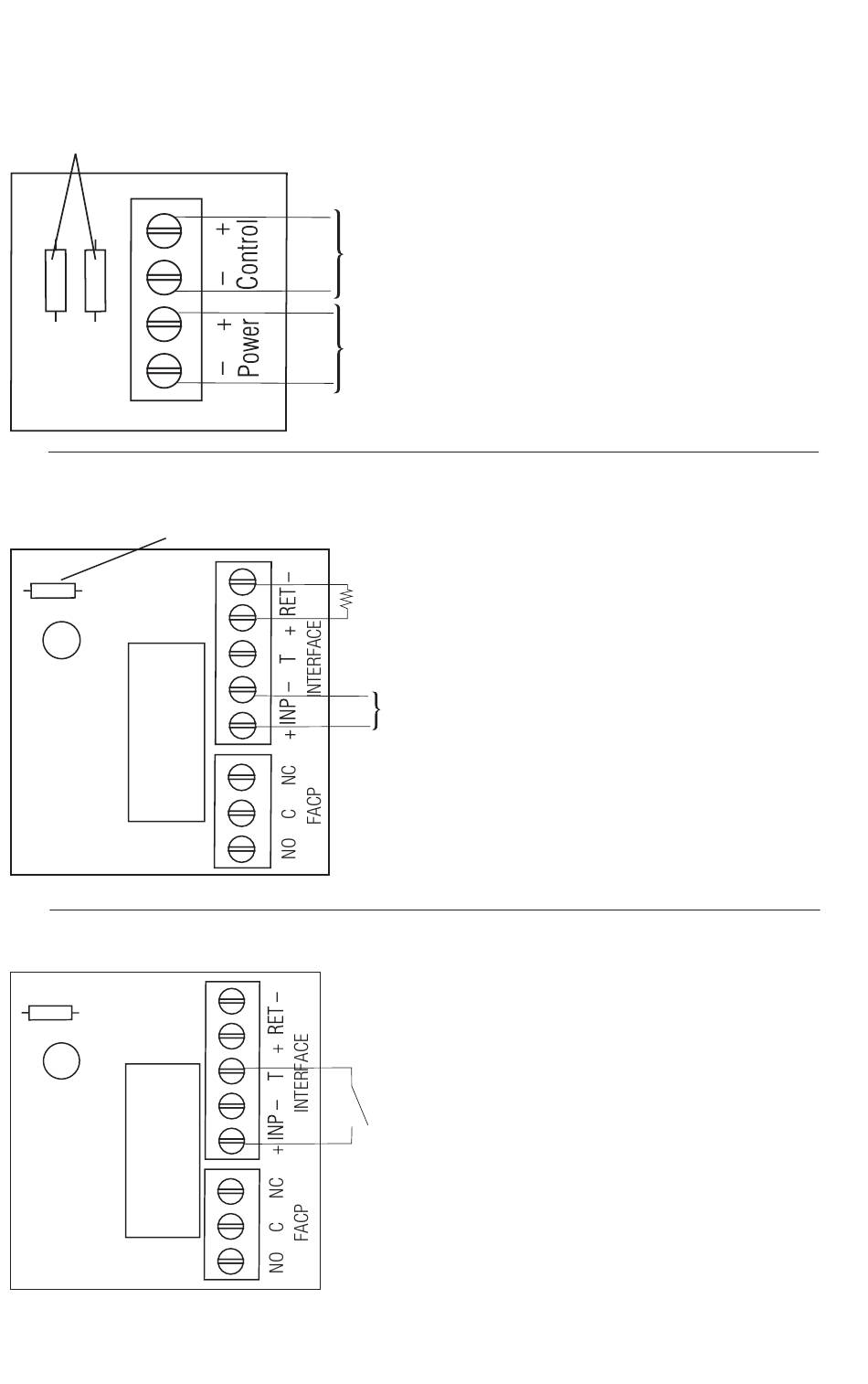

Fig. 3 Optional hook-up using two (2) isolated power supply inputs:
CUT JUMPERS
J1 AND J2
J2 J1
Fig. 4 Polarity reversal input from FACP signaling circuit output (polarity is referenced in alarm condition):
FACP
TRG
Fig. 5 Normally Open: Non-Latching FACP trigger input:
FACP
TRG
- 8 -
Hook-Up Diagrams:
CUT
JUMPER
ISOLATED POWER INPUT
12 OR 24 VAC OR VDC
(ACM8 POWER)
ISOLATED POWER INPUT
12 OR 24 VAC OR VDC
(LOCK POWER)
FACP
OUTPUT EOL
FROM FACP
--
OUTPUT
+
CIRCUIT
N.O. TRIGGER
INPUT
ACMJ Series
