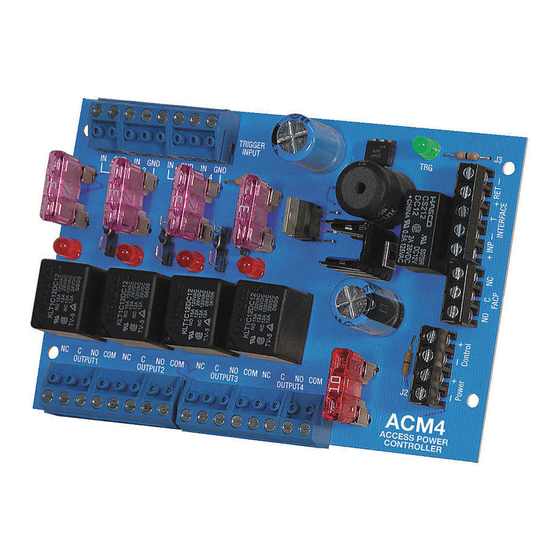

- Page 1 ACM4 Series UL Listed Sub-Assembly Access Power Controllers Installation Guide Models Include: ACM4 - Four (4) Fuse Protected Outputs ACM4CB - Four (4) PTC Protected Outputs More than just power.™ Rev. 051311...
- Page 2 • FACP output relay (form “C” contact rated @ 1A/28VDC, not evaluated by UL). • Green LED indicates when FACP disconnect is triggered. • Removable terminal blocks facilitate ease of installation. Board Dimensions (L x W x H approximate): 5.175”x 3.36”x 1.25” (131.5mm x 85.6mm x 31.8mm) - 2 - ACM4 Series...
- Page 3 For non-latching hook-up see Fig. 4, pg. 6. For latching hook-up see Fig. 5, pg. 7. b) Normally Closed [NC] input: For non-latching hook-up see Fig. 6, pg. 7. For latching hook-up see Fig. 7, pg. 7. ACM4 Series - 3 -...
- Page 4 FACP output circuit (Fig. 3 through 7, pg. 6-7). FACP INTERFACE Form “C” relay contact rated @ 1A/28VDC for alarm reporting. NC, C, NO (This output has not been evaluated by UL). - 4 - ACM4 Series...
- Page 5 (req’d) (optional) Electromagnetic Door Holders UL Listed Power-Limited Power Supply For this application corresponding fuse must be removed. Mag. (ACM4 only) Lock Keep power-limited wiring separate LED1 from non power-limited. ACM4CB Use minimum 0.25" spacing. ACM4 Series - 5 -...
- Page 6 Polarity reversal input from FACP signaling circuit output (polarity is referenced in alarm condition): (This output has not been evaluated by UL) JUMPER J3 FACP CONTROL CIRCUIT EOL (if employed) FROM FACP CONTROL CIRCUIT Fig. 4 Normally Open - Non-Latching FACP trigger input: N.O. TRIGGER INPUT - 6 - ACM4 Series...
- Page 7 Normally Closed - Non-Latching FACP trigger input: N.C. DRY TRIGGER INPUT JUMPER Fig. 7 Normally Closed - Latching FACP trigger input with reset (This output has not been evaluated by UL): N.C. RESET SWITCH N.C. TRIGGER INPUT JUMPER ACM4 Series - 7 -...
- Page 8 Notes: Altronix is not responsible for any typographical error. Product specifications are subject to change without notice. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A.
