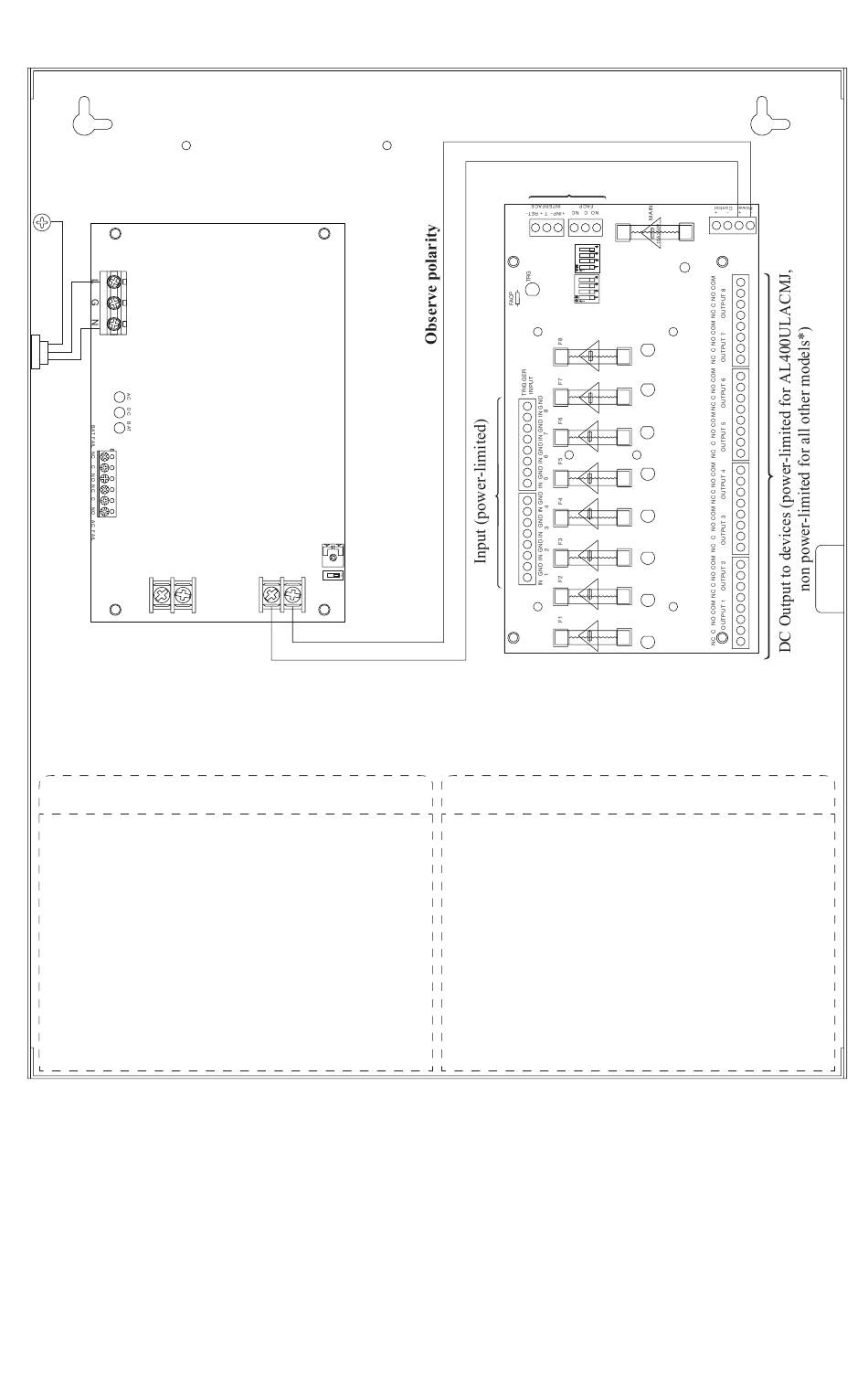

Fig. 2
Green
Flying Lead
Unswitched
115VAC
power mains
(non power-limited)
Battery and AC
Supervision Circuit
(power-limited)
+BAT-
Optional Rechargeable
Stand-by Battery
CAUTION: De-energize unit prior to servicing.
For continued protection against fire hazard replace fuse with the same type and rating.
CAUTION: Optional rechargeable stand-by batteries must match
the power supply output voltage setting.
Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing.
*When Class 2 rating is required order model numbers:
AL400ULACMCBJ, AL600ULACMCBJ, AL1012ULACMCBJ and AL1024ULACMCBJ
ACMJ Series
OFF - 24V
ON - 12V
+ DC -
Fire Alarm Interface
Optional Rechargeable
Stand-by Battery
- 7 -
