Hand Crimp Tool for MX150 Cable Seal Crimp Terminals
Order Number
63819-9300
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Right- and left-handed applications
This tool is RoHS compliant; however, RoHS compliance is not required
SCOPE
Products: MX150 Cable Seal Blade and Receptacle Crimp Terminals, 0.50mm
Terminal
Series No.
34080-0003
34080
34080-1003
34081
34081-2005
34083
34083-2003
34751
34751-0003
34783
34783-0003
DEFINITION OF TERMS (BLADE)
BELL MOUTH
CUT-OFF
TAB
Doc. No: ATS-638199300
Revision: D
Application Tooling Specification
Terminal Order No.
34080-0106
34080-0206
34080-1106
34080-1206
34081-4003
34081-3005
34081-5003
34083-3003
34751-1003
34783-1003
See crimp specification for the individual Insulation Diameter.
Terminals were validated per USCAR-21 using the following wire specifications:
M1L-123A (TXL), M1L-126A1(metric) and JASO D 611(AVSS)
INSULATION
CRIMP
STRIP LENGTH
CONDUCTOR BRUSH
CONDUCTOR CRIMP
Release Date: 11-30-09
Revision Date: 07-22-20
Wire Size and Type
Insulation Diameter
AWG
mm²
mm
TXL-22
—
1.50-1.65
—
ISO 0.50
1.40-1.60
—
AVSS 0.50
1.60-1.70
TXL-22
—
1.50-1.65
—
ISO 0.50
1.40-1.60
—
AVSS 0.50
1.60-1.70
TXL-22
—
1.50-1.65
—
ISO 0.50
1.40-1.60
—
AVSS 0.50
1.60-1.70
TXL-22
—
1.50-1.65
—
ISO 0.50
1.40-1.60
—
AVSS 0.50
1.60-1.70
TXL-22
—
1.50-1.65
—
ISO 0.50
1.40-1.60
—
AVSS 0.50
1.60-1.70
TERMINAL WIDTH NOT TO EXCEED
2.65mm AFTER CRIMPING
THIS AREA
SEAL
WIRE
SEAM
UNCONTROLLED COPY
Type 4D
2
metric and 22 AWG.
Strip Length
In.
mm
In.
.059-.065
.055-.063
.063-.067
.059-.065
.055-.063
.063-.067
.059-.065
5.15
.203
.055-.063
.063-.067
.059-.065
.055-.063
.063-.067
.059-.065
.055-.063
.063-.067
BEND UP
ROLL
TWIST
BEND DOWN
Page 1 of 9

Advertisement

loading
Need help?

Need help?

Do you have a question about the 207129 Series and is the answer not in the manual?

Questions and answers

Related Manuals for molex 207129 Series

Summary of Contents for molex 207129 Series

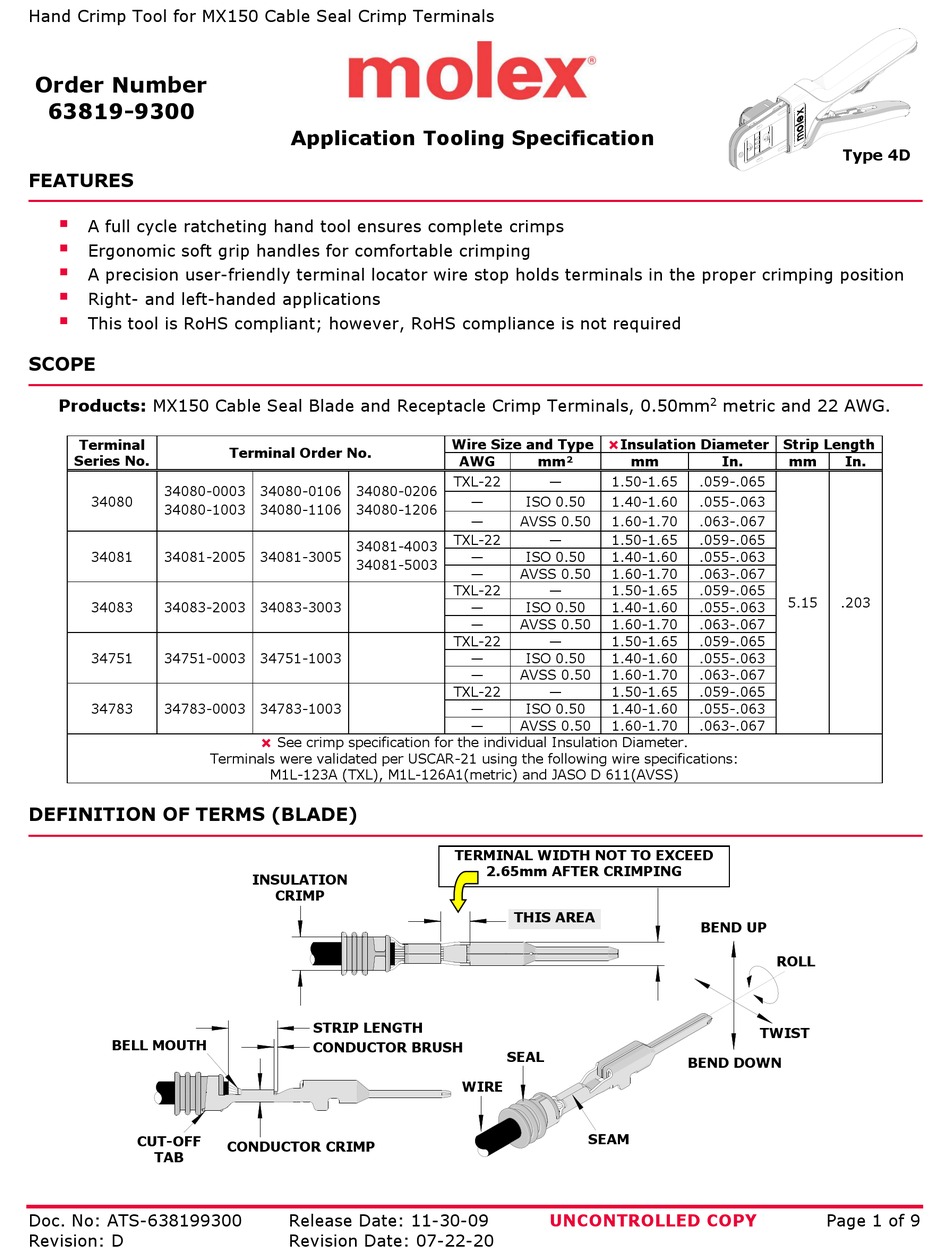

  • Page 1 Hand Crimp Tool for MX150 Cable Seal Crimp Terminals Order Number 63819-9300 Application Tooling Specification Type 4D FEATURES  A full cycle ratcheting hand tool ensures complete crimps  Ergonomic soft grip handles for comfortable crimping  A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position ...
