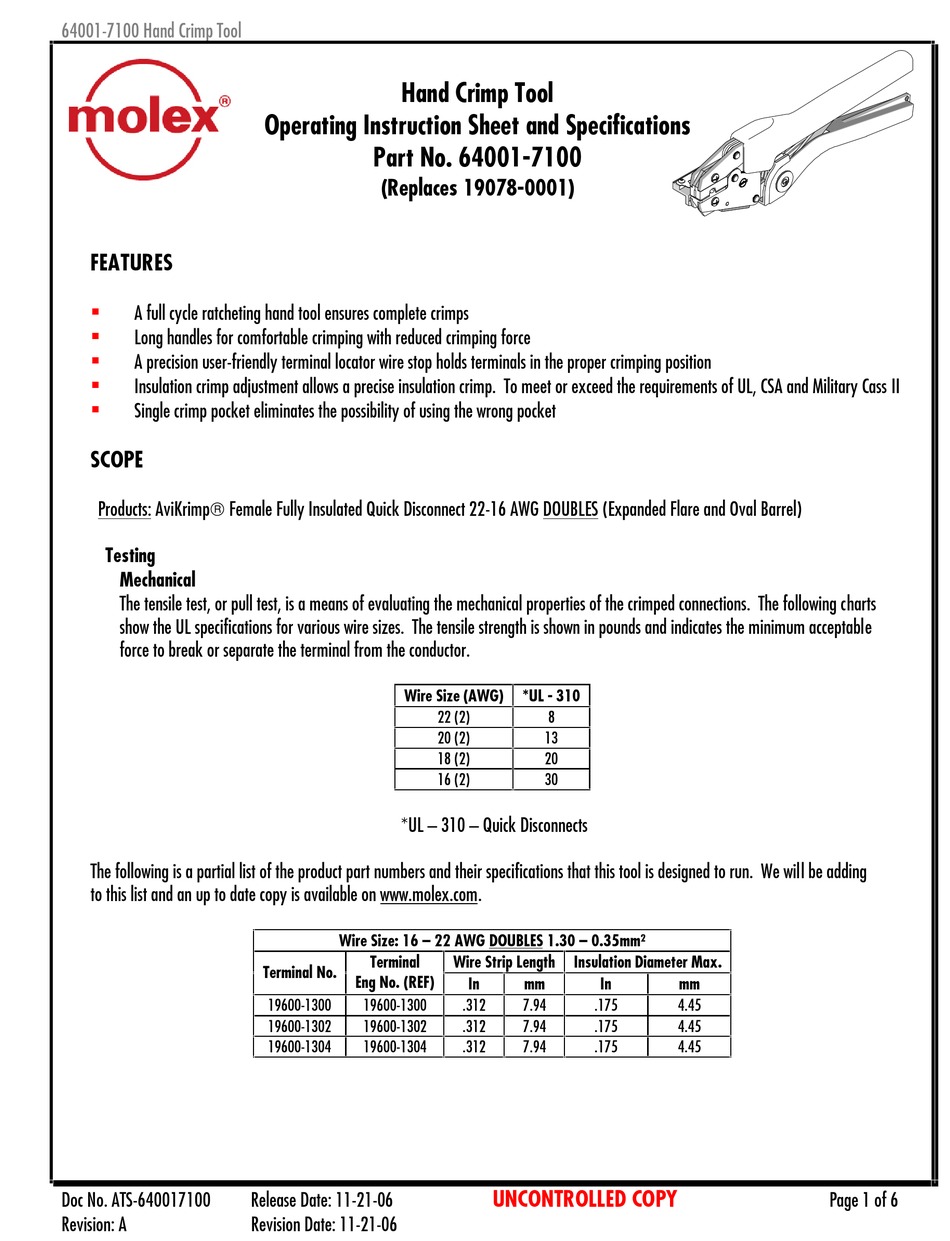

molex 207129 Series Operating Instruction And Specifications Sheet

64001-7100 Hand Crimp Tool

FEATURES

Œ
Œ
A full cycle ratcheting hand tool ensures complete crimps
Œ
Long handles for comfortable crimping with reduced crimping force
Œ
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Œ
Insulation crimp adjustment allows a precise insulation crimp. To meet or exceed the requirements of UL, CSA and Military Cass II
Single crimp pocket eliminates the possibility of using the wrong pocket

SCOPE

Products: AviKrimp Female Fully Insulated Quick Disconnect 22-16 AWG DOUBLES (Expanded Flare and Oval Barrel)
Testing
Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the crimped connections. The following charts
show the UL specifications for various wire sizes. The tensile strength is shown in pounds and indicates the minimum acceptable
force to break or separate the terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool is designed to run. We will be adding
to this list and an up to date copy is available on www.molex.com.
Doc No. ATS-640017100
Revision: A
Hand Crimp Tool
Operating Instruction Sheet and Specifications
Part No. 64001-7100
(Replaces 19078-0001)
Wire Size (AWG)
*UL – 310 – Quick Disconnects
Wire Size: 16 – 22 AWG DOUBLES 1.30 – 0.35mm²
Terminal
Terminal No.
Eng No. (REF)
19600-1300 19600-1300
19600-1302 19600-1302
19600-1304 19600-1304
Release Date: 11-21-06
Revision Date: 11-21-06
*UL - 310
22 (2) 8
20 (2) 13
18 (2) 20
16 (2) 30
Wire Strip Length Insulation Diameter Max.
In mm In
.312 7.94 .175
.312 7.94 .175
.312 7.94 .175
UNCONTROLLED COPY
mm
4.45
4.45
4.45
Page 1 of 6
