molex 207129 Series Operating Instructions And Specification

Hand crimp tool
Hide thumbs Also See for 207129 Series:
1
2
3
4
5
6

Advertisement

Table of Contents

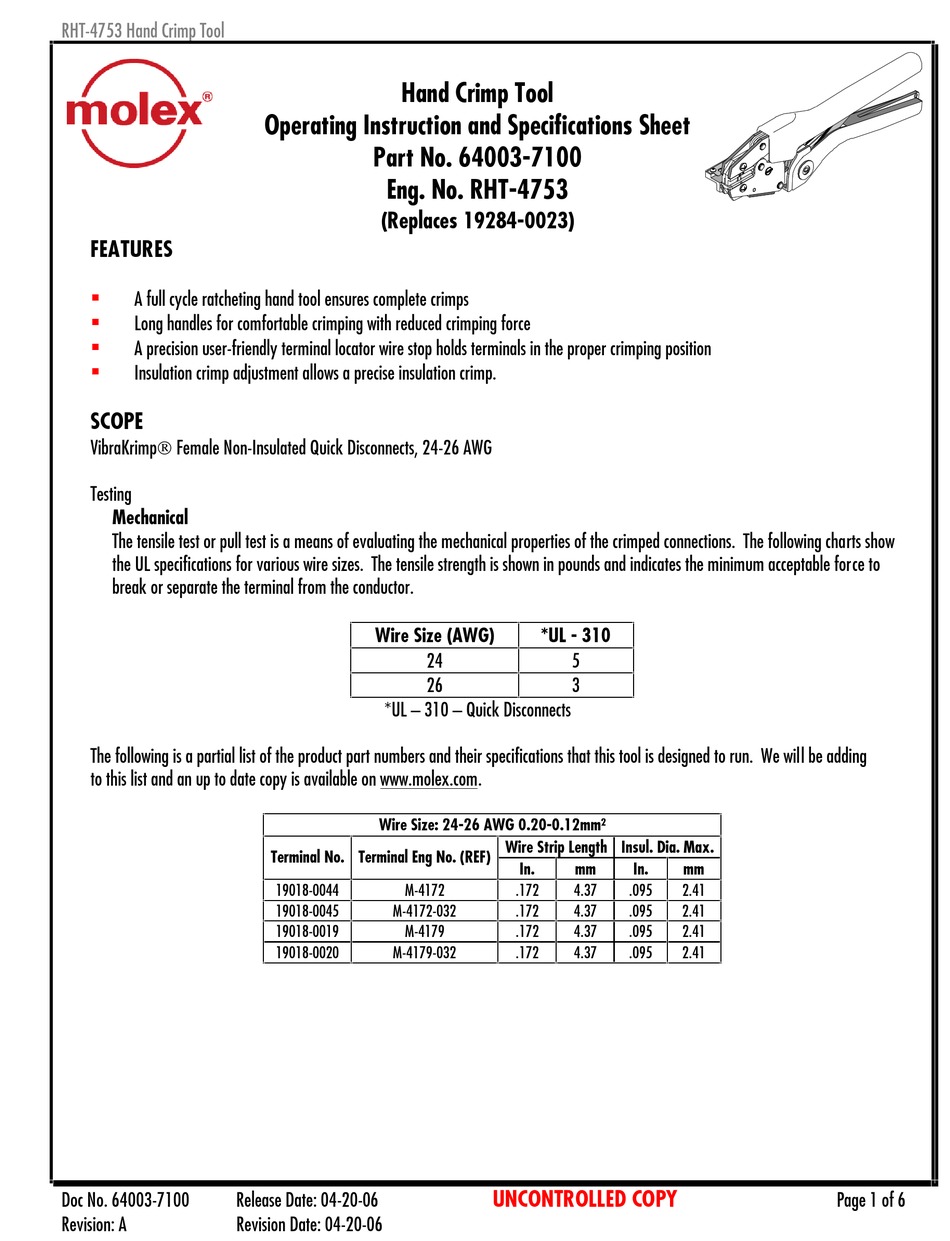

RHT-4753 Hand Crimp Tool
FEATURES
Œ
Œ
A full cycle ratcheting hand tool ensures complete crimps
Œ
Long handles for comfortable crimping with reduced crimping force
Œ
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Insulation crimp adjustment allows a precise insulation crimp.
SCOPE
VibraKrimp Female Non-Insulated Quick Disconnects, 24-26 AWG
Testing
Mechanical
The tensile test or pull test is a means of evaluating the mechanical properties of the crimped connections. The following charts show
the UL specifications for various wire sizes. The tensile strength is shown in pounds and indicates the minimum acceptable force to
break or separate the terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool is designed to run. We will be adding
to this list and an up to date copy is available on www.molex.com.
Doc No. 64003-7100
Release Date: 04-20-06
Revision: A
Revision Date: 04-20-06
Hand Crimp Tool
Operating Instruction and Specifications Sheet
Part No. 64003-7100
Eng. No. RHT-4753
(Replaces 19284-0023)
Wire Size (AWG)
24
26
*UL – 310 – Quick Disconnects
Wire Size: 24-26 AWG 0.20-0.12mm²
Terminal No. Terminal Eng No. (REF)
19018-0044
M-4172
19018-0045
M-4172-032
19018-0019
M-4179
19018-0020
M-4179-032
*UL - 310
5
3
Wire Strip Length Insul. Dia. Max.
In.
mm
In.
.172
4.37
.095
.172
4.37
.095
.172
4.37
.095
.172
4.37
.095
UNCONTROLLED COPY
mm
2.41
2.41
2.41
2.41
Page 1 of 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 207129 Series and is the answer not in the manual?

Questions and answers

Related Manuals for molex 207129 Series

Summary of Contents for molex 207129 Series

  • Page 1 The following is a partial list of the product part numbers and their specifications that this tool is designed to run. We will be adding to this list and an up to date copy is available on www.molex.com. Wire Size: 24-26 AWG 0.20-0.12mm²...

  • Page 2: Operation

    Note: The tamper proof ratchet action will not release the tool until it has been fully closed. 5. Remove the crimp and inspect for proper crimp location, and check for insulation closure. Molex offers a Crimp Inspection Handbook for closed barrel industrial product. See our website or contact your sales engineer.

  • Page 3: Maintenance

    RHT-4753 Hand Crimp Tool Maintenance LUBRICATION POINTS (BOTH SIDES) LIGHT OIL It is recommended that each operator of the tool be made (EVERY 3 MONTHS aware of, and responsible for, the following maintenance OR 5,000 CRIMPS) steps: LOOSEN M4 SCREW 1.

  • Page 4: Tool Calibration

    This tool is designed for hand use only. Any clamping, fixturing, or use of handle extensions voids this warranty. Hand held crimping tools are intended for low volume, prototyping, or repair requirements only. CAUTION: Molex crimp specifications are valid only when used with Molex terminals, applicators and tooling. UNCONTROLLED COPY Doc No.

  • Page 5: Parts List

    RHT-4753 Hand Crimp Tool PARTS LIST Item Order No Description Quantity 64003-7100 Hand Crimp Tool (Fig. 6) 64000-0076 Repair Kit (Springs, Pins and E-Rings) 63810-0000 Handle 64003-1175 Locator Assembly 64003-7170 Tooling Kit Tooling Kit Only 64003-7102 Conductor Punch 64003-7101 Conductor Anvil 64003-7104 Insulation Punch 64003-7103...

  • Page 6: Certificate Of Calibration

    %$%FHE8WÁ %!##" !Á #"##%#%#%Á !&%&! &Á Et„wpÁBEÁ#" ÁTR4Á fxpƒtyq€3x€wp‰h€xÁ qpytyq€3x€wp‰h€xÁ qp„tyq€3x€wp‰h€xÁ p†ƒtyq€3x€wp‰h€xÁ # &#&!""Á 9f‰'Á# &#& " Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No. 64003-7100 Release Date: 04-20-06 Page 6 of 6 Revision: A Revision Date: 04-20-06...
