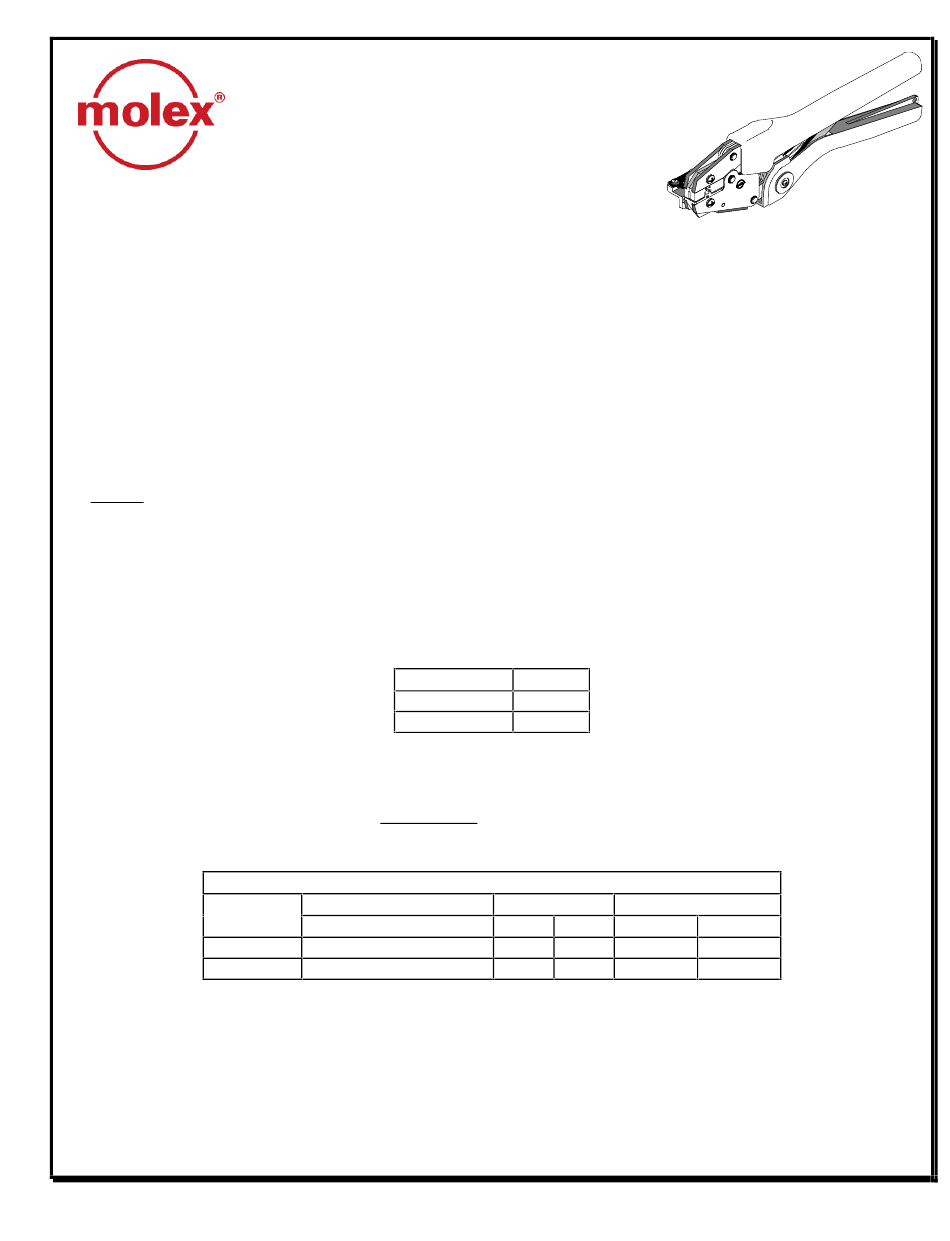

molex 207129 Series Operating Instruction Sheet And Specifications

Hand Crimp Tool for AviKrimp ® FQD Terminals
FEATURES
Œ
Œ
A full cycle ratcheting hand tool ensures complete crimps
Œ
Long handles for comfortable crimping with reduced crimping force
Œ
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Œ
Insulation crimp adjustment allows a precise insulation crimp. To meet or exceed the requirements of UL, CSA and Military Cass II
Single color-coded crimp pocket eliminates the possibility of using the wrong pocket
SCOPE
Products: AviKrimp ® Female Quick Disconnect 10-12 AWG
Testing
Mechanical
The tensile test or pull test is a means of evaluating the mechanical properties of the crimped connections. The following charts
show the UL specifications for various wire sizes. The tensile strength is shown in pounds and indicates the minimum acceptable
force to break or separate the terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool is designed to run. We will be adding
to this list and an up to date copy is available on www.molex.com.
Terminal No.
19019-0037
Æ
19019-0038
Doc No. ATS-640017300
Revision: A
Hand Crimp Tool
Operating Instruction Sheet and Specifications
Part No. 64001-7300
Engineering No. RHT 2210
(Replaces 19285-0020)
Wire Size (AWG)
*UL – 310 – Quick Disconnects
Wire Size: 10 – 12 AWG 5.00 – 3.30mm²
Terminal Eng No. (REF)
Æ
Available in Reel form only
C-8143
C-8143T
Release Date: 01-22-07
Revision Date: 01-22-07
*UL - 310
12 70
10 80
Wire Strip Length Insulation Diameter Max.
In mm
.375 9.53
.375 9.53
UNCONTROLLED COPY
In mm
.150 3.81
.150 3.81
Page 1 of 6
