molex 207129 Series Specification Sheet

Hand crimp tool for edgelock crimp terminal
Hide thumbs Also See for 207129 Series:
1
2
3
4
5
6
7

Advertisement

Table of Contents

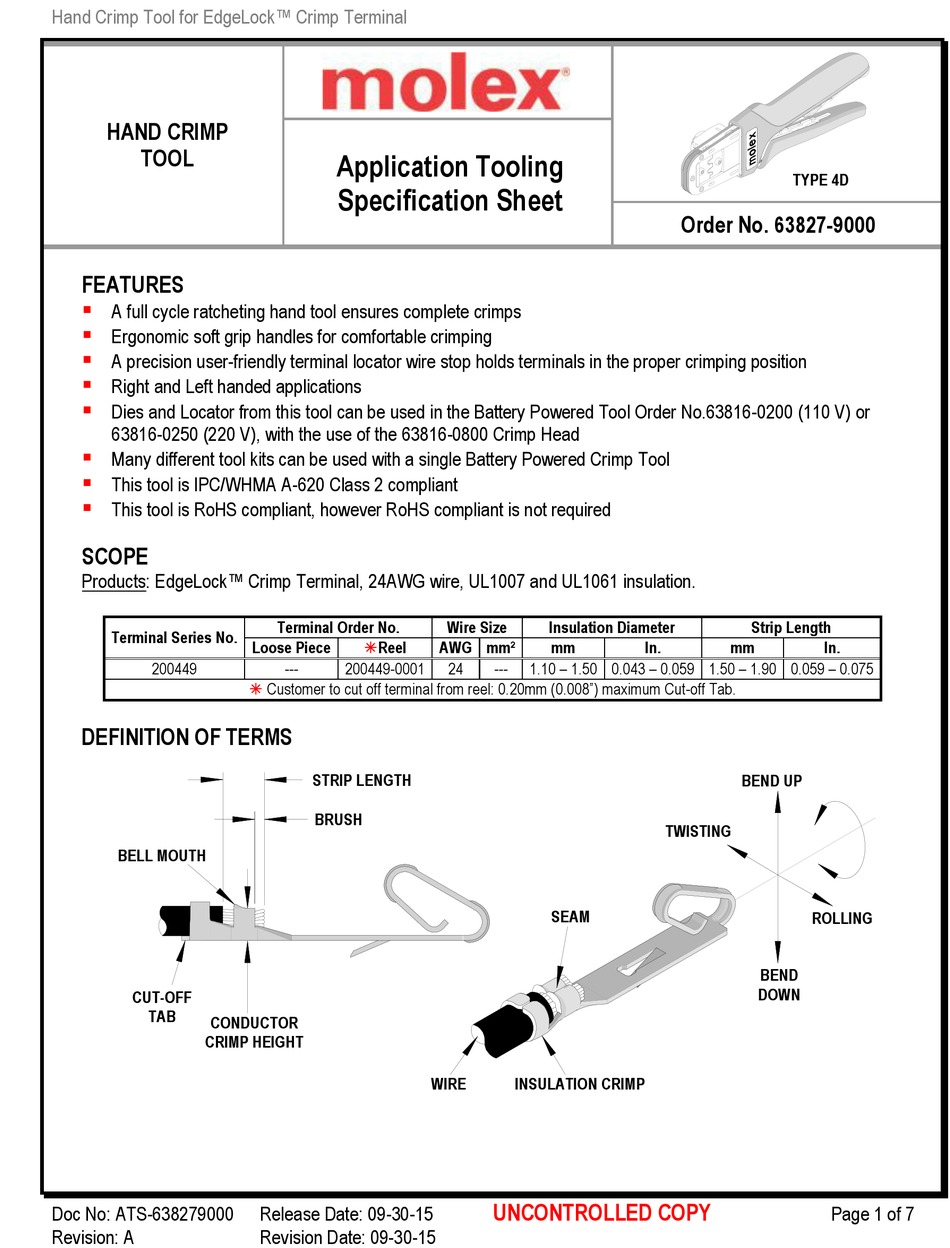

Hand Crimp Tool for EdgeLock™ Crimp Terminal
HAND CRIMP
TOOL
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Right and Left handed applications
Dies and Locator from this tool can be used in the Battery Powered Tool Order No.63816-0200 (110 V) or
63816-0250 (220 V), with the use of the 63816-0800 Crimp Head
Many different tool kits can be used with a single Battery Powered Crimp Tool
This tool is IPC/WHMA A-620 Class 2 compliant
This tool is RoHS compliant, however RoHS compliant is not required
SCOPE
Products: EdgeLock™ Crimp Terminal, 24AWG wire, UL1007 and UL1061 insulation.
Terminal Series No.
200449
DEFINITION OF TERMS
BELL MOUTH
CUT-OFF
TAB
CONDUCTOR
CRIMP HEIGHT
Doc No: ATS-638279000
Revision: A
Application Tooling
Specification Sheet
Terminal Order No.
Loose Piece
Reel
---
200449-0001
Customer to cut off terminal from reel: 0.20mm (0.008") maximum Cut-off Tab.
STRIP LENGTH
BRUSH
Release Date: 09-30-15
Revision Date: 09-30-15
Wire Size
Insulation Diameter
AWG mm²
mm
24
---
1.10 – 1.50 0.043 – 0.059 1.50 – 1.90 0.059 – 0.075
SEAM
WIRE
INSULATION CRIMP
UNCONTROLLED COPY
TYPE 4D
Order No. 63827-9000
Strip Length
In.
mm
BEND UP
TWISTING
ROLLING
BEND
DOWN
In.
Page 1 of 7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 207129 Series and is the answer not in the manual?

Questions and answers

Related Manuals for molex 207129 Series

Summary of Contents for molex 207129 Series

  • Page 1 Hand Crimp Tool for EdgeLock™ Crimp Terminal HAND CRIMP TOOL Application Tooling TYPE 4D Specification Sheet Order No. 63827-9000 FEATURES  A full cycle ratcheting hand tool ensures complete crimps  Ergonomic soft grip handles for comfortable crimping  A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position ...

  • Page 2: Operation

    HANDLE WILL IN DOWN SPRING OPEN POSTION CAUTION: Crimp only the Molex terminals listed in the scope for this tool. Do not crimp hardened objects as damage can occur to the tool frame and/or crimp dies. Open the tool by squeezing the handles together.
  • Page 3 Hand Crimp Tool for EdgeLock™ Crimp Terminal RELEASE LOCATOR LOCATOR LOCATOR BUTTON PUSHED THRU TOOLING LOCATOR BUTTON PUSHED IN Figure 3 TERMINAL TERMINAL TOOLING 4. Release the locator button, allowing the locator to return to the PARTIALLY CLOSED crimping position. PARTIALLY 5.
  • Page 4 Hand Crimp Tool for EdgeLock™ Crimp Terminal 4. To reinstall the new locator, make sure LOCATOR the hand tool is in the open position. 5. Press the red insert down as far as it will SQUEEZE go as shown in Figure 6B. HERE MAKE SURE 6.

  • Page 5: Maintenance

    Hand Crimp Tool for EdgeLock™ Crimp Terminal Maintenance It is recommended that each operator of the tool be made aware of, and responsible for, the following maintenance steps: 1. Remove dust, moisture, and other contaminants with a clean brush, or soft, lint free cloth.

  • Page 6: Warranty

    12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.

  • Page 7: Parts List

    Hand Crimp Tool Figure 12 63827-9075 Locator Assembly 63810-0104 Spring, Return 63810-0105 Spring, Ratchet RATCHET RELEASE LEVER Figure 12 Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-638279000 Release Date: 09-30-15 Page 7 of 7 Revision: A Revision Date: 09-30-15...
