molex 207129 Series Manual

Hide thumbs Also See for 207129 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

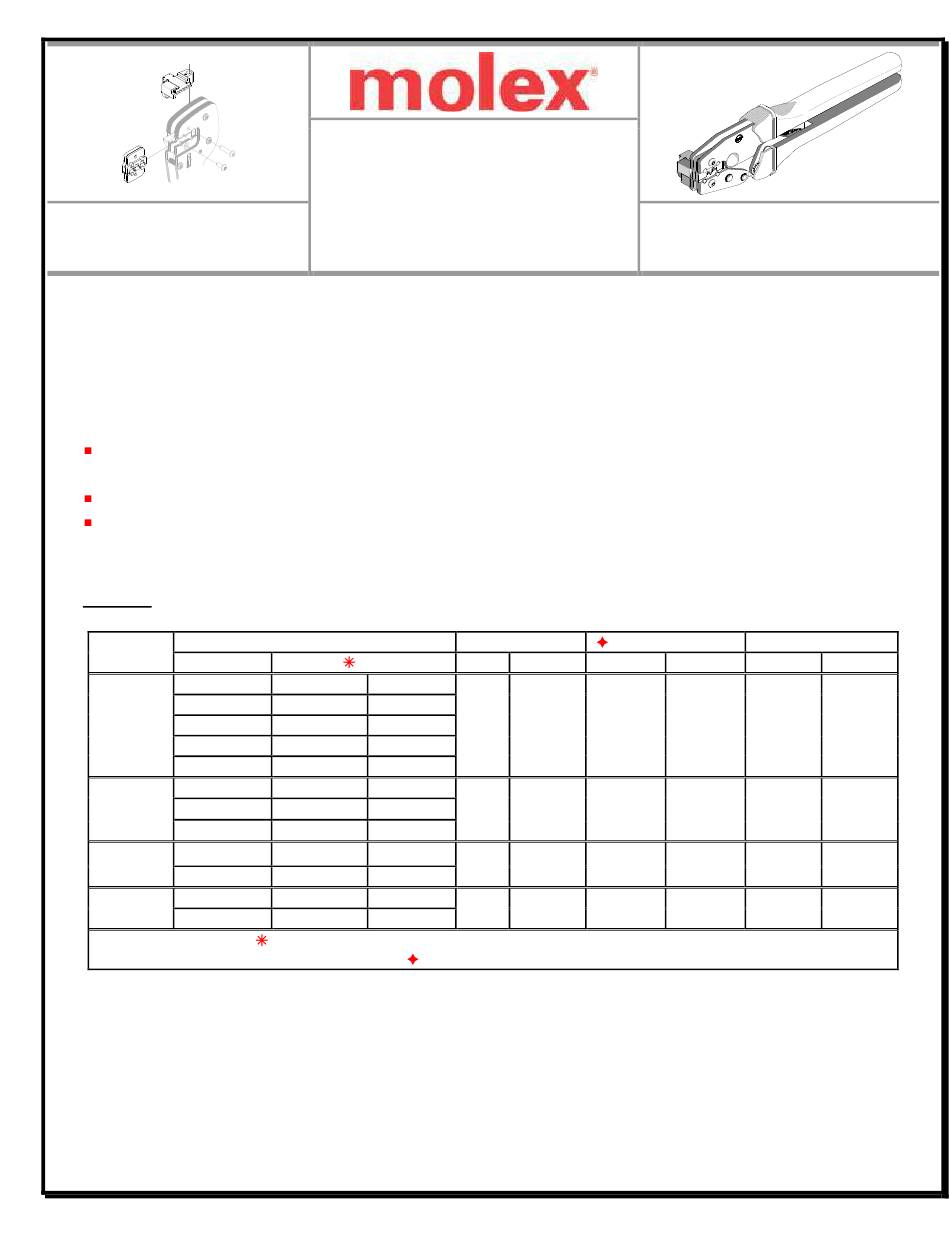

Tool Kit for
SPOX™
Crimp Terminals
Tool Kit
Order No. 63811-5270
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
Many different Tool kits can be used with a single Battery Powered Tool.
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.
SCOPE
Products: 2.50mm (.098") Pitch SPOX™ Wire-to-Board and Wire-to-Wire Crimp Terminal, 22-28 AWG.
Terminal
Series No.
Loose Piece
08-70-0057
08-70-0059
5103
39-00-0189
08-70-1040
5263
08-70-1046
39-00-0152
45627-1002
45627
45627-9002
50802-8100
50802
50802-9101
Doc No: ATS-6381152HM Release Date: 04-03-06
Revision: D
Application Tooling
Specification Sheet
Terminal Order No.
Reel
08-70-0056
39-00-0188
08-70-0058
39-00-0387
08-700-0569
39-00-0388
08-700-0589
39-00-0389
39-00-0390
08-70-1039
39-00-0151
08-70-1045
39-00-0159
39-00-0160
45627-0002
50802-8000
50802-9001
Customer to cut off terminal from reel: 0.30mm (.012") maximum Cut-off Tab.
See Conditions on page 2.
Revision Date: 06-30-11
Wire Size
Insulation Diameter
AWG
mm²
mm
22-28
0.35-0.08
1.15-1.90
22-28
0.35-0.08
1.15-1.90
22-24
0.35-0.20
1.15-1.90
22-24
0.35-0.20
1.15-1.90
UNCONTROLLED COPY
TYPE 2C
Hand Crimp Tool
Order No. 63811-5200
Strip Length
In.
mm
In.
.045-.075
3.30-3.80
.130-.150
.045-.075
3.30-3.80
.130-.150
.045-.075
3.30-3.80
.130-.150
.045-.075
3.30-3.80
.130-.150
Page 1 of 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 207129 Series and is the answer not in the manual?

Questions and answers

Related Manuals for molex 207129 Series

Summary of Contents for molex 207129 Series

  • Page 1 Tool Kit for SPOX™ Crimp Terminals TYPE 2C Application Tooling Specification Sheet Tool Kit Hand Crimp Tool Order No. 63811-5270 Order No. 63811-5200 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning Easy handling due to outstanding force ratio Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.

  • Page 2: Definition Of Terms

    Tool Kit for SPOX™ Crimp Terminals BEND UP DEFINITION OF TERMS CONDUCTOR BRUSH BELL MOUTH CRIMP INSULATION ROLLING CRIMP ▲SEE NOTE TWISTING STRIP BEND LENGTH DOWN CRIMP HEIGHT The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the scope.

  • Page 3: Installation

    Pull Force value must exceed the minimum pull force specifications listed. CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die.
  • Page 4 Tool Kit for SPOX™ Crimp Terminals 2. Swing the terminal locator away from the crimp tool shown in Figure WIRE STOP 4. Some terminals with large insulation grips may interfere with the crimp tooling when swinging the locator into position. The terminal WIRE must then be loaded into the locator in the closed/crimp position.

  • Page 5: Maintenance

    Tool Kit for SPOX™ Crimp Terminals 3. Firmly press down on the brass pivot shaft with your thumb, while pulling the locator up. Slip the locator off the top of the brass pivot Figure 7B shaft. See Figure 6. 4. Replace it with the desired locator by putting over the brass pivot shaft and snapping it into place.

  • Page 6: Warranty

    12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
  • Page 7 Tool Kit for SPOX™ Crimp Terminals Applications for the Tool Kit Hand Crimp Tool Battery Powered Tool POWER CRIMP HEAD TOOLING KIT TOOLING BATTERY HAND CRIMP POWERED LOCKING PINS FRAME LONG TOOL AND SHORT Figure 9 Figure 10 WARNING: NEVER operate service, install tool kits, or adjust the Power Crimp Head without proper instruction and without first reading and understanding the instructions in the proper Manual or Specification Sheet.

  • Page 8: Hand Tool Parts List

    Tool Kit for SPOX™ Crimp Terminals HAND TOOL PARTS LIST Item Number Order Number Description Quantity 63810-0100 Hand Crimp Frame (Short) 63810-0101 Wrench Set (Not included) 63810-0102 Locator Base 63810-0103 Repair Kit (Not included) 63811-5270 Tool Kit with Locator 63811-5275 Locator #1-Black 63811-5276 Locator #2-Gray...

  • Page 9: Power Head Parts List

    Power Crimp Head 63811-5270 63811-5270 Tool Kit M4 by 8 Long BHCS M4 by 18 Long BHCS M4 by 10 Long BHCS Figure 12 http://www.molex.com UNCONTROLLED COPY Doc No: ATS-6381152HM Release Date: 04-03-06 Page 9 of 9 Revision: D Revision Date: 06-30-11...
