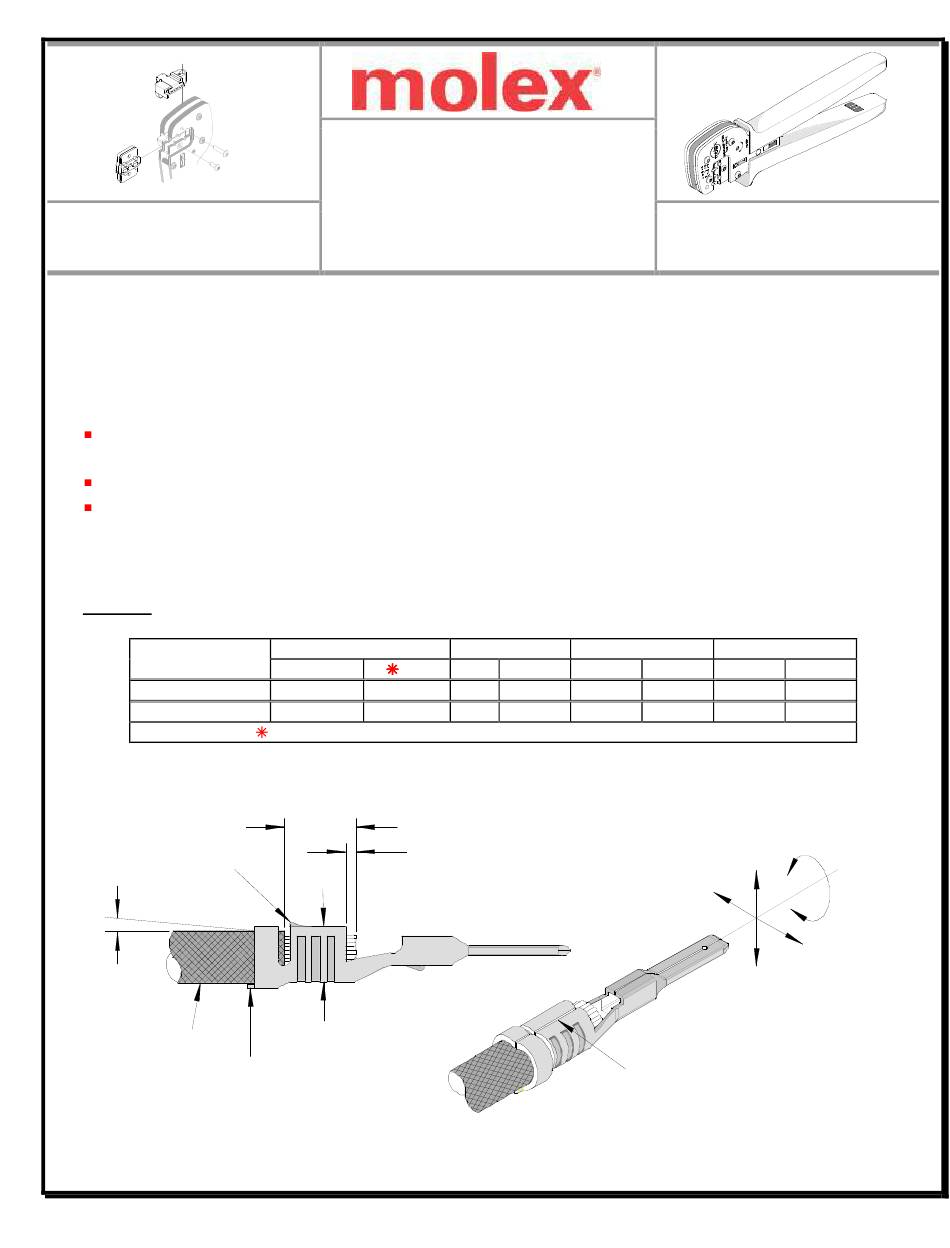

Tool Kit for MLX150L™ Crimp Terminals
Tool Kit
Order No. 63811-5370

FEATURES

A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
Many different Tool kits can be used with a single Battery Powered Tool.
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.

SCOPE

Products: MX150L™10-12 AWG
Terminal Series No.
19431
19434
DEFINITION OF TERMS
BELL MOUTH
WIRE
ANGLE
WIRE
CUT-OFF
TAB
Doc No: ATS-6381153HM Release Date: 04-29-05
Revision: C
Application Tooling
Specification Sheet
Terminal Order No.
Loose Piece
Reel
19431-0016
19431-0001 10-12 5.26-3.31 3.90-4.85 .153-.191 5.50-6.20 .217-.244
19434-0003
19434-0001 10-12 5.26-3.31 3.90-4.85 .153-.191 5.50-6.20 .217-.244
Customer to cut off terminal from reel: 0.50mm (.020") maximum Cut-off Tab.
STRIP LENGTH
CONDUCTOR
BRUSH
CONDUCTOR
CRIMP
Revision Date: 09-07-10
Wire Size
Insulation Diameter
AWG
mm²
mm
SEAM
UNCONTROLLED COPY
TYPE 4C
Hand Crimp Tool
Order No. 63811-5300
Strip Length
In.
mm
In.
BEND UP
TWISTING
BEND
DOWN
Page 1 of 8
