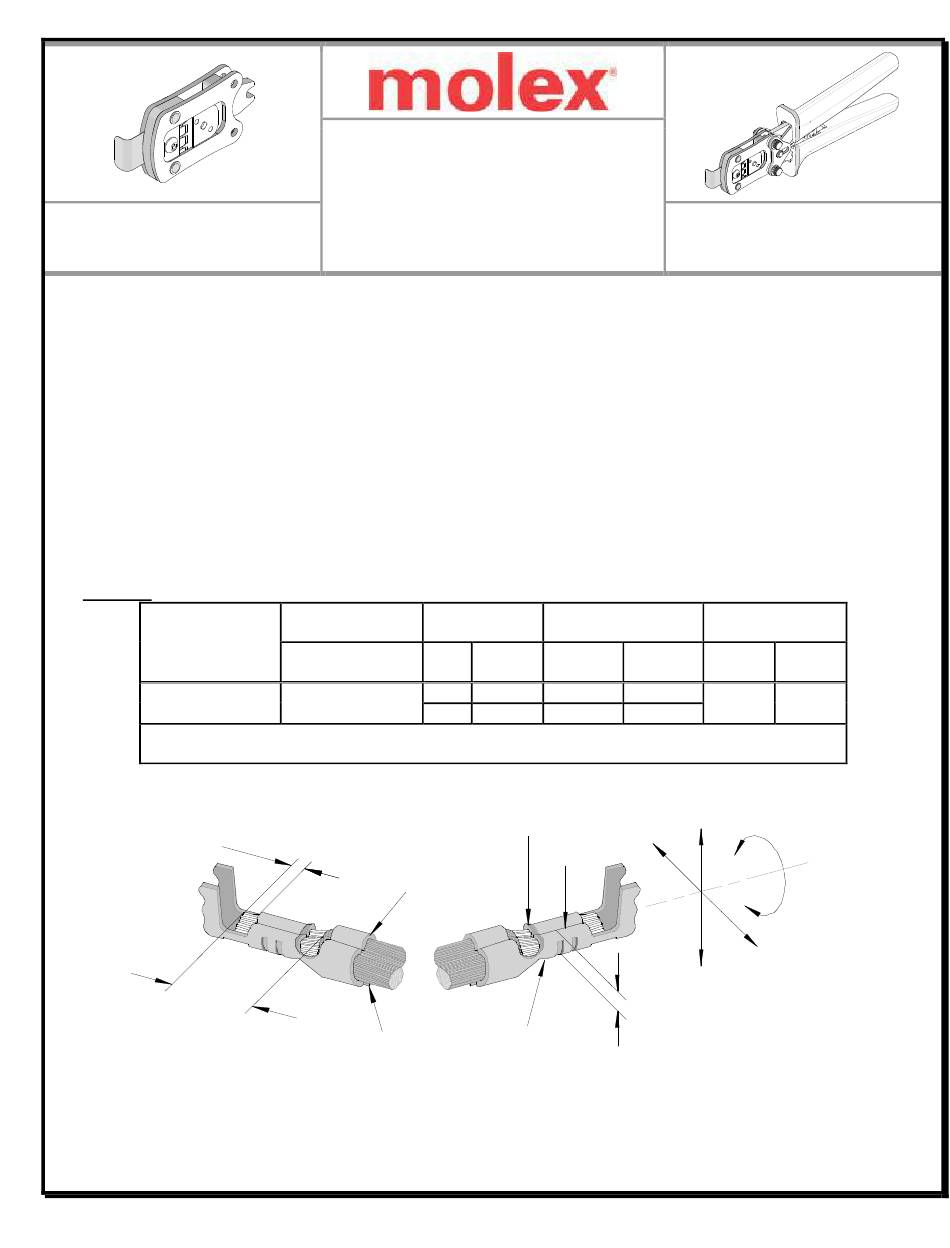

molex 207129 Series Specification Sheet

Hand Crimp Tool for 1.50mm (.059") Pico-SPOX™ Crimp Terminals
Modular Crimp Head
Order No. 63825-9770
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
A-620 Class 2 compliant and RoHS compliant
%
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
%
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
Can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63816-0250 (220 V),
%
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).
SCOPE
Products: 1.50mm (.059") Pico-SPOX™ Crimp Terminal, Female, 24-30 AWG.
Terminal Series No.
87421
(1) Customer to cut off terminal from reel: 0.15mm (.006") maximum Cut-off Tab.
(2) See Conditions on page 2.
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the
scope.
Doc No: ATS-6382597HM
Revision: A
Application Tooling
Specification Sheet
Terminal Order No. Wire Size
(1) Available in Reel
AWG
form only
24
87421-0000
26-30 0.12-0.05
INSULATION
CRIMP
▲SEE NOTE
CUT-OFF TAB
Release Date: 05-06-13
Revision Date: 05-06-13
(2) Insulation Diameter
Maximum
mm² mm
0.20 1.15 .045
1.00 .039
BELL MOUTH
SEAM
CONDUCTOR
COND.CRIMP
CRIMP
HEIGHT
UNCONTROLLED COPY
TYPE 4A
Hand Crimp Tool
Order No. 63825-9700
Strip Length
In. mm In.
1.05-1.54 .041-.061
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 7
