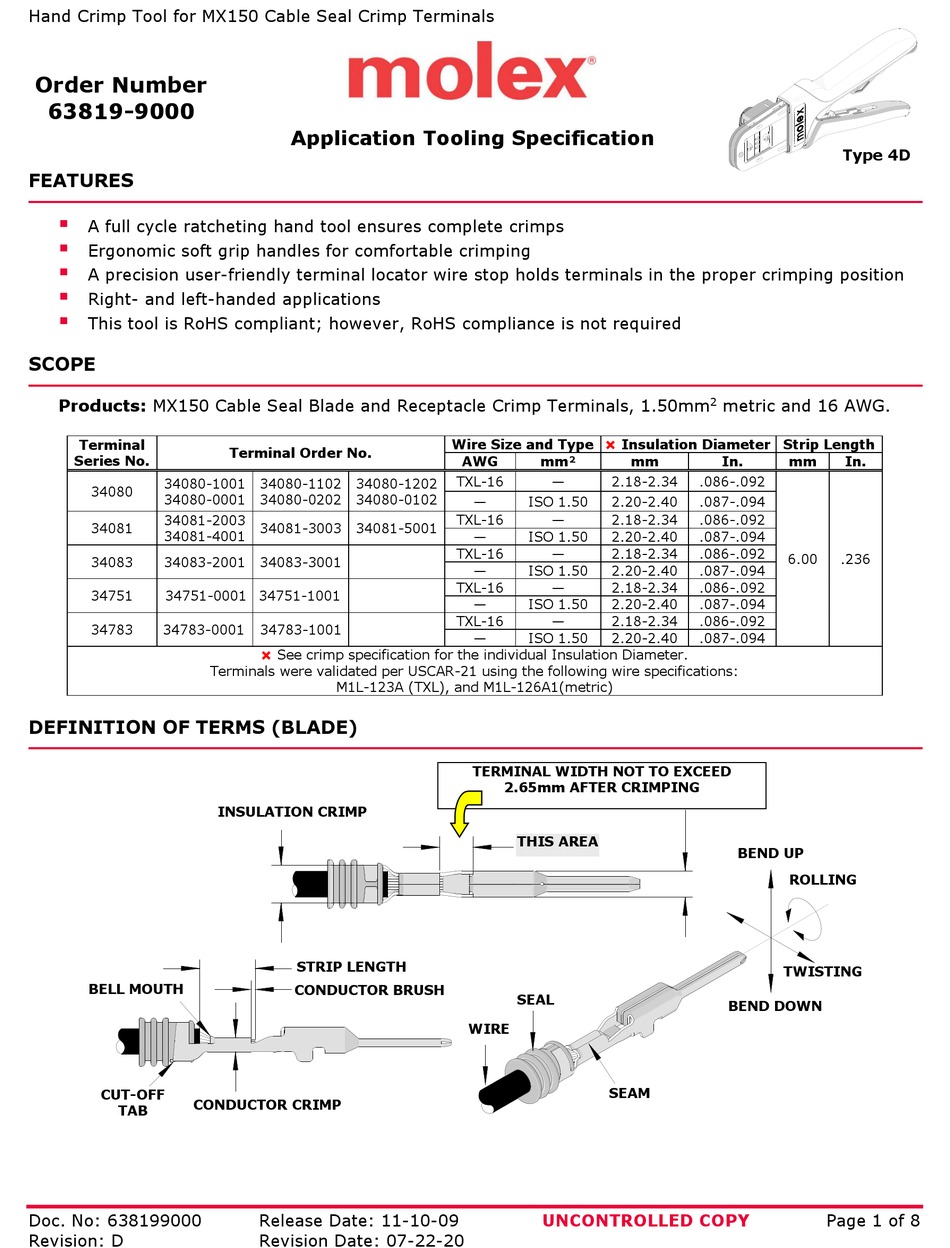

Hand Crimp Tool for MX150 Cable Seal Crimp Terminals
Order Number
63819-9000
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Right- and left-handed applications
This tool is RoHS compliant; however, RoHS compliance is not required
SCOPE
Products: MX150 Cable Seal Blade and Receptacle Crimp Terminals, 1.50mm
Terminal
Series No.
34080-1001
34080
34080-0001
34081-2003
34081
34081-4001
34083
34083-2001
34751
34751-0001 34751-1001
34783
34783-0001
DEFINITION OF TERMS (BLADE)
BELL MOUTH
CUT-OFF
CONDUCTOR CRIMP
TAB
Doc. No: 638199000
Revision: D
Application Tooling Specification
Terminal Order No.
34080-1102
34080-1202
34080-0202
34080-0102
34081-3003
34081-5001
34083-3001
34783-1001
See crimp specification for the individual Insulation Diameter.
Terminals were validated per USCAR-21 using the following wire specifications:
M1L-123A (TXL), and M1L-126A1(metric)
INSULATION CRIMP
STRIP LENGTH
CONDUCTOR BRUSH
Release Date: 11-10-09
Revision Date: 07-22-20
Wire Size and Type
Insulation Diameter Strip Length
AWG
mm²
mm
TXL-16
—
2.18-2.34
—
ISO 1.50
2.20-2.40
TXL-16
—
2.18-2.34
—
ISO 1.50
2.20-2.40
TXL-16
—
2.18-2.34
—
ISO 1.50
2.20-2.40
TXL-16
—
2.18-2.34
—
ISO 1.50
2.20-2.40
TXL-16
—
2.18-2.34
—
ISO 1.50
2.20-2.40
TERMINAL WIDTH NOT TO EXCEED
2.65mm AFTER CRIMPING
THIS AREA
SEAL
WIRE
SEAM
UNCONTROLLED COPY
Type 4D
2
metric and 16 AWG.
In.
mm
In.
.086-.092
.087-.094
.086-.092
.087-.094
.086-.092
6.00
.236
.087-.094
.086-.092
.087-.094
.086-.092
.087-.094
BEND UP
ROLLING
TWISTING
BEND DOWN
Page 1 of 8
