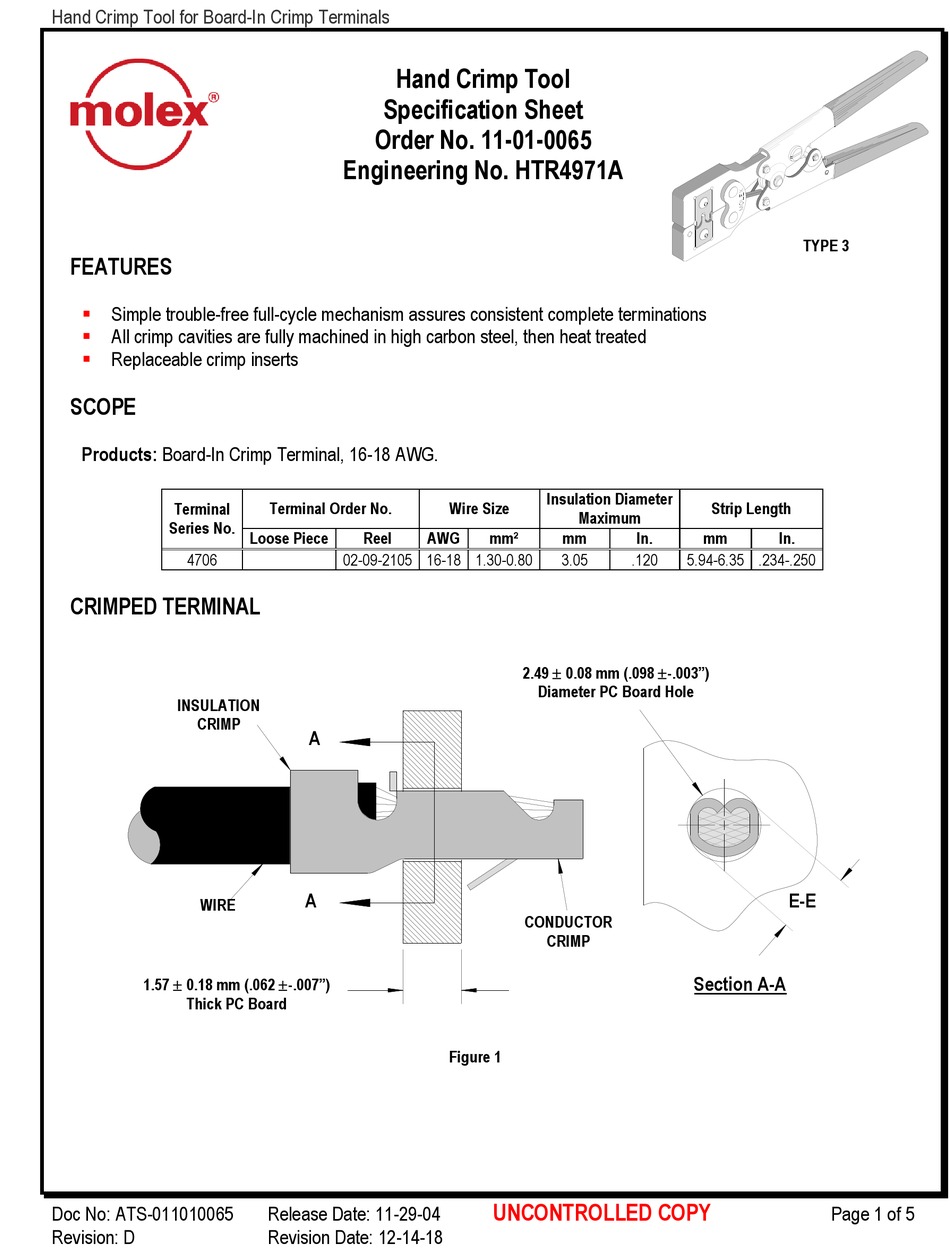

Hand Crimp Tool for Board-In Crimp Terminals

FEATURES

Simple trouble-free full-cycle mechanism assures consistent complete terminations
All crimp cavities are fully machined in high carbon steel, then heat treated
Replaceable crimp inserts

SCOPE

Products: Board-In Crimp Terminal, 16-18 AWG.
Terminal
Series No.
4706
CRIMPED TERMINAL
INSULATION
CRIMP
WIRE
1.57  0.18 mm (.062 -.007")
Thick PC Board
Doc No: ATS-011010065
Revision: D
Hand Crimp Tool
Specification Sheet
Order No. 11-01-0065
Engineering No. HTR4971A
Terminal Order No.
Loose Piece
Reel
AWG
02-09-2105 16-18 1.30-0.80
A
A
Release Date: 11-29-04
Revision Date: 12-14-18
Insulation Diameter
Wire Size
Maximum
mm²
mm
3.05
2.49  0.08 mm (.098 -.003")
Diameter PC Board Hole
CONDUCTOR
CRIMP
Figure 1
UNCONTROLLED COPY
TYPE 3
Strip Length
In.
mm
In.
.120
5.94-6.35 .234-.250
E-E
Section A-A
Page 1 of 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 207129 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for molex 207129 Series

Summary of Contents for molex 207129 Series

  • Page 1 Hand Crimp Tool for Board-In Crimp Terminals Hand Crimp Tool Specification Sheet Order No. 11-01-0065 Engineering No. HTR4971A TYPE 3 FEATURES Simple trouble-free full-cycle mechanism assures consistent complete terminations   All crimp cavities are fully machined in high carbon steel, then heat treated Replaceable crimp inserts ...
  • Page 2 Hand Crimp Tool for Board-In Crimp Terminals CONDITIONS: After crimping, the conductor profiles should measure the following (see notes on page 4): E-E Dimension Wire Size Pull Force Minimum (Figure 1) Terminal Series No. 1.30 2.27-2.39 .090-.094 13.3 4706 0.80 2.27-2.39 .090-.094 13.3...
  • Page 3 3. Complete the crimp by closing the hand tool handles until they release. 4. Remove the crimp and inspect for proper crimp. Molex offers a Crimp Inspection Handbook for closed barrel industrial products. See the Molex website or contact your sales engineer.
  • Page 4 All tools are warranted to be free of manufacturing defects for a period of 30 days. Should such a defect occur, Molex will repair or exchange the tool free of charge. This repair or exchange will not be applicable to altered, misused or damaged tools. This tool is designed for hand use only. Any clamping, fixturing or use of handle extensions voids this warranty.
  • Page 5 Phone: (402) 458-TOOL (8665) E-Mail: applicationtooling@molex.com Website: www.molex.com/applicationtooling Molex is a registered trademark of Molex, LLC in the United States of America and may be registered in other countries; all other trademarks listed herein belong to their respective owners. UNCONTROLLED COPY...
