molex 207129 Series Specification Sheet

Hand crimp tool: for 2.79mm (.110”) slip-on quick disconnect receptacle
Hide thumbs Also See for 207129 Series:
1
2
3
4
5
6

Advertisement

Table of Contents

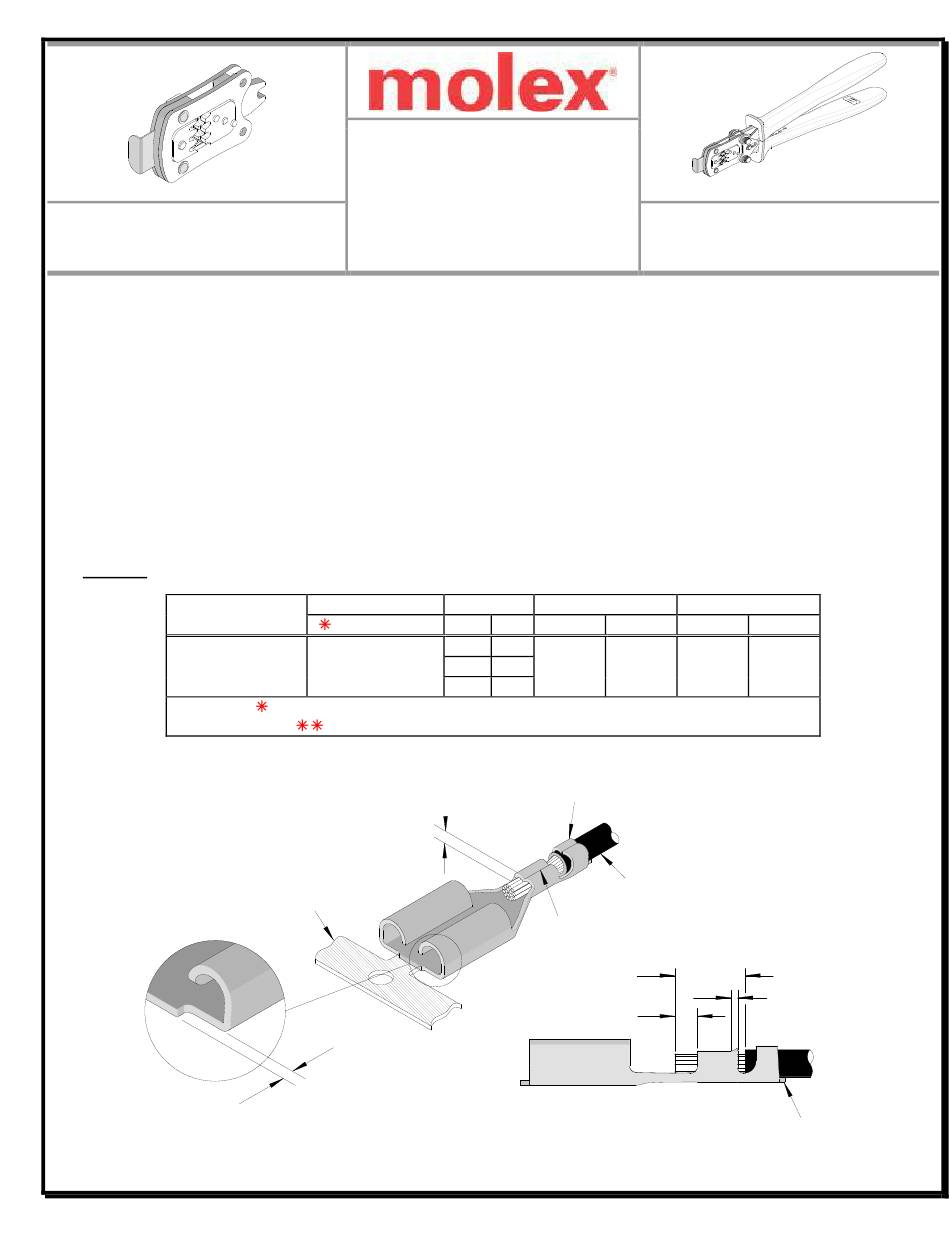

Hand Crimp Tool: for 2.79mm (.110") Slip-On Quick Disconnect Receptacle
Modular Crimp Head
Order No. 63823-8570
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
%
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
Can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63816-0250 (220 V),
%
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).
SCOPE
Products: 2.79mm (.110") Slip-On Quick Disconnect Receptacle, for 16-20 AWG.
Terminal Series No.
35711
DEFINITION OF TERMS
CUT-OFF TAB
Doc No: ATS-6382385HM
Revision: A
Application Tooling
Specification Sheet
Terminal Order No.
Reel Form Only
35711-0700
35711-0710
Customer to cut off terminal from reel: 0.20mm (.008") maximum Cut-off Tab.
See crimp specification for the individual Insulation Diameter.
CONDUCTOR
CRIMP HEIGHT
TERMINAL
STRIP
Release Date: 06-06-11
Revision Date: 06-06-11
Wire Size
Insulation Diameter
AWG mm²
mm
16
1.31
18
0.80
1.80-2.30 .070-.091 4.50-5.00 .177-.197
20
0.52
INSULATION CRIMP
▲SEE NOTE
WIRE
SEAM
STRIP LENGTH
BRUSH
UNCONTROLLED COPY
TYPE 4A
Hand Crimp Tool
Order No. 63823-8500
Strip Length
In.
mm
In.
BELL MOUTH
CUT-OFF TAB
Page 1 of 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 207129 Series and is the answer not in the manual?

Questions and answers

Related Manuals for molex 207129 Series

Summary of Contents for molex 207129 Series

  • Page 1 Hand Crimp Tool: for 2.79mm (.110”) Slip-On Quick Disconnect Receptacle Application Tooling TYPE 4A Specification Sheet Modular Crimp Head Hand Crimp Tool Order No. 63823-8570 Order No. 63823-8500 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning Easy handling due to outstanding force ratio Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,...
  • Page 2 Hand Crimp Tool: for 2.79mm (.110”) Slip-On Quick Disconnect Receptacle OVERLAP FORM GEOMETRY ▲Insulation Crimp Note: PUNCH Due to the terminal’s insulation grip design and/or insulation diameter range, this tool uses “overlap” form geometry in the insulation punch. This produces an overlap insulation crimp (A620 –...
  • Page 3 Repetitive use of this tool should be avoided. 2. Insulated rubber handles are not protection against electrical shock. 3. Wear eye protection at all times. 4. Use only the Molex terminals specified for crimping with this tool. UNCONTROLLED COPY Doc No: ATS-6382385HM...
  • Page 4 3. This tool is intended for standard conductor sizes. It may not give a good insulation crimp support for all insulation sizes. 4. Molex does not repair hand tools (see warranty above). The replacement parts listed are the only parts available for repair. If the handles or crimp tooling is damaged or worn, a new tool must be purchased.
  • Page 5 Hand Crimp Tool: for 2.79mm (.110”) Slip-On Quick Disconnect Receptacle The chart below shows all applications for this Modular Crimp Head. Modular Crimp Head Tool Tool Adapter Adapter Figure Order No. Order no. Description Order No. Description 63816-0000 Hand Crimp Frame (Short) 63816-0050 Hand Crimp Frame (Long) 63823-8570 63816-0200 Battery Power Tool (110 V) 63816-0600 Battery Power Crimp Adapter...
  • Page 6 Locking Pin 63600-0525 Handle Spring 63600-0520 Crimping Spring HANDLE SPRING M4 X 14mm LONG BHCS RATCHET RELEASE LEVER CRIMPING Figure 6 SPRING (2) http://www.molex.com UNCONTROLLED COPY Doc No: ATS-6382385HM Release Date: 06-06-11 Page 6 of 6 Revision: A Revision Date: 06-06-11...

This manual is also suitable for:

63823-857063823-8500
