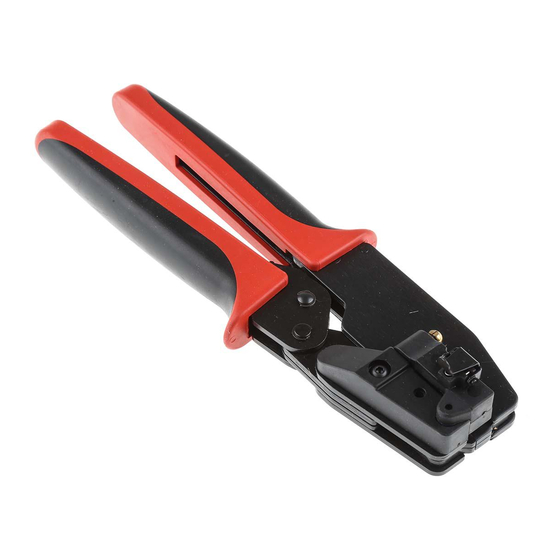

Hand Crimp Tool for
SPOX™
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
This tool is WHMA-IPCA620 Class 2 and RoHS compliant
SCOPE
Products: SPOX™ Crimp Terminal, 18-24 AWG.
Terminal
Series No.
Loose Piece
08-70-1030 39-00-0022 08-70-1031 39-00-0409
5194

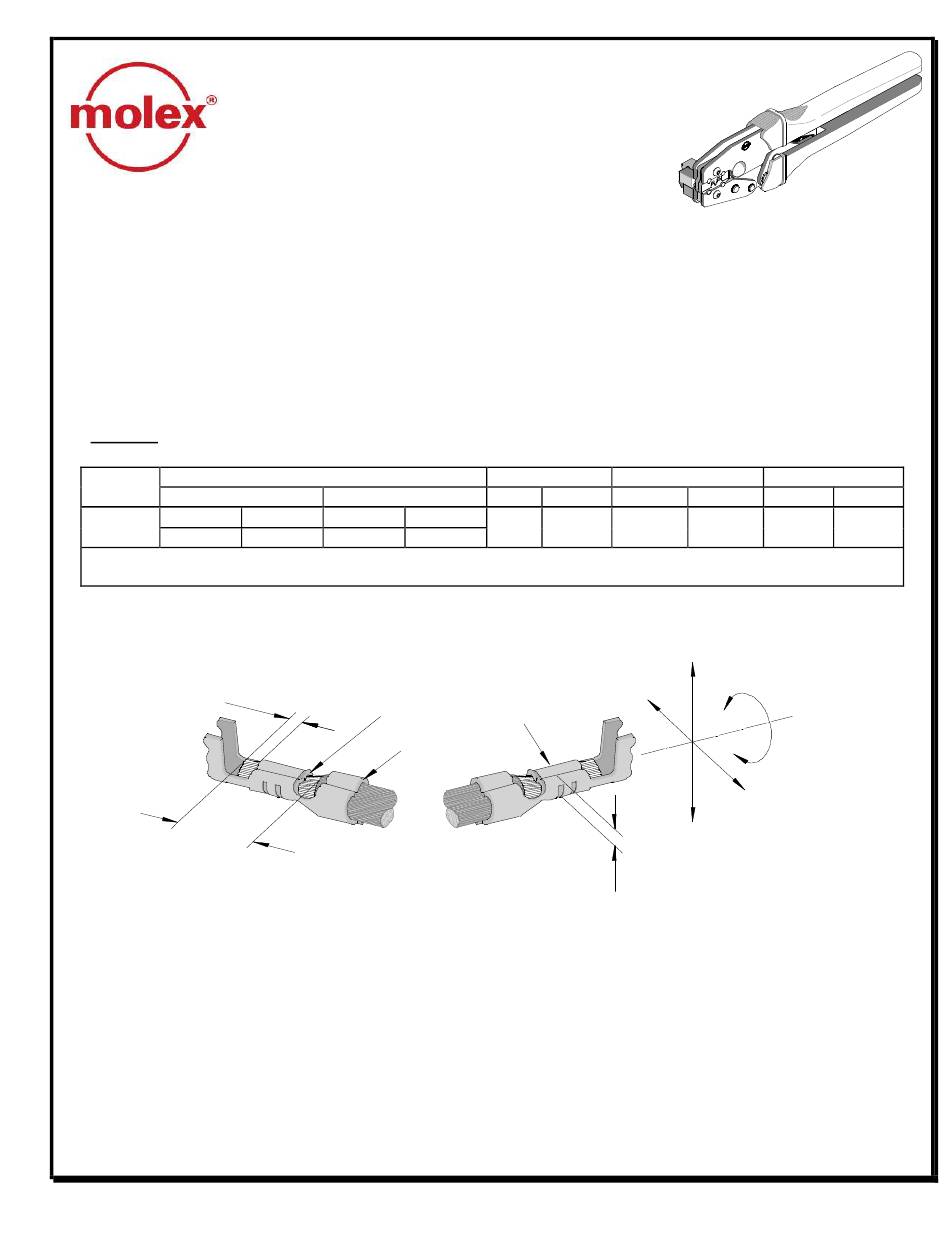

DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the
scope.
Doc No: ATS-638116500
Revision: B
Terminals
HAND CRIMP TOOL
SPECIFICATION SHEET
Order No. 63811-6500
Terminal Order No.
Reel
39-00-0021 39-00-0416
Customer to cut off terminal from reel: 0.40mm (.016") maximum Cut-off Tab.
See Conditions on page 2.
BELL MOUTH
INSULATION
CRIMP
Release Date: 05-10-06
Revision Date: 03-29-08
Wire Size
Insulation Diameter
AWG
mm²
mm
18 - 24 0.80-0.20 1.30-3.00
CONDUCTOR
CRIMP
CRIMP HEIGHT
UNCONTROLLED COPY
TYPE 2C
Strip Length
In.
mm
.051-.118 3.00-3.50 .118-.138
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 6
In.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for molex 63811-6500
Summary of Contents for molex 63811-6500
- Page 1 Hand Crimp Tool for SPOX™ Terminals HAND CRIMP TOOL SPECIFICATION SHEET Order No. 63811-6500 TYPE 2C FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomic soft grip handles for comfortable crimping A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position...
- Page 2 Profile B: 1.30-2.50mm (.051-.098 inch) OPERATION CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die. Open the tool by squeezing the handles together, at the end of the closing stroke, the ratchet mechanism will release the handles, and the hand tool will spring open.
- Page 3 Hand Crimp Tool for SPOX™ Terminals TERMINAL SWING OPEN LOCATOR LOCATOR PUSH HERE TO TERMINAL IN PLACE Figure 2 OPEN WIRE STOP WIRE STOP Note: The tamper proof ratchet action will not release the tool until it has been fully closed. WIRE 7.
- Page 4 Hand Crimp Tool for SPOX™ Terminals LUBRICATION POINTS Maintenance (BOTH SIDES) LIGHT OIL It is recommended that each operator of the tool be made aware of, (EVERY 3 MONTHS OR and responsible for, the following maintenance steps: 5,000 CRIMPS) 1. Remove dust, moisture, and other contaminants with a clean brush, or soft, lint free cloth.
- Page 5 12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
- Page 6 2222 Wellington Ct. 1-800-78MOLEX 81-462-65-2324 65-6-268-6868 49-89-413092-0 Lisle, IL 60532 U.S.A. amerinfo@molex.com feninfo@molex.com fesinfo@molex.com eurinfo@molex.com 630-969-4550 Fax: 630-969-1352 Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-638116500 Release Date: 05-10-06 Page 6 of 6 Revision: B Revision Date: 03-29-08...
