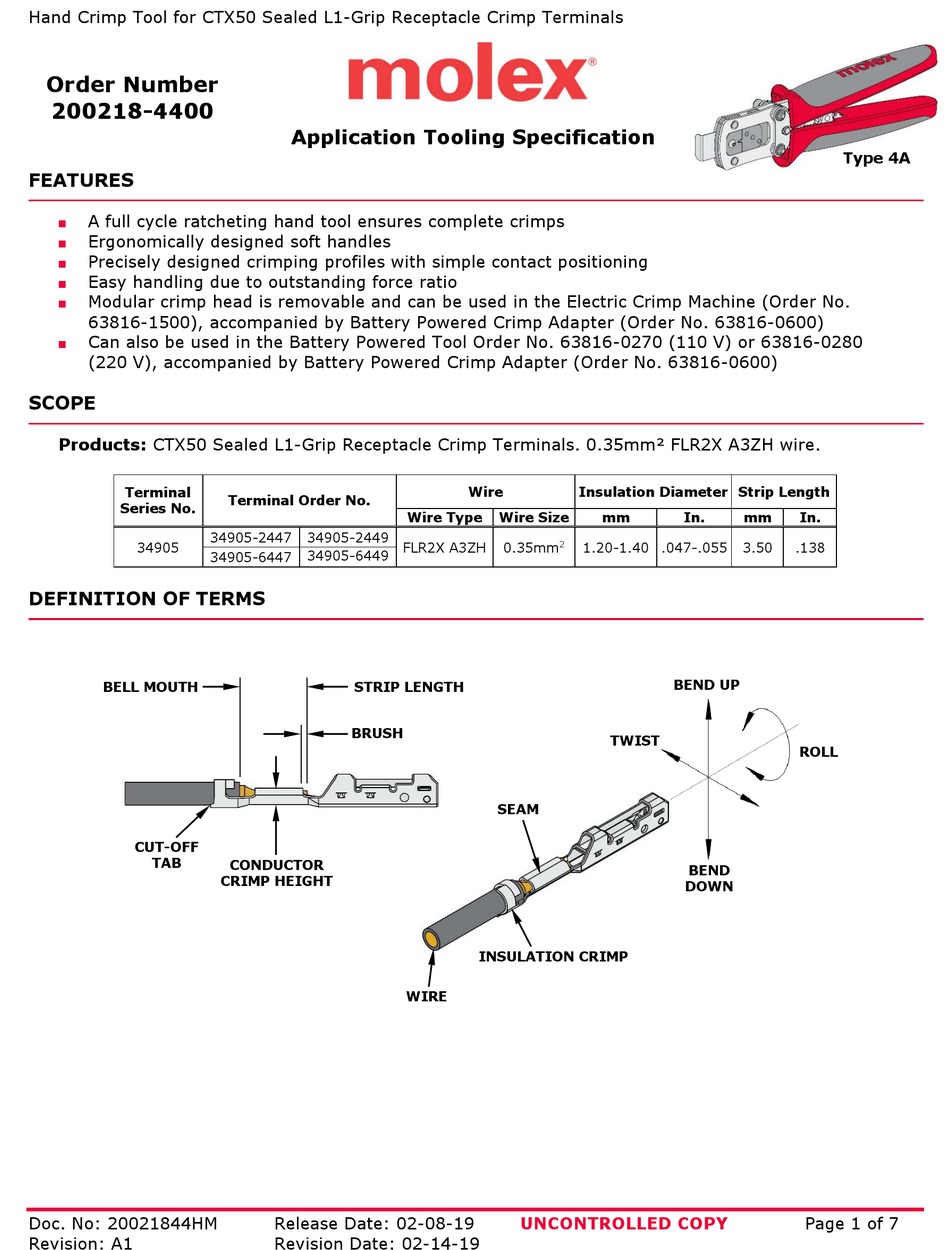

Hand Crimp Tool for CTX50 Sealed L1-Grip Receptacle Crimp Terminals
Order Number
200218-4400
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomically designed soft handles
Precisely designed crimping profiles with simple contact positioning
Easy handling due to outstanding force ratio
Modular crimp head is removable and can be used in the Electric Crimp Machine (Order No.
63816-1500), accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600)
Can also be used in the Battery Powered Tool Order No. 63816-0270 (110 V) or 63816-0280
(220 V), accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600)
SCOPE
Products: CTX50 Sealed L1-Grip Receptacle Crimp Terminals. 0.35mm² FLR2X A3ZH wire.
Terminal
Series No.
34905
DEFINITION OF TERMS
BELL MOUTH
CUT-OFF
TAB
Doc. No: 20021844HM
Revision: A1
Application Tooling Specification
Terminal Order No.
34905-2447
34905-2449
34905-6449
34905-6447
STRIP LENGTH
BRUSH
CONDUCTOR
CRIMP HEIGHT
Release Date: 02-08-19
Revision Date: 02-14-19
Wire
Insulation Diameter Strip Length
Wire Type
Wire Size
FLR2X A3ZH
0.35mm
2
SEAM
INSULATION CRIMP
WIRE
UNCONTROLLED COPY
mm
In.
mm
1.20-1.40 .047-.055
3.50
BEND UP
TWIST
BEND
DOWN
Type 4A
In.
.138
ROLL
Page 1 of 7
