Design and function
Transport and installation
•
Push the cable plug for the welding current (TIG) into the connector socket (TIG) and lock by turning
to the right.
•
Insert shielding gas rapid-action closure nipple in the quick connect coupling and engage.
•
Insert welding torch control lead into the 12-pole connection socket and secure with the crown nut.
•
Lock connecting nipples of the cooling water tubes into the corresponding quick connect couplings:
Return line red to quick connect coupling, red (coolant return) and
supply line blue to quick connect coupling, blue (coolant supply).

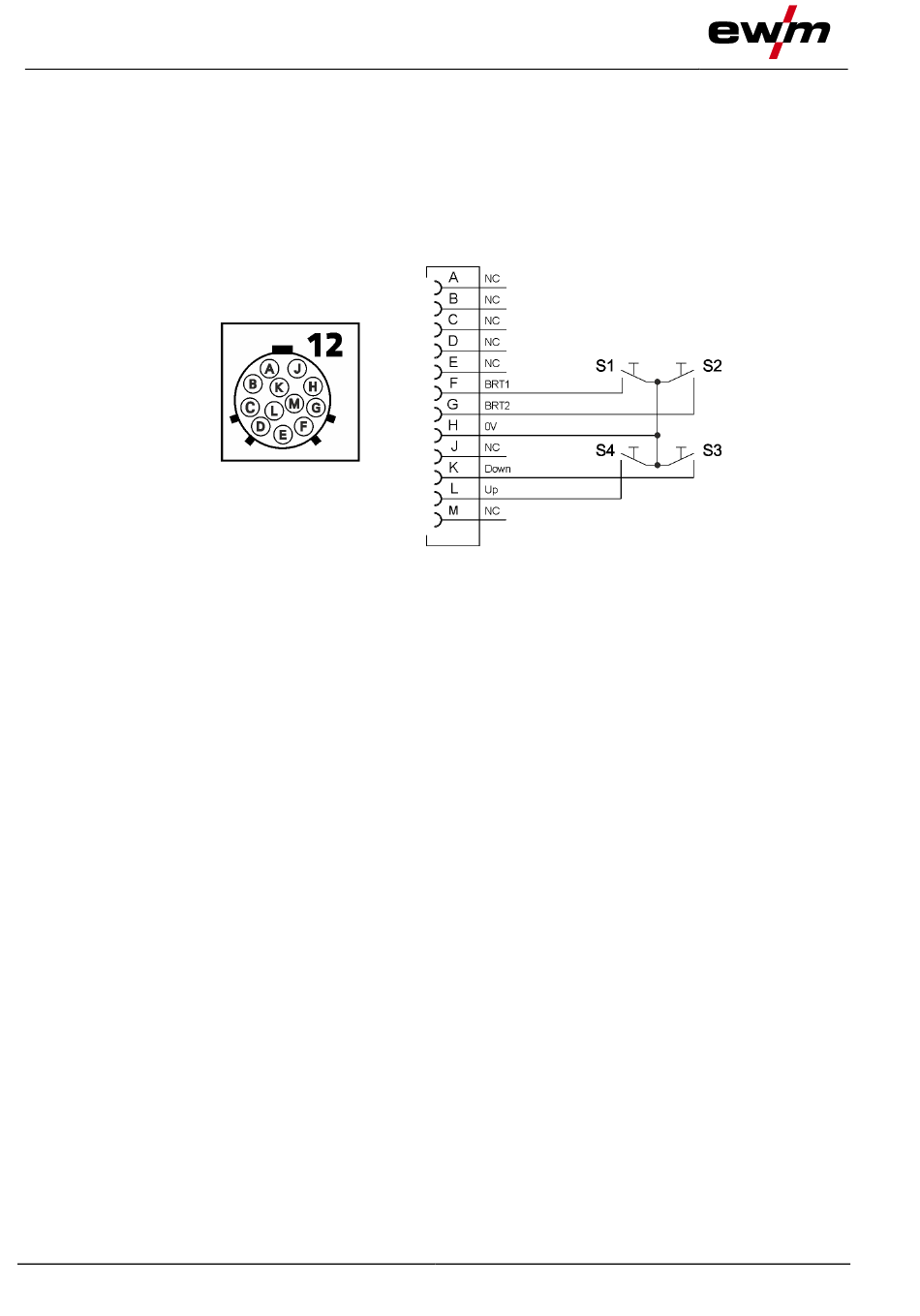

5.1.10.1 Control cable pin configuration

36
Figure 5-12
099-000237-EW501
25.04.2019
