Machine control – Operating elements
Machine control – Concealed operating elements
4.3.1
Item Symbol
1
2
3
4 sec
5
6
7
8 Super-
puls
9
10
22
Description 0
Select welding parameters button
This button is used to select the welding parameters depending on the welding process
and operating mode used.
Signal light, wire feeder start delay
Setting range 0.0 s to 20.0 s
Signal light, wire feed speed of main program (P
Signal light, duration of main program P
Setting range 0.1 s to 20.0 s (0.1 s increments).
Used e.g. in connection with the super pulse function
Signal light, wire feed speed of reduced main program (P
Signal light, duration of reduced main program P
Setting range: 0.1 s to 20.0 s (0.1 s increments).
Use in conjunction with the SuperPulse function or tack welding.
Signal light, wire return
Setting range from 0.0 mm to 50.0 mm
Signal lamp, super pulse function
Lights up when the super pulse function is active.
Push-button, wire inching
Potential- and gas-free inching of the wire electrode through the hose package to the
welding torch > see 5.1.11.3 chapter.
Push-button gas test / rinse hose package > see 5.1.12 chapter

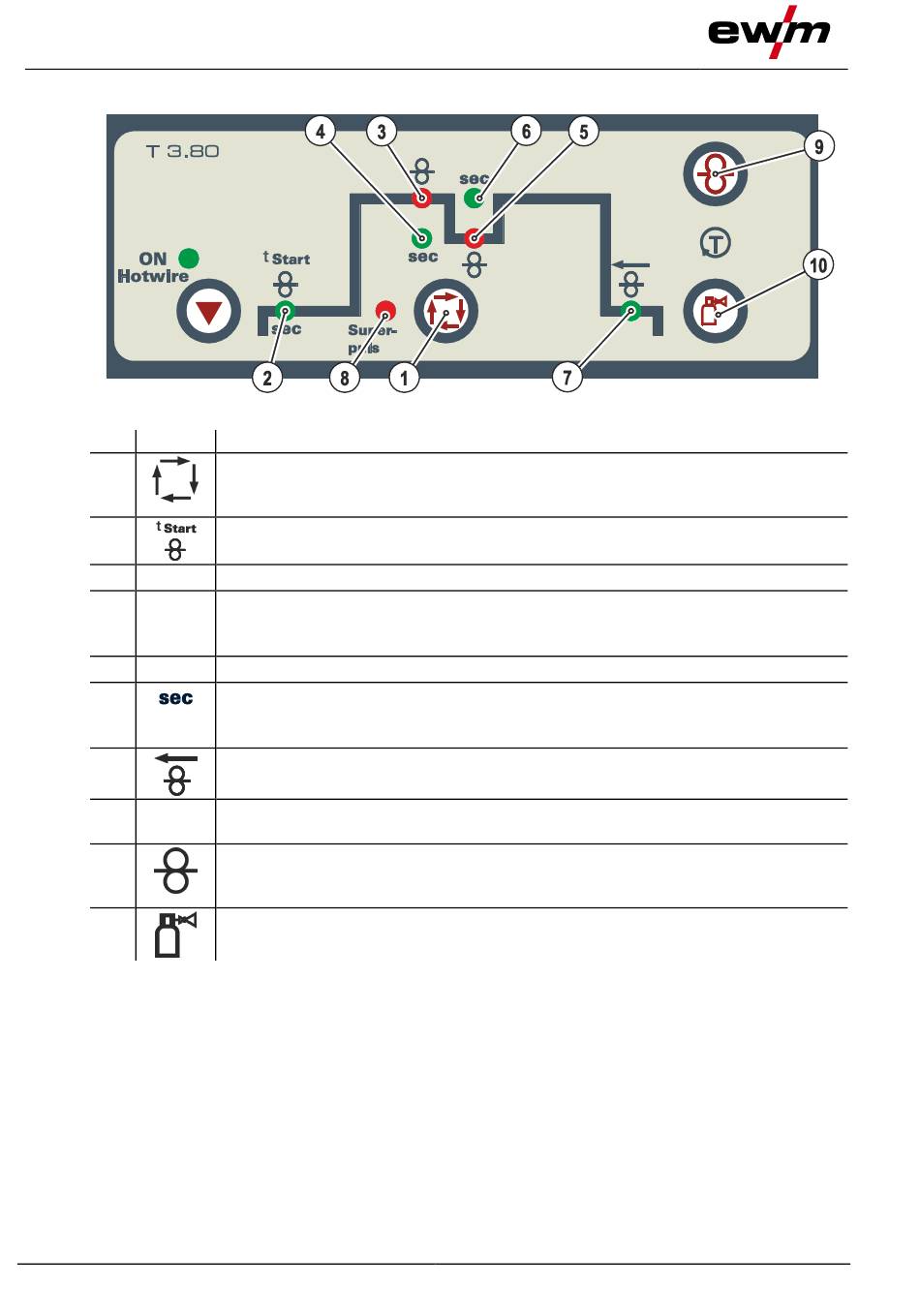

Figure 4-4
)
