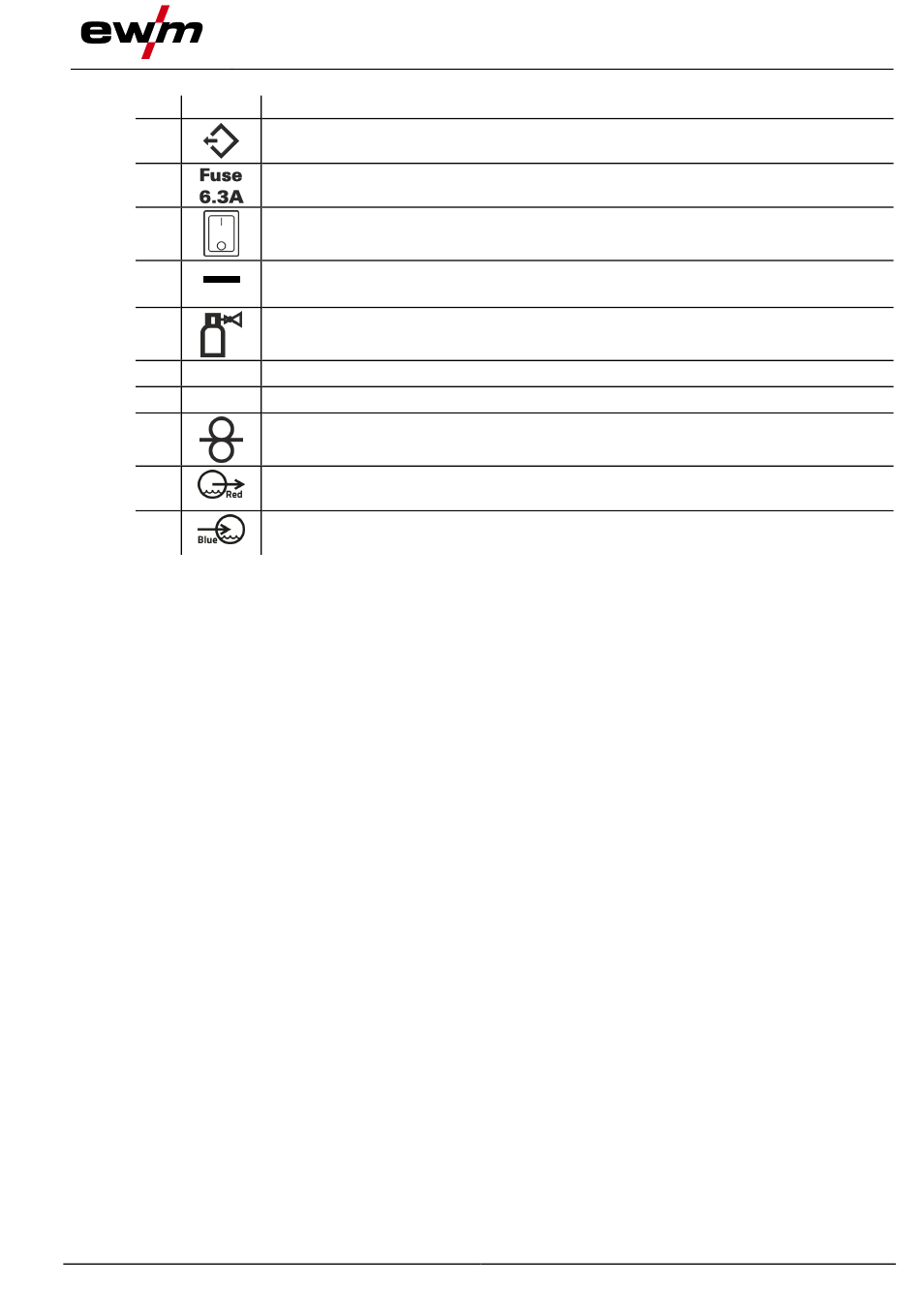

Machine description – quick overview
Description
0
Connector plug, 5-pole
Control lead
Machine fuse (6,3 A)
Main switch, machine on/off
Connector plug (TIG)
Welding current, minus potential
Connecting nipple G¼, shielding gas connection
Mains connection cable > see 5.1.7 chapter
Cooling air inlet
External wire feed inlet
Pre-cut casing inlet for external wire feed.
Quick connect coupling (red)
coolant return
Quick connect coupling (blue)
coolant supply
Machine control – Operating elements
