5.1.16.2 Non-latched Manual

The welding machine (power source) must be set to operating mode "latched".
First cycle (current)
•
Press torch trigger 1 (BRT 1), the gas pre-flow time elapses.
•
HF ignition pulses jump from the tungsten electrode to the workpiece. The arc ignites.
•
Welding current flows.
Second cycle (current)
•
BRT 1 Release .
•
The welding current ramps up to the main current AMP in the selected up-slope time.
First cycle (wire)
•
Press torch trigger 2 (BRT 2).
Wire electrode is fed.
Second cycle (wire)
•
BRT 2 Release .
Wire electrode feeding is stopped, wire electrode is returned by the set wire return value.
Third cycle (current)
•
BRT 1 Press .
•
The main current is reduced in the selected down-slope time.
Fourth cycle (current)
•
BRT 1 Release , the arc extinguishes.
•
Shielding gas continues to flow in the selected gas post-flow time.
46

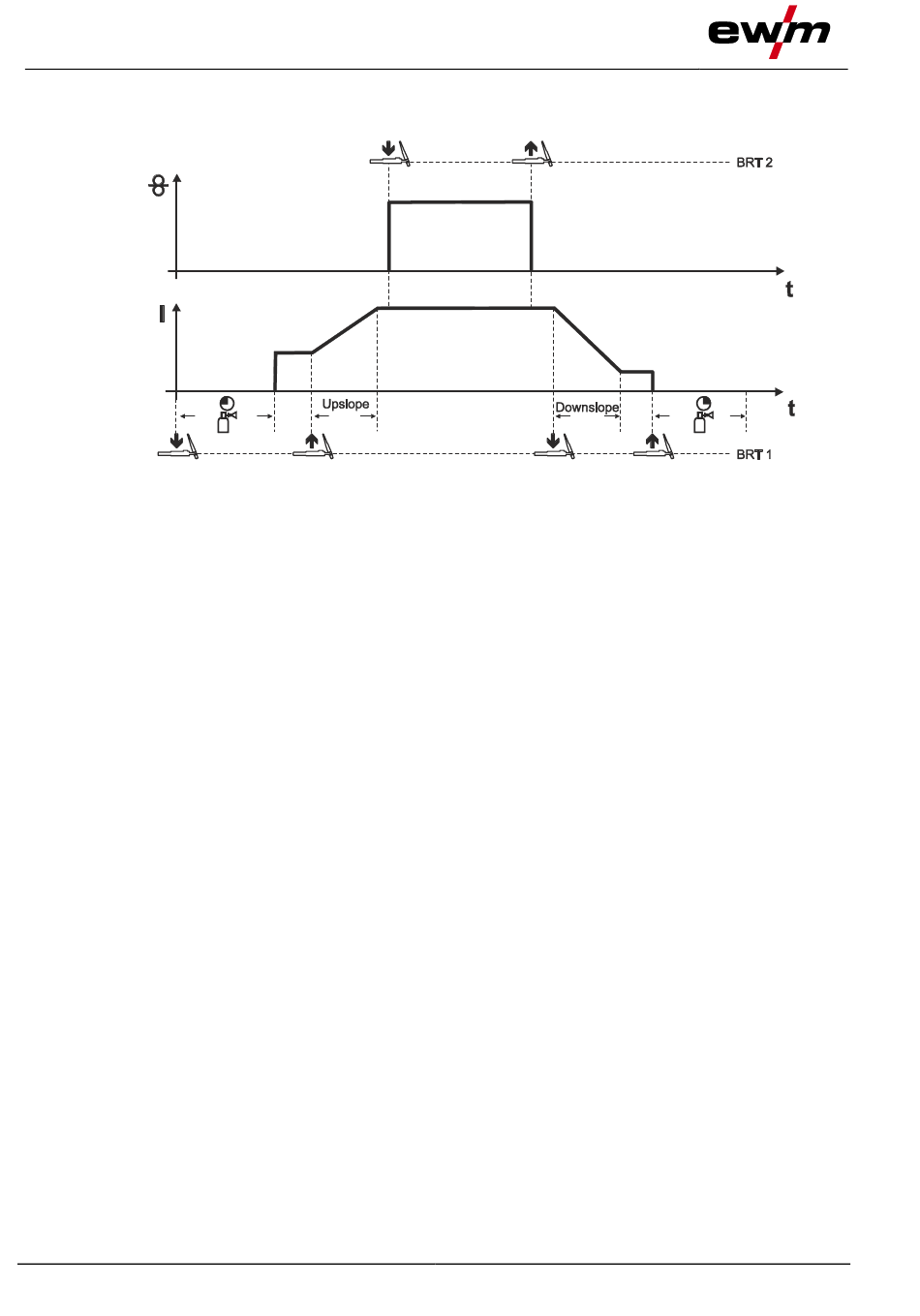

Figure 5-23
