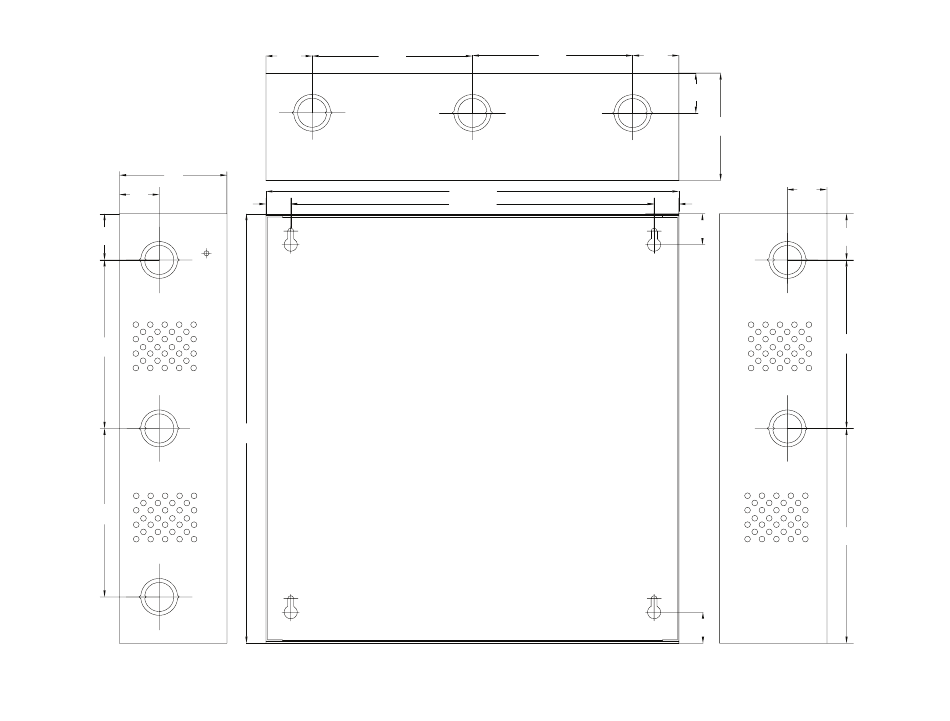

NetWaySP8X - Mechanical Drawing and Dimensions (H x W x D approx.):
13.5" x 13" x 3.25" (342.9mm x 330.2mm x 83mm)
1.40"
4.85"
(36mm)
(123mm)
0.75"
(19mm)
13.0"
(330mm)
4.85"
(123mm)
12.5" (318mm)
11.0" (279mm)
- 9 -
1.40"
(36mm)
1.20"
(31mm)
3.25"
(83mm)
1.20"
(31mm)
0.75"
(19mm)
0.9375"
(24mm)
0.9375"
(24mm)
NetWaySP8WP / SP8WPN / SP8WPX / SP8X / SP8PL / SP8B
