Altronix NetWaySP8WP Installation Manual page 11

11.31"
(287.3mm)
STAINLESS STEEL PIANO HINGE
8.00" (203.2mm)
www.altronix.com

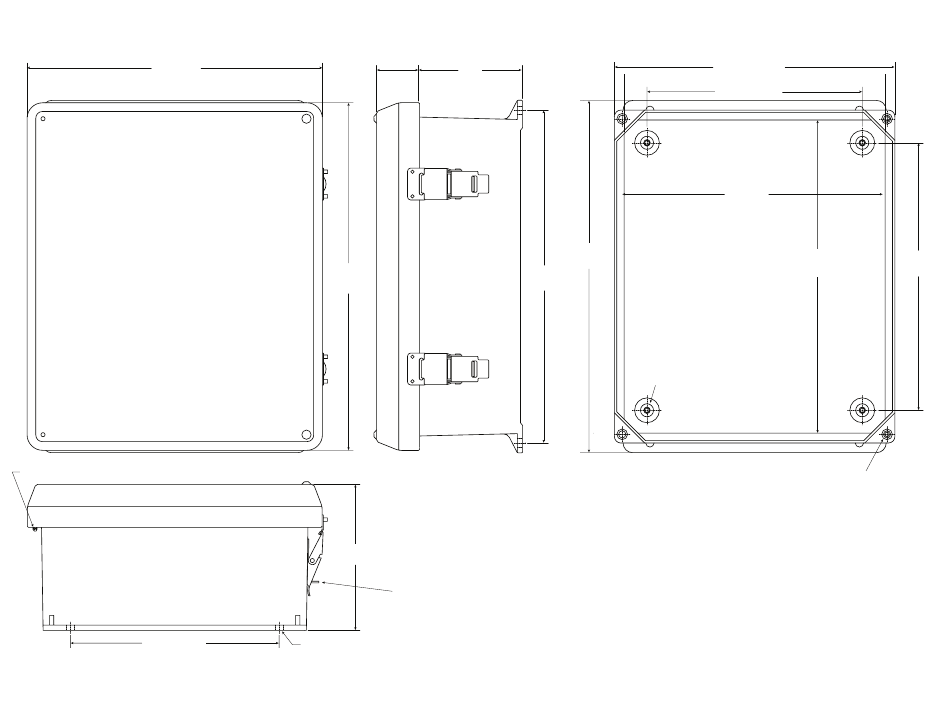

NetWaySP8WP - Mechanical Drawing and Dimensions (H x W x D approx.):
13.31" x 11.31" x 5.59" (338.1mm x 287.3mm x 142mm)
(40.9mm)
13.31"
(338.1mm)
5.59"
(142mm)
Ø 0.32 (8.1mm) MOUNTING HOLE
TYP. 4 PLACES
1.61"
3.96"
(100.6mm)
12.75"
(323.9mm)
PADLOCK LATCH ATTACHED WITH RIVETS
(Ø 0.375" (9.5mm) PADLOCK EYE).
- 11 -
10.75" (273.1mm)
8.25" (209.6mm)
10.00"
(254mm)
13.50"
(342.9mm)
10-32 X 0.375" (9.6mm)
BRASS INSERT (X4)
NetWaySP8WP / SP8WPN / SP8WPX / SP8X / SP8PL / SP8B
12.00"
10.25"
(304.8mm)
(260.4mm)
10-32 X 0.25" (6.4mm)
BRASS INSERT (X2)
