Altronix NetWaySP8WP Installation Manual page 5

DHCP:
A. After selecting DHCP in the IP Address Method field click the button labeled Submit Network Settings. A dialog box will display "New network settings will take effect after the
server is rebooted". Click OK. Next, click on the button labeled Reboot Server. After rebooting the NetWaySP8 will be set in the DHCP mode.
The IP address will be assigned by the router when the NetWaySP8 is connected to the network. It is recommended to have the assigned IP Address reserved
to ensure continued access (see the network administrator).
B. Subnet Mask: When operating in DHCP, the router will assign the subnet mask values.
C. Gateway: Enter the TCP/IP gateway of the network access point (router) being used.
D. HTTP Port: Enter the HTTP port number assigned to the NetWaySP8 module by the network administrator to allow remote access and monitoring. The default inbound port
setting is 80. HTTP is not encrypted and unsecure. Even though HTTP can be used for remote access, it is recommended primarily for use with LAN connections.
E. HTTPS Port: Enter the HTTPS port number assigned to the NetWaySP8 module by the network administrator to allow remote access and monitoring.
The default inbound port setting is 443. Being encrypted and more secure, HTTPS is highly recommended for remote access.
F. Click the button labeled Submit Network Settings. A dialog box will display "New network settings will take effect after the server is rebooted". Click OK.
Heartbeat Timer:
The heartbeat timer will send a trap message indicating that the NetWaySP8 is still connected and communicating.
Setting the Heartbeat Timer:
1. Click the button labeled Heartbeat Timer Setting.
2. Select the desired time between heartbeat messaging in the Days, Hours, Minutes and Seconds in corresponding fields.
3. Click the button labeled Submit to save setting.
Factory Reset Option:
1. Power the unit down. Allow approximately 30 seconds for the unit to power down completely.
2. Depress Factory Reset button on NetWaySP8B while reapplying power to the unit (Fig. 2, pg. 5; Fig. 3c, pg. 6).
Continue holding the button until the LEDs on board go through the start up cycle, then release the button.
3. The unit returns to the original factory settings.
www.altronix.com - 5 -

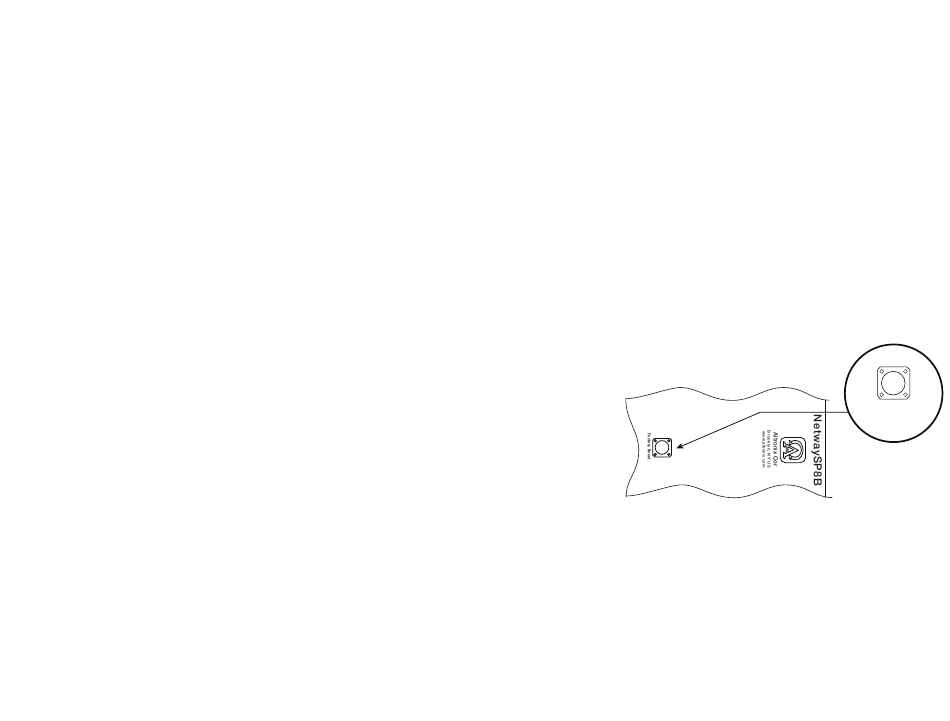

Factory Reset
NetWaySP8WP / SP8WPN / SP8WPX / SP8X / SP8PL / SP8B
Fig. 2
