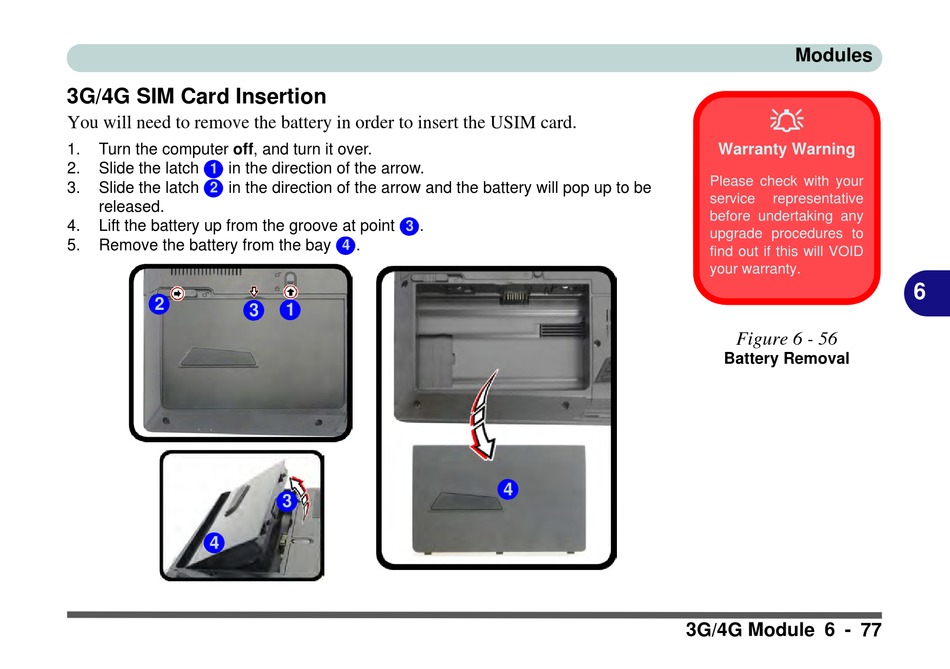

3G/4G SIM Card Insertion

You will need to remove the battery in order to insert the USIM card.
1. Turn the computer off, and turn it over.
2. Slide the latch in the direction of the arrow.
1
3. Slide the latch in the direction of the arrow and the battery will pop up to be
2
released.
4. Lift the battery up from the groove at point
5. Remove the battery from the bay
2
4
.
3
4 .
3 1
3
4
Modules

Warranty Warning
Please check with your
service representative
before undertaking any
upgrade procedures to
find out if this will VOID
your warranty.
Figure 6 - 56
Battery Removal
3G/4G Module 6 - 77
